DF300B

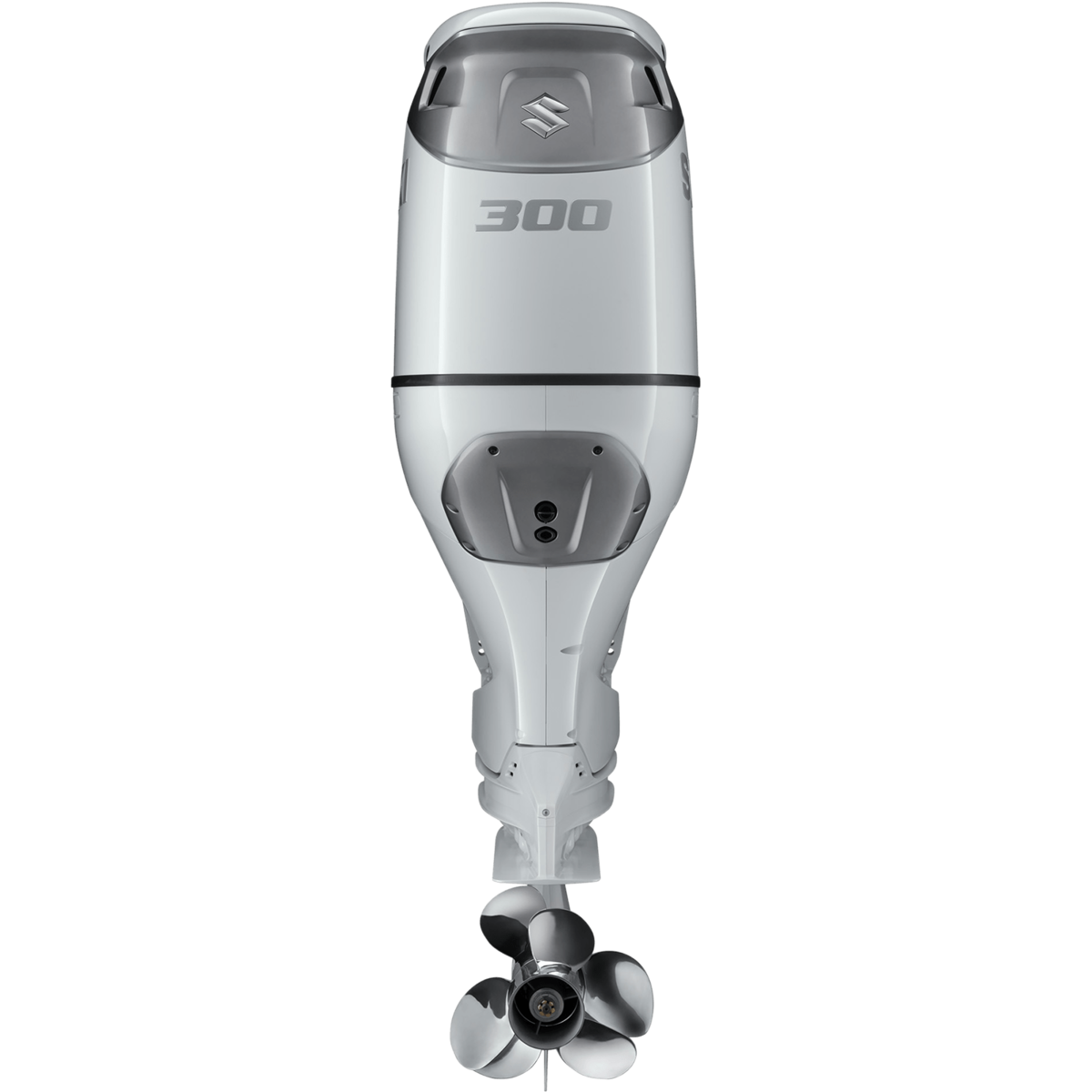

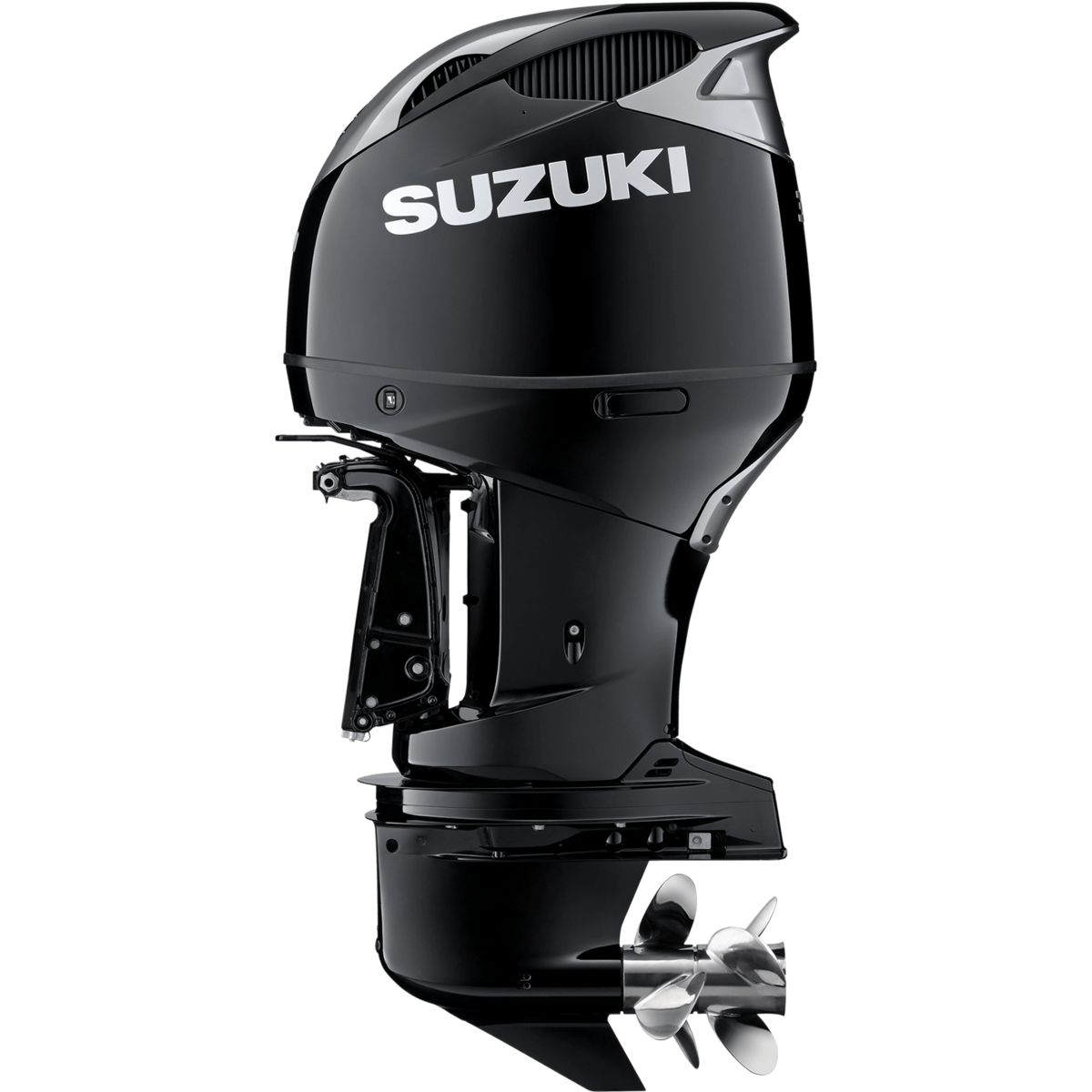

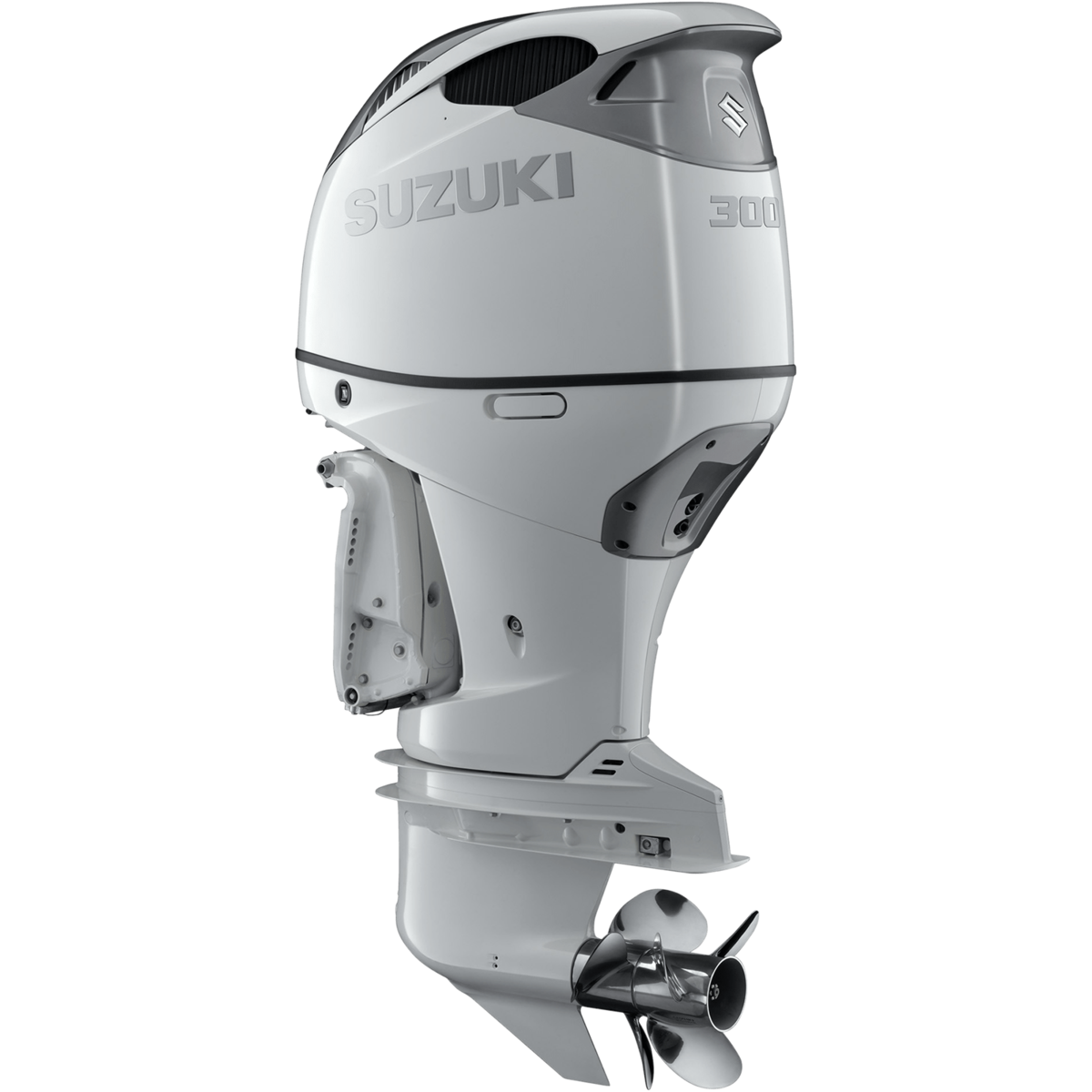

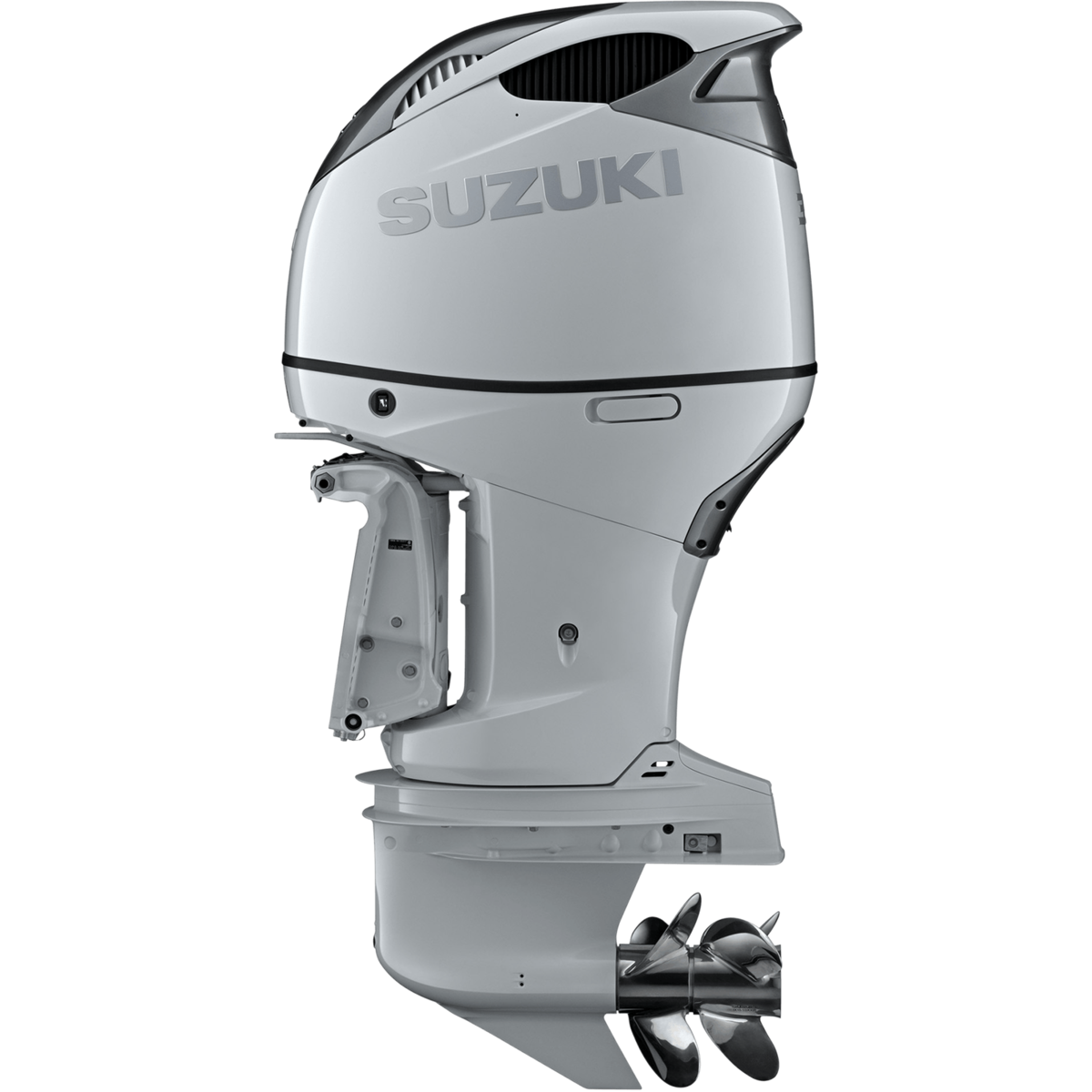

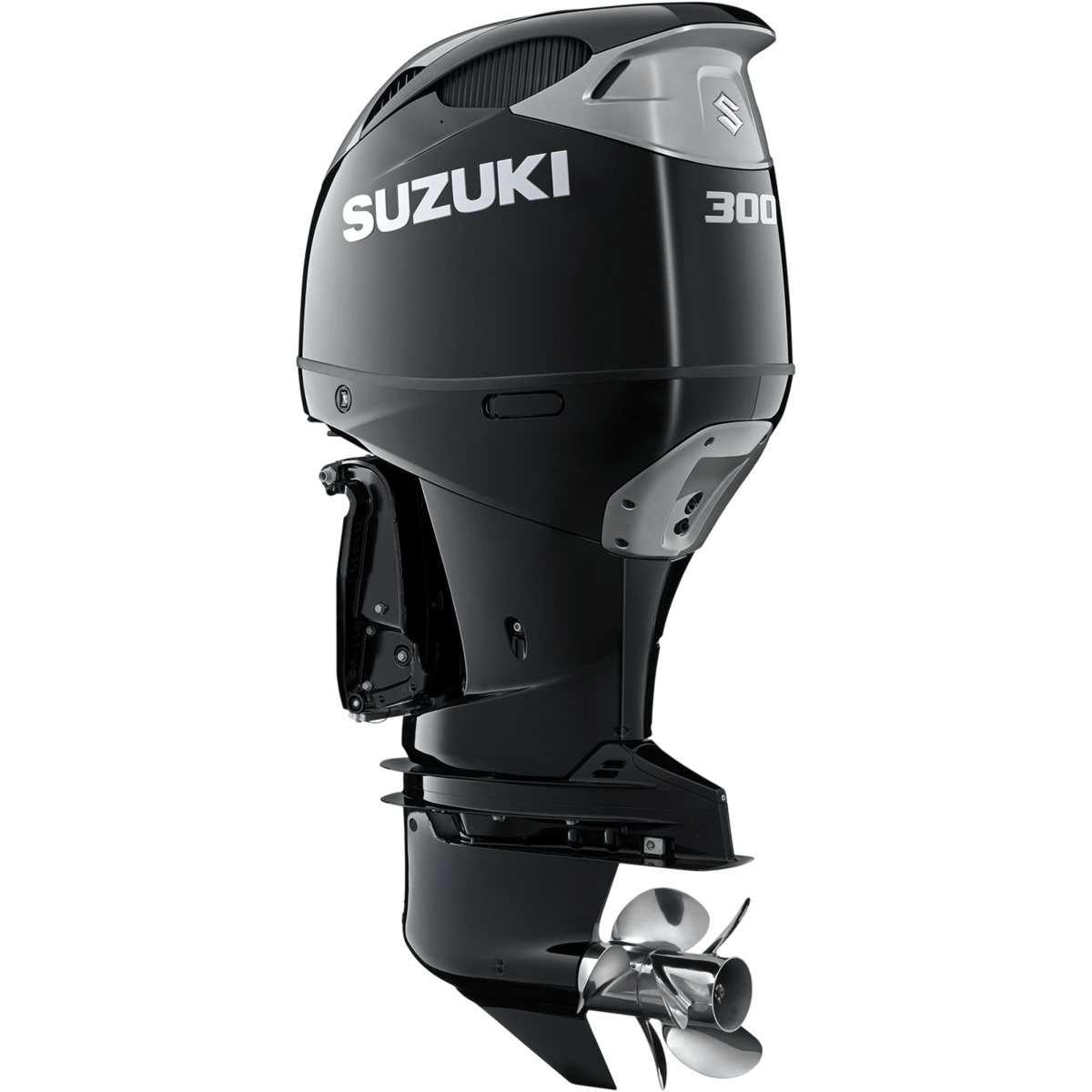

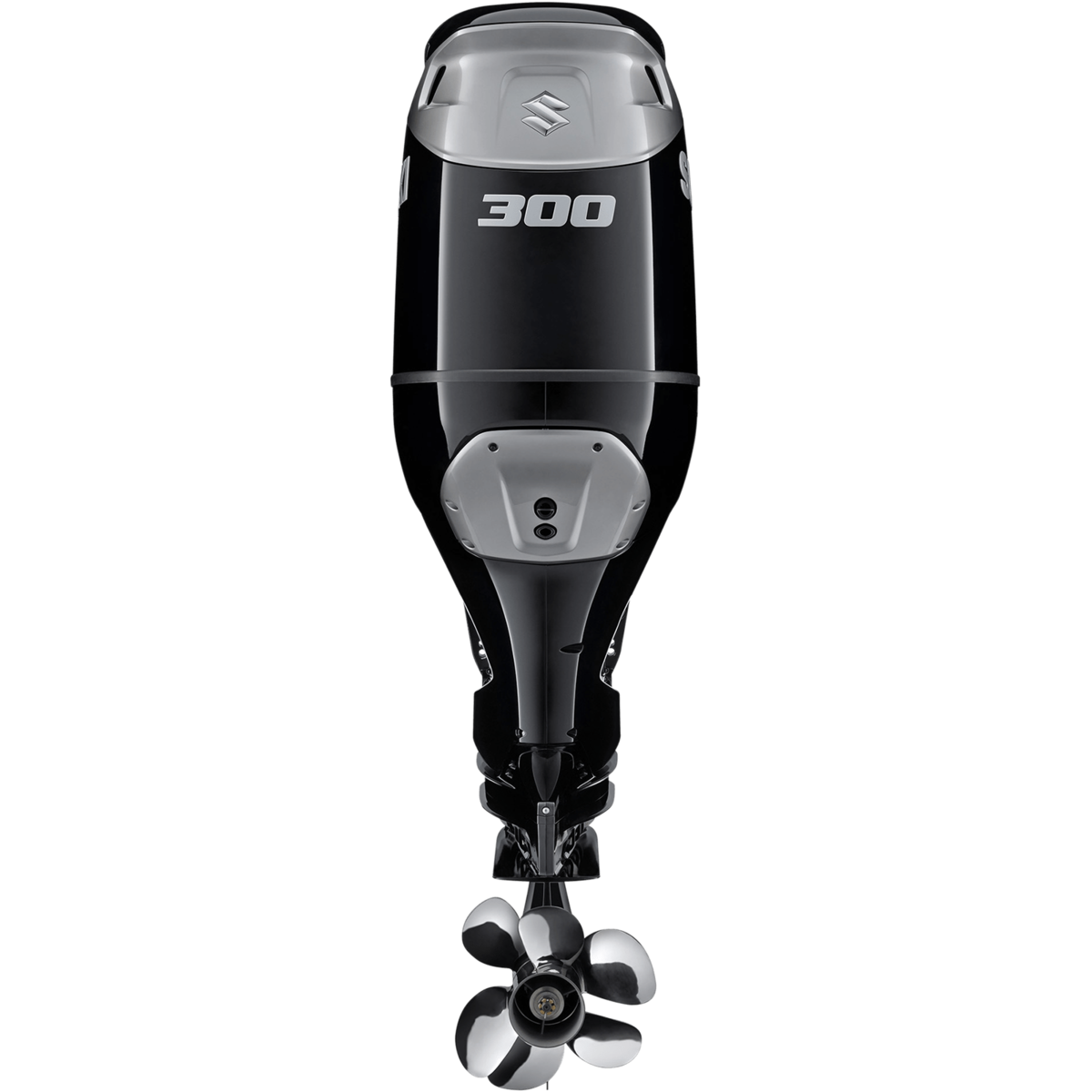

The new DF300B is the world's first 300 hp four stroke outboard with dual contra rotating propellers. The combination of the Suzuki Dual Propeller System and the Suzuki 2-Stage Gear Reduction successfully produce better torque which is engineered especially for heavy boats. Built for every-day use on larger boats, the DF300B has been engineered to run on 87 octane fuel. The DF300B is worthy of carrying on the tradition of the ...."Suzuki's Ultimate 4-Stroke Outboard Motor". *Available in Cool White and Pearl Nebular Black*
Features
- Suzuki Contra Rotating Propellers
- Multi Point Sequential Electronic Fuel Injection
- O2 Sensor Feedback Control System
- Suzuki Precision Control System
- Suzuki Lean Burn Control System
- Variable Valve Timing System
- Two-Stage Gear Reduction System
- Offset Driveshaft
- Direct Ignition
- Spherical Bore Throttle Body
- Water in Fuel Warning System
- Suzuki Easy Start System
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Fully Transistorized Ignition
- Timing Chain
- Troll Mode
- Fresh Water Flushing System
- Power Trim and Tilt
- Tilt Limit
- Streamlined Gear Case
- Two-way low water inlet
- Speedometer Pickup of Gear Case
- Standard Color is Shadow Black Metalic - Now Available in Cool White
- Suzuki Anti-Corrosion System
Body Color | Pearl Nebular Black or Cool White |
---|---|
Recommended Transom Height (inches) | X: 25 XX: 30 With Suzuki Contra Rotating Propellers |
Starting System | Electric - Suzuki Start System |
Weight LBS | X 727, XX 747 |
Engine Type | DOHC 24-Valve |
Fuel Delivery System | Multi Point Sequential Electronic Fuel Dual Injection with Lean Burn and Oxygen Sensor |
No. Of Cylinders | V6 (55°) |
Piston Displacement inches (cc) | 267.9 (4390) |
Bore X Stroke Inches (mm) | 3.74 x 3.82 (98 x 97) |
Maximum Output HP | 300 |
Operating Range (RPM) | 5500 - 6100 |
Steering | Remote |
Troll Mode | Optional Troll Mode - See Dealer |
Oil Pan Capacity quarts (liter) | 8.5 (8.0) |
Ignition System | Solid State Direct Ignition |
Alternator | 12V 54A |
Trim Position | Power Trim and Tilt |
Gear Ratio | 2.29:1 |
Standard Propellers | Conta Rotating Propellers - See Dealer for options |
Propeller Selection | TBD |
