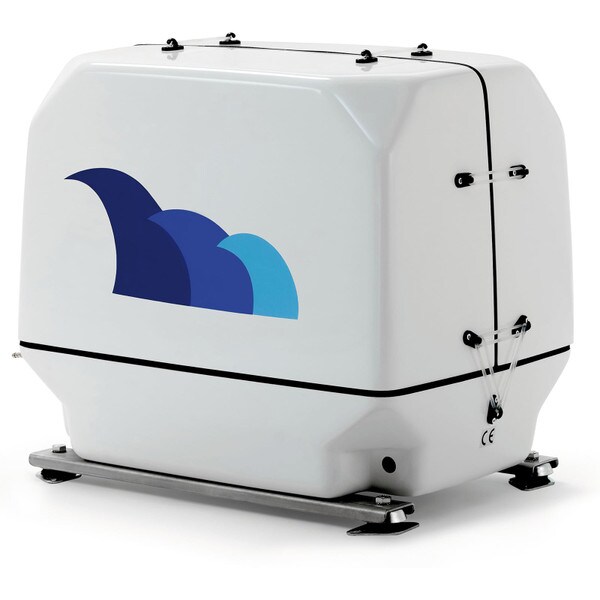

PAGURO 8500

(0) No Reviews yet
SKU: AP08511560SE

PAGURO RANGE: FLEXIBLE AND SILENT PERFORMANCE

VTE’s marine generator sets are the market benchmark for the optimal ratio of performance, quietness and small size. The PAGURO range is very wide to satisfy every need for power and performance, for sailboats and motorboats.

SILENT

Both the engine and the alternator of the Paguro generators are water-cooled: as there is no need for ventilation for cooling, the noise is drastically reduced. In addition, the outer shell has a single small opening for the entrance of the combustion air with a labyrinth path that prevents the noise from coming out; the outer casing is made of reinforced multilayer fiberglass and covered in high density neoprene for maximum sound insulation.

LIGHTWEIGHT AND COMPACT

Each product of the Paguro range is designed and built with ad hoc components to reduce the overall dimensions and exploit the empty spaces inside. Thanks to the VTE technology, each Paguro generator is the compact with the same energy performance with only 440 Lbs of weight and ultra compact dimensions (L35.3xW22.8.1xH25.6], produces 8.5 kW continuous.

SAFE

The VTE generators are equipped with warning lights and a load indicator with a luminous column with LED for an immediate evaluation of the power usage. The panel will stop the unit automatically in case of low oil pressure or overtemperature.

PAGURO 8500
Generator manufacturerVTE Srl - Italy
Alternator typeSynchronous, brushless, capacitor regulation
Continuous electrical power8.5 KW (60 HZ) 8.5 KVA - 8 KW (50 HZ),
Voltage outputSingle-phase 115/230 V (60HZ) 230 V (50 HZ)
Peak Current102 A (50 HZ) / 204 A (60 HZ)
Alternator cooling systemWater-cooled through a water jacket made in stainless steel AISI 316 L
Engine manufacturer and typeLombardini 1404
Cylinders nr.4
Engine speed1800 (60 HZ) / 1500 (50 HZ) RPM
Starting and shut-off system12V electrical starter, remote controlled
Specific fuel consumption0.35 lt/KW/h
Engine cooling systemFresh water with heat exchanger
Cooling pumpSelf priming
AlternatorSynchronous, brushless, capacitor regulation, Water-cooled through a water jacket made in stainless steel AISI 316 L, Battery charger for dedicated starting battery (12V 8A), Insulation Class H
EngineDiesel fueled, 4 cylinders, Four cycle, Fresh water cooling circuit, via heat exchanger
Remote controlRemote control with LCD display
Load indicator, hour meter, frequency / engine speed
Automatic shut down for low oil pressure and/or high temperature
With 15 meters of cable and quick connector
Automatic start (optional)
Soundproof capsuleSoundproof capsule made from multilayer GRP, a high density sound absorbing material and heat insulating foam lining
Split into two halves, the capsule lids enable easy off access for servicing, even in tight spaces
Dual anti-vibration system based on 4 internal soft shock absorbers and 4 firm captive engine mounts outside the capsule
Dimensions L x W x H (in)35 X 22.8 X 25.6
Weight (capsule included) (lbs)440
Noise level dB(A) 7 mt49 dB(A)
