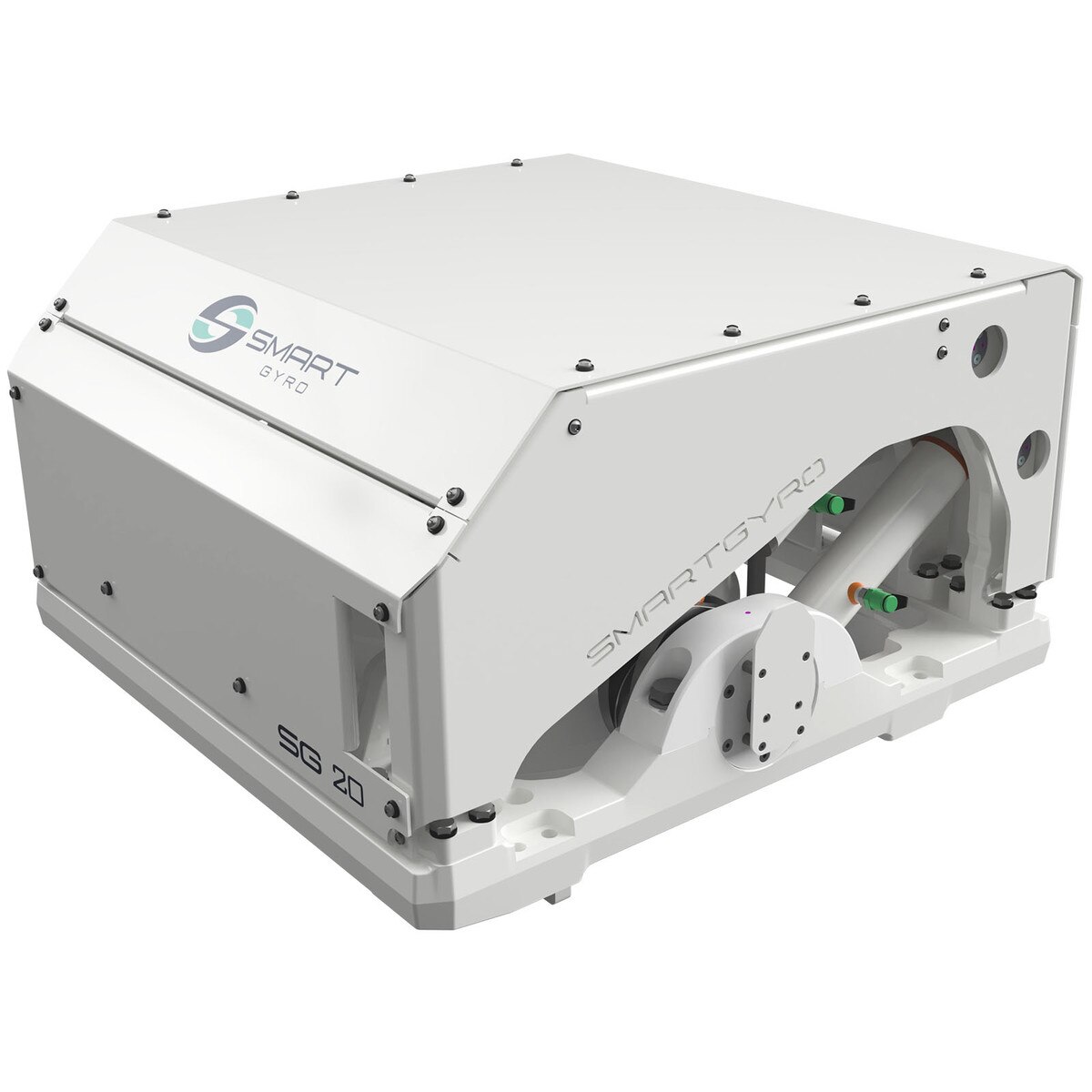

SG20

(0)No Reviews yet
SKU: 102AS402

Smartgyro SG20 is the gyro stabilizer of choice for boats from 45-55 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.

Target Boat45 – 55’ or up to 25 tons
Anti-Rolling Torque15.500 Nm at max. rated speed
Envelope Dimensions0.76 x 0.77 x 0.65 m [29.9 x 30.3 x 25.6 in]
Maximum Rated Speed9.500 RPM
Input Voltage (AC)115V nominal, 50/60 Hz, single phase, 220V nominal, 50/60 Hz, single phase
Weight495 kg [1091 lbs]
Angular Momentum5.900 Nms at max. rated speed
Input Voltage (DC)12 Vdc
