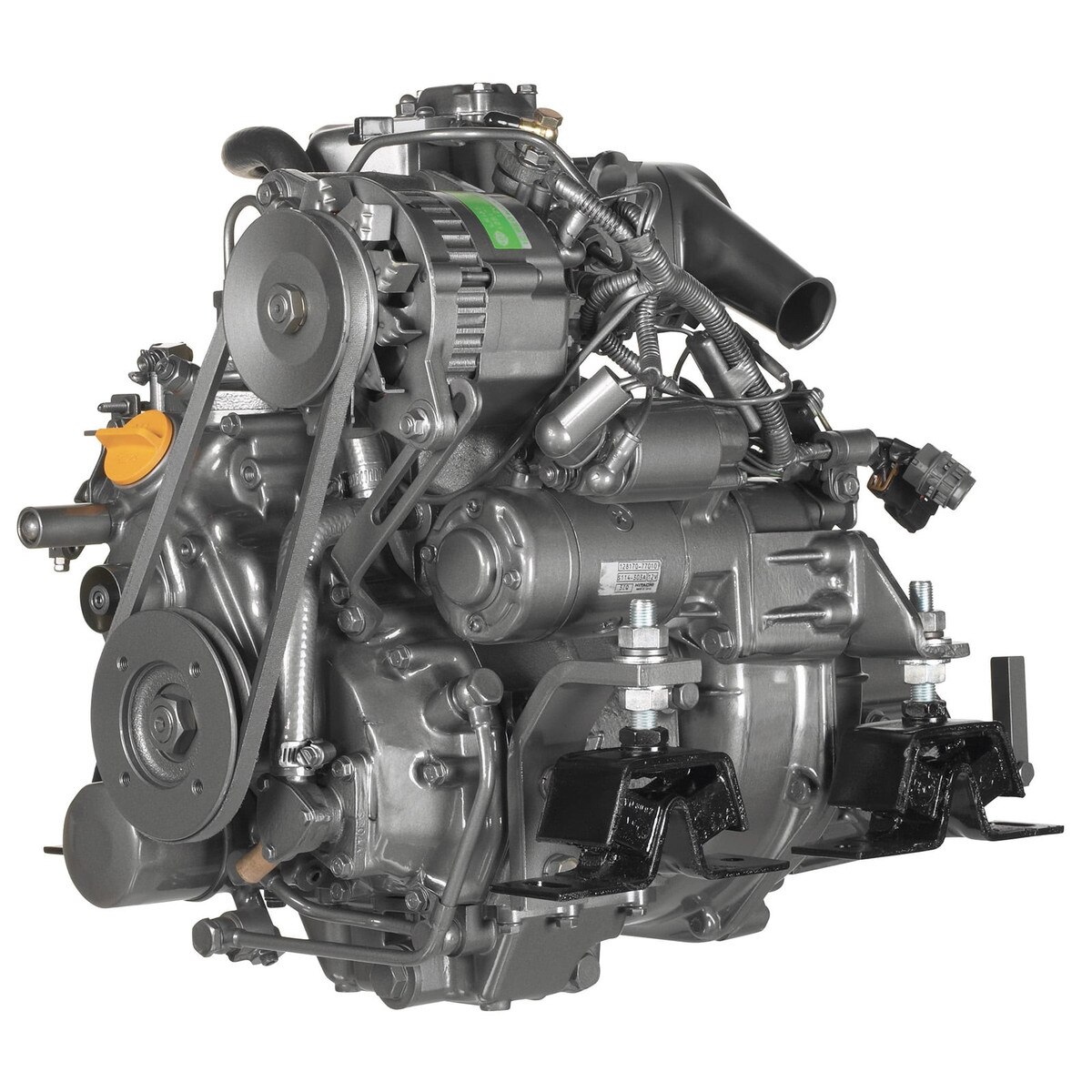

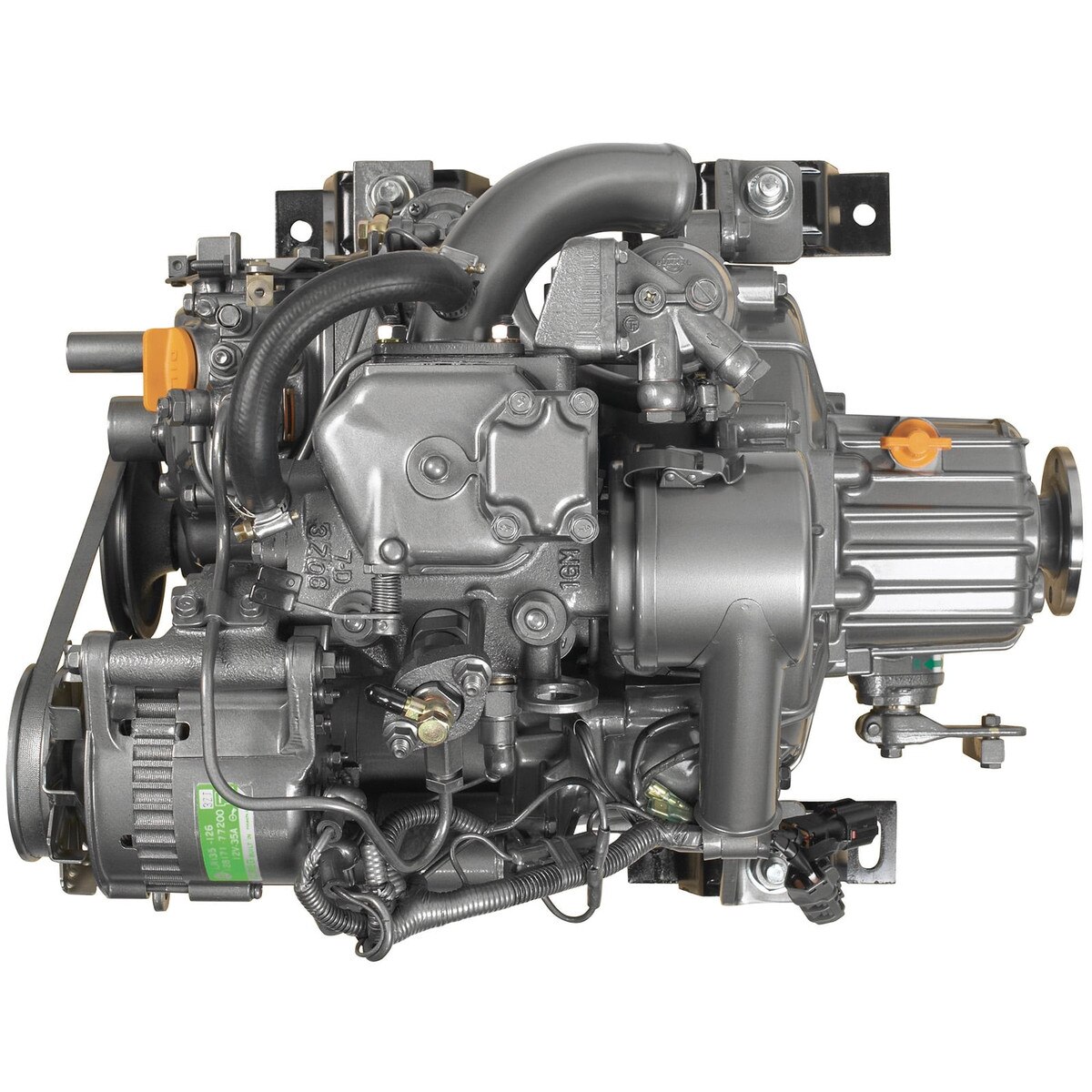

1GM10 10HP

(0) No Reviews yet

YANMAR sailing and smaller craft engines deliver the high-end performance and unequaled reliability associated with over 100 years of innovation. Bringing common rail technology to smaller recreational and light duty commercial applications, YANMAR exclusively provides the benefits of fuel efficiency, added power, and cleaner operation to sailing and smaller crafts. With the largest global support network in the marine engine industry and delivering 5x Best in Class features associated with common rail technology, YANMAR engines have become the global standard in sailboat and small craft propulsion.

Rated output6.6 kW / 9 mhp
Rated Speed3600 rpm
Displacement0.318 L [19.41 cu in]
Cylinders1 vertical
Bore x Stroke75 mm x 72 mm
Type4-stroke, vertical, water-cooled diesel engine
Emission complianceEU: RCD 2, BSO II, EMC. US: EPA Tier 2.
Warranty2 + 3 year extended warranty

For the latest manuals, product guides, spec sheets and more, please visit Yanmar Marine's product page.

SD25

  • Corrosion Protection
  • Reliable
  • Simple & Efficient
  • Whisper Quiet & Low Vibration
  • Easy Maintenance
  • User Friendly
  • Extra Protection

TypeSaildrive
Engine type [mhp]9 - 29
Reduction Ratio (fwd/asn)2.64/2.64
Reduction gear systemConstant mesh gear with dog clutch
Dry weight [kg - lbs]30 kg [66 lbs]

B20 & C30 PANELS

The B20 & C30 are YANMAR’s start/stop tachometer panels which are compatible with YM and JH series mechanical YANMAR engines. The B20 & C30 panels also show some engine alarms and can drive an optional fuel level gauge.

*YM series engines only available with B20 panels, they are not available with the C30 panels.

B Panel: Includes Tachometer and pre-heat control

C Panel: Includes Tachometer, oil pressure, and water temperature gages and pre-heat control

Basic parameters shown:

  • Engine hours
  • Back light
  • Battery voltage
