3JH40 40HP
40 mhp of Common-Rail Power for Saildrive and Shaft Installations

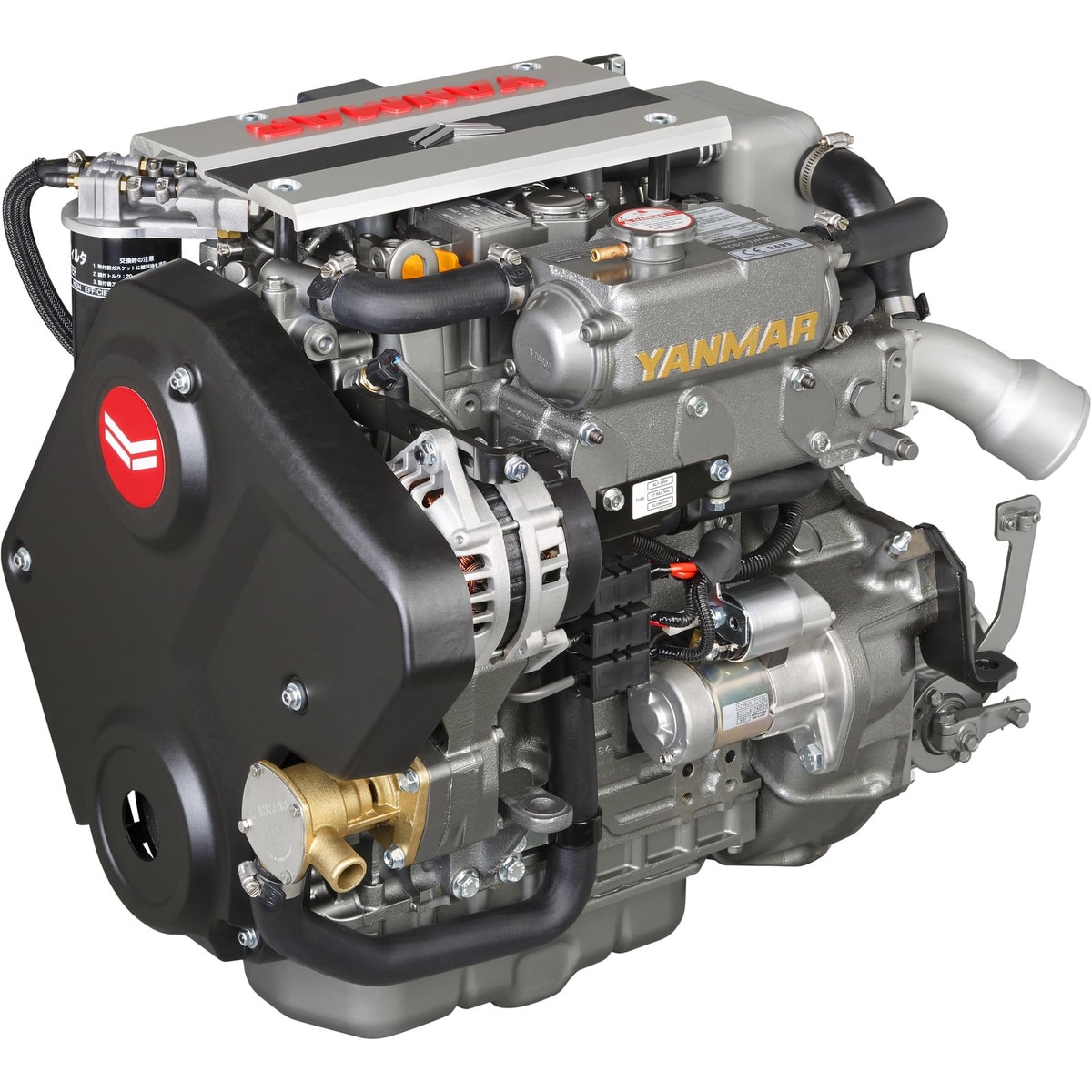

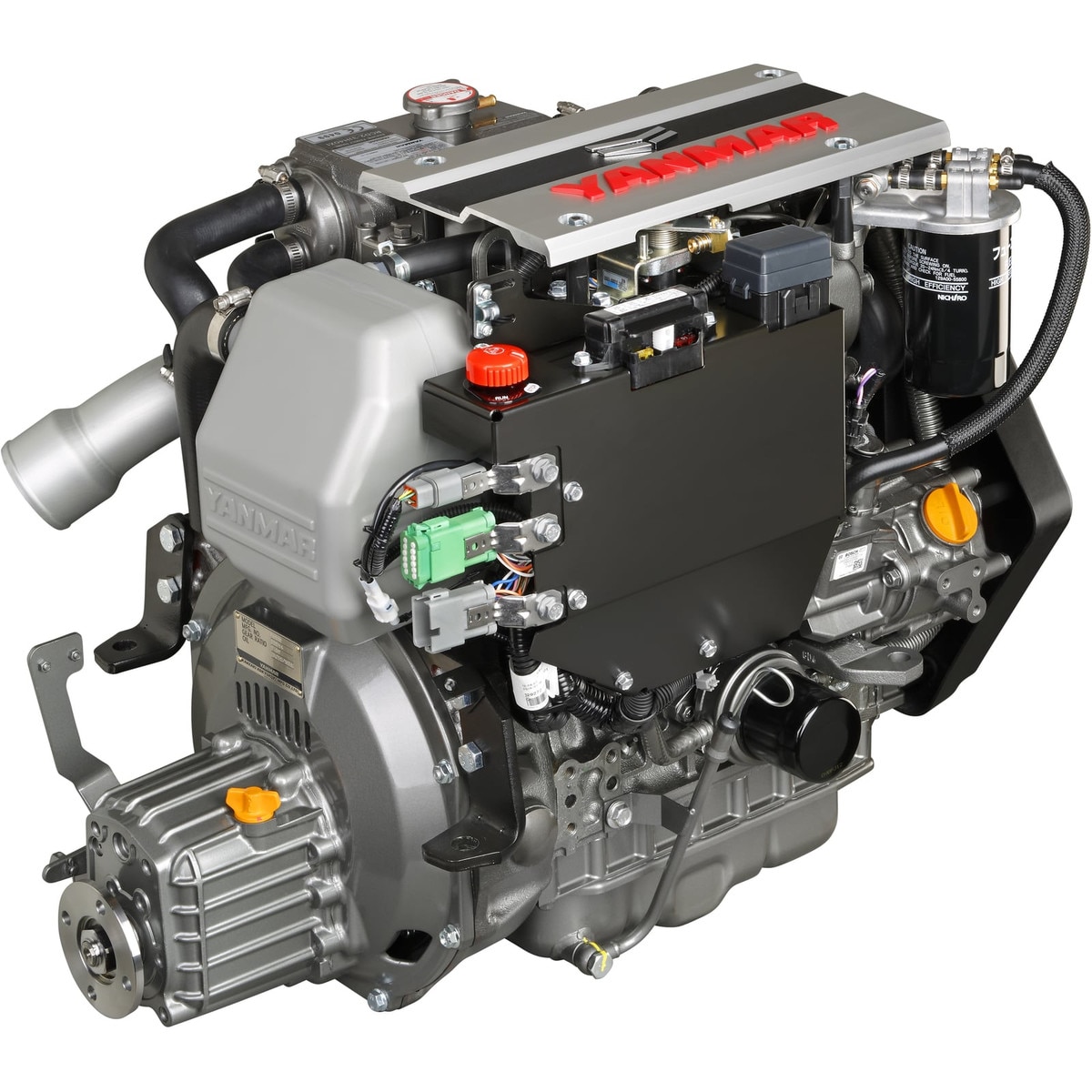

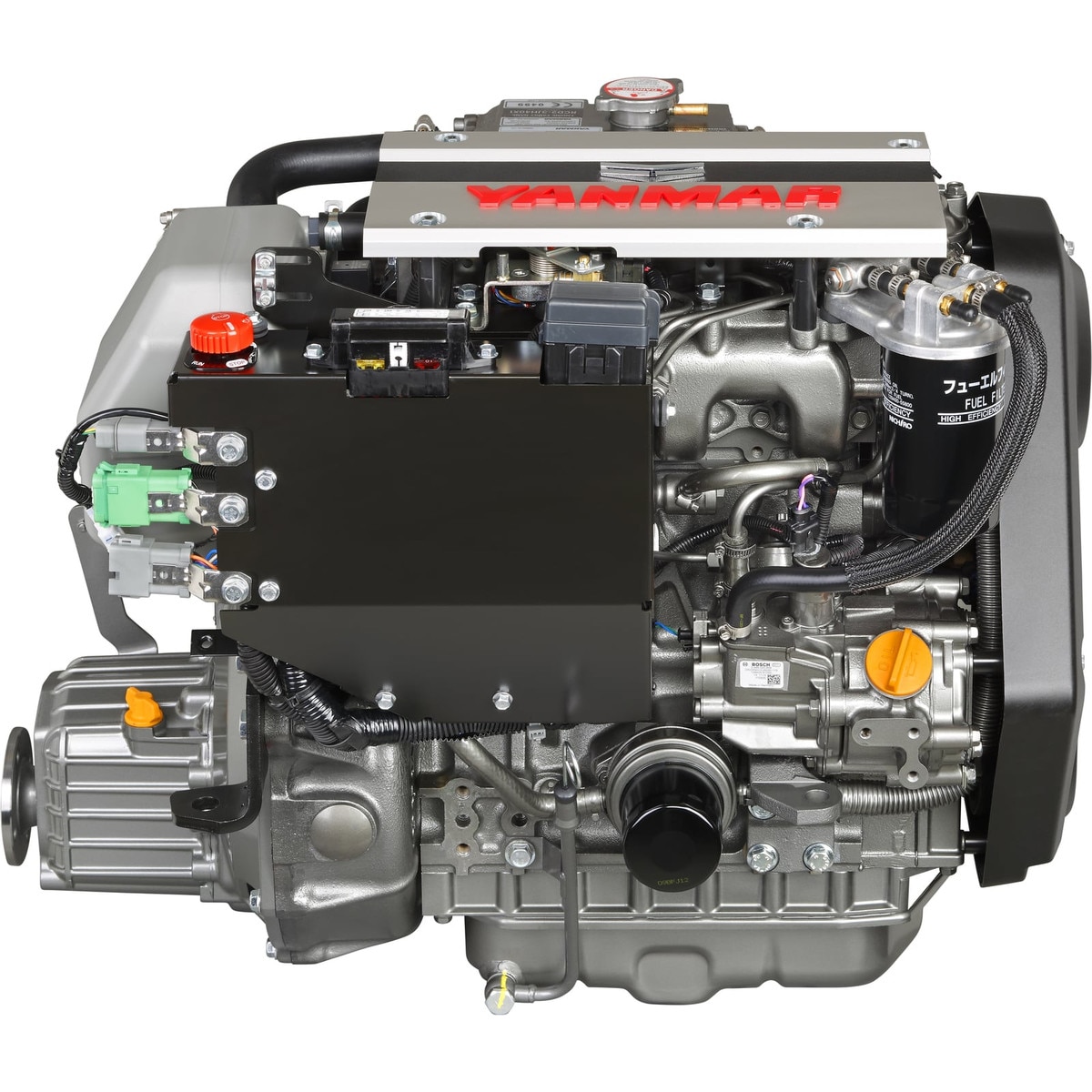

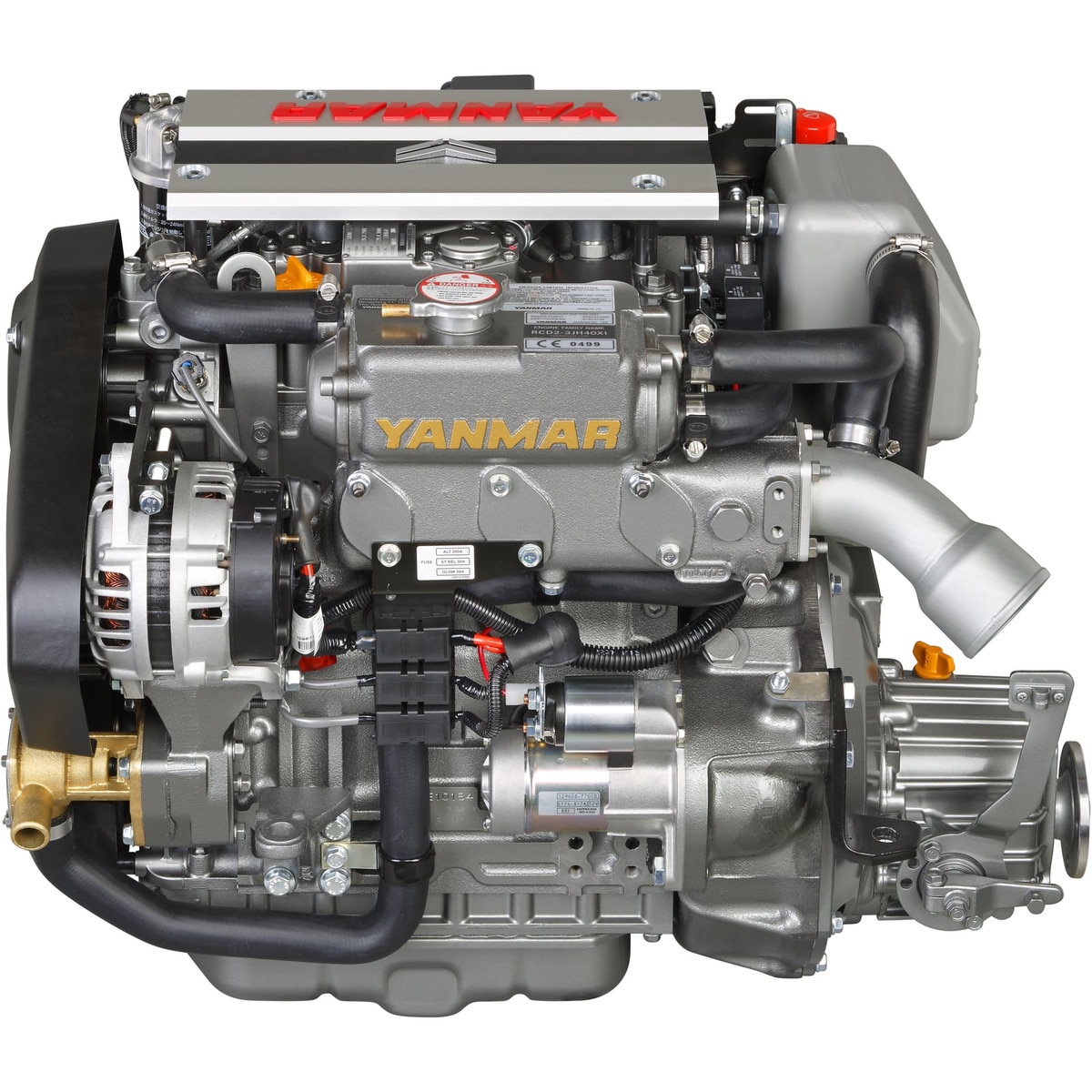

The YANMAR 3JH40 is a 1.642 L, three-cylinder marine diesel rated at 29.4 kW / 40 mhp at 3000 rpm, the entry point to the JH-CR series, which covers 40 to 110 mhp in five output models. The JH-CR series sets the global standard in sailboat and small craft propulsion, for sailboats, smaller motorboats and light-duty commercial vessels. Built on YANMAR's long-established TNV industrial block with a custom-built Bosch common-rail fuel injection system, it brings common-rail technology to sailboats and smaller craft, and its footprint, similar to previous models, makes it an ideal choice for repowers. YANMAR built the series around five things: clean, interconnective, quiet, powerful and fuel efficient.
Powerful and fuel efficient. Bosch common-rail direct injection gives a compact design with impressive power output, with fuel consumption optimized for longer journeys. YANMAR offers four power ratings across the one 4JH-CR design, to fit a wide variety of boat sizes and applications.
Clean and quiet. The 3JH40 meets EPA Tier 3 and EU RCD 2 and produces minimal emissions thanks to its advanced common-rail technology, and is engineered for minimal noise and smooth operation.
Interconnective. Seamless integration with marine electronics and systems: mechanical controls come as standard, with the option to upgrade to electronic control through the YANMAR VC20 or VC10 vessel control systems, and the YD42 and YD25 displays. The 3JH40 is offered with the YANMAR SD60 saildrive or, for shaft drive, with Kanzaki KM35P or KM35A gears. It is certified for recreational and light-duty commercial applications and is USCG lifeboat approved, with a SOLAS option.
- Powerful: 29.4 kW / 40 mhp at 3000 rpm, compact design with impressive power output
- Fuel efficient: Bosch common-rail injection optimized for fuel consumption on longer journeys
- Clean: meets EPA Tier 3 and EU RCD 2, minimal emissions
- Quiet: engineered for minimal noise and smooth operation
- Interconnective: mechanical controls standard; VC20 or VC10 vessel control system optional
- SD60 saildrive or shaft drive with Kanzaki gears, 192 kg / 423 lb dry weight without gear
| Specification | Value |
|---|---|
| Rated output | 29.4 kW / 40 mhp |
| Rated speed | 3000 rpm |
| Configuration | 3-cylinder in-line, 4-stroke, vertical, water-cooled diesel |
| Displacement | 1.642 L / 100 cu. in |
| Bore x stroke | 88 mm x 90 mm / 3.46 in x 3.54 in |
| Aspiration | Naturally aspirated |
| Fuel system | Direct injection, Bosch common rail |
| Cooling | Fresh water cooled, centrifugal pump; seawater by rubber impeller pump |
| Alternator | 12 V, 125 A |
| Dry weight, without gear | 192 kg / 423 lb |
| Dry weight, with KM35P gear | 204 kg / 450 lb |
| Dry weight, with KM35A gear | 205 kg / 452 lb |
| Dry weight, with SD60 saildrive | 236 kg / 520 lb |
| Dimensions, L x W x H | 774 mm x 580 mm x 632 mm |
| Drive options | SD60 saildrive; shaft (KM35P / KM35A gears) |
| Controls | Mechanical standard; VC20 vessel control system optional |
| Emissions compliance | EU: RCD 2, BSO II, EMC. US: EPA Tier 3, EPA-C. |
Spec sheets
Brochures
Manuals
Drawings
- 3JH40 Bobtail Installation Drawing (PDF, on yanmar.com)
- 3JH40 with KM35P Gear Installation Drawing (PDF, on yanmar.com)
- 3JH40 with KM35A Gear Installation Drawing (PDF, on yanmar.com)
- 3JH40 with SD60 Saildrive Installation Drawing (PDF, on yanmar.com)
- All 3JH40 drawings in DWG, DXF and STP formats, on yanmar.com
SD60 saildrive

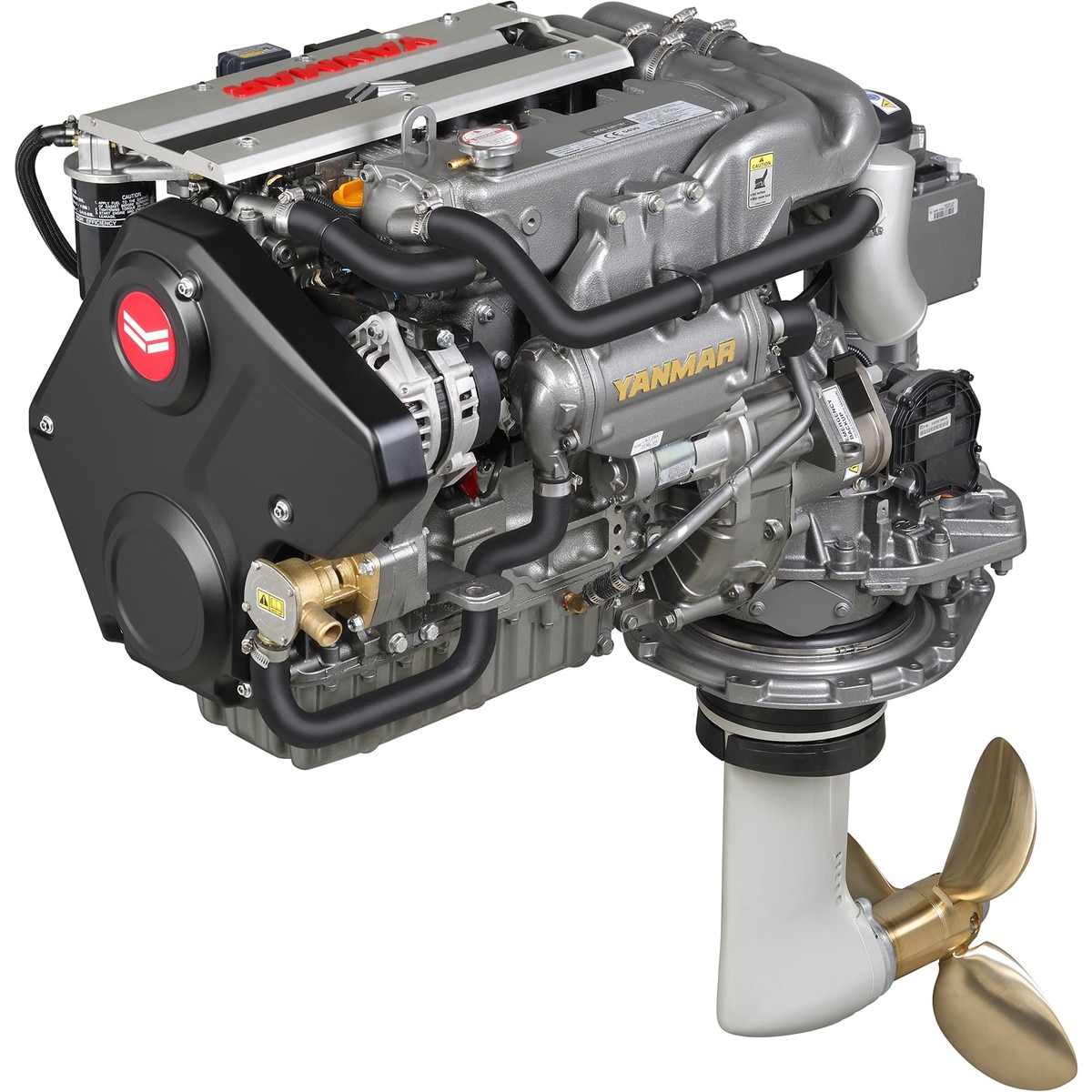

YANMAR designed and developed the SD60 saildrive to match its 3JH40, 4JH45, 4JH57 and 4JH80 engines, with two bell housing sizes to cover the range. It connects directly to the engine's dedicated marine housing without adapters or couplings, which keeps the propulsion system compact and reduces rotational mass and vibration, and its oil can be changed without hauling the boat out.
| Specification | Value |
|---|---|
| Type | Saildrive |
| Clutch | Mechanical multi-disc |
| Reduction ratios | 2.23, 2.49 |
| Dry weight | 44 kg / 97 lb |
Shaft drive gears
For shaft-drive installations the 3JH40 is supplied with the marine gears below. Both gears use a mechanical cone clutch. Other marine gearboxes and configurations are available on request; ask Mastry for the right match to your hull.
| Gear | Type | Reduction ratios | Gear dry weight |
|---|---|---|---|
| Kanzaki KM35P | Parallel | 2.36 | 12 kg / 26 lb |
| Kanzaki KM35A | 7 degree down angle | 2.61 | 13 kg / 29 lb |
VC20 vessel control system
YANMAR's second-generation vessel control system for all electronically managed YANMAR engines. A J1939-based CAN-bus system with dedicated engine networks, a standard emergency back-up panel and NMEA connections for other onboard systems. Controls every engine and transmission function and displays engine alarms and diagnostic codes.

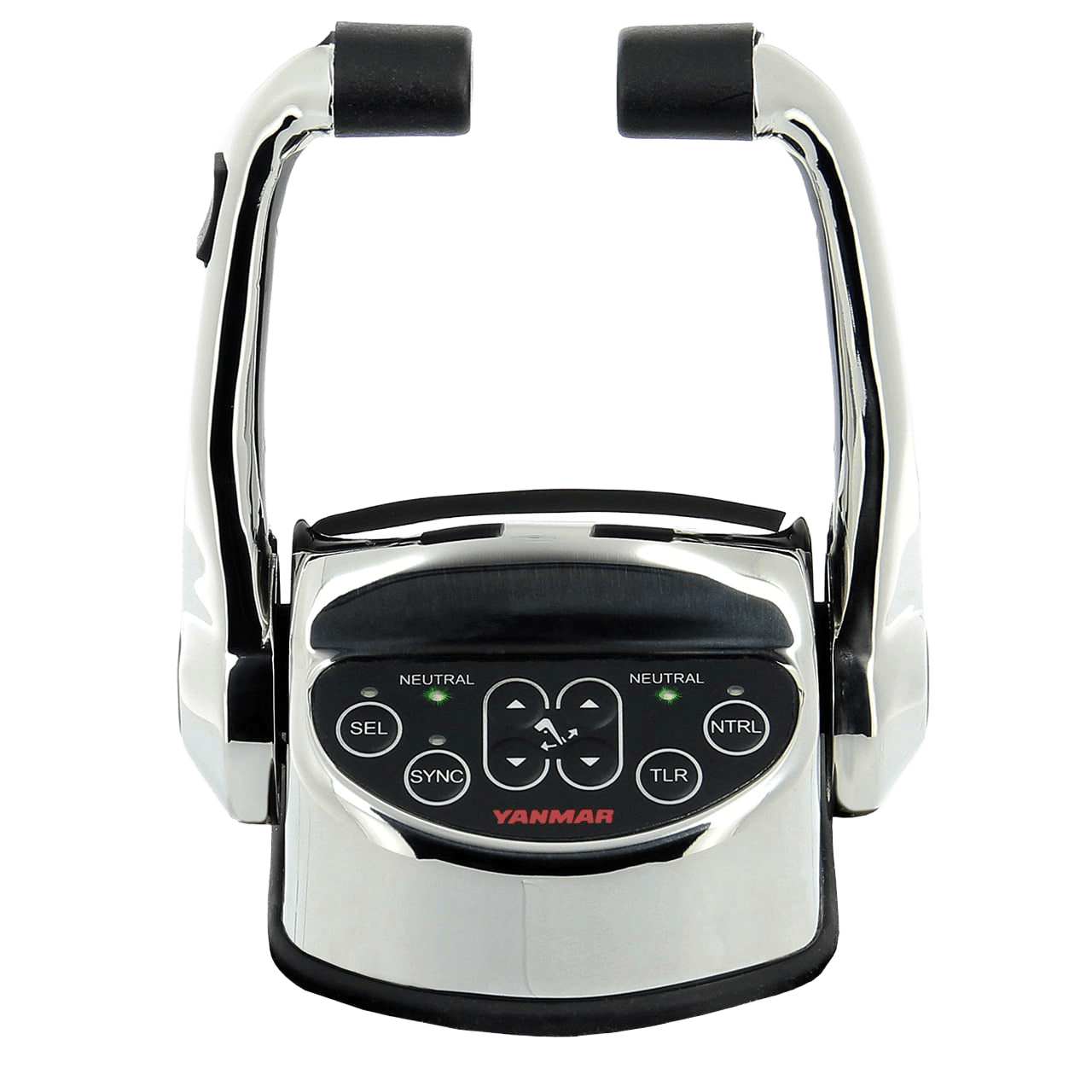

VC10 vessel control system
YANMAR's vessel control system for electronically managed YANMAR engines. A J1939-based CAN-bus system with a dedicated network to each engine, a standard emergency back-up panel and built-in NMEA connections for other onboard systems. Supplied with controls, full-color digital displays with NMEA2000 or J1939 gauge output, and all cabling; controls every engine and transmission function and displays engine alarms and diagnostic codes.
YD42 display
Compact full-color multi-function display in modern glass styling. Shows engine speed, load, oil pressure and coolant temperature alongside wind, speed, depth and AIS data, and reads YANMAR engine alarm and diagnostic codes.
YD25 panel
Compact switch panel with a 2.5 inch LCD showing all YANMAR engine data, alarms and diagnostic codes. Integrates with multifunction displays and glass helms, or serves as a standalone instrument on smaller vessels.
B25 and C35 panels
Start/stop tachometer panels for JH-CR and 4LV engines. The B25 carries a tachometer only; the C35 adds water temperature and oil pressure gauges. Both show engine hours, battery voltage, throttle position, engine load, fuel rate, intake air pressure and fuel temperature.
