4LV170 170HP

(0)No Reviews yet
SKU: web4LV170

YANMAR powerboat engines deliver outstanding power, speed, efficiency, and reliability. Our engines have proven to be the ideal solution for multiple applications, commercial and recreational, given a customizable options range - available for shaft, stern, and jet drives, with SOLAS and semi 2-pole option, high power primary and secondary alternators, purpose-built plug & play interconnectivity to any NMEA or J1939 device, and more. YANMAR engines deliver 5x Best in Class product features with the added benefit of the best global support network in the marine industry.

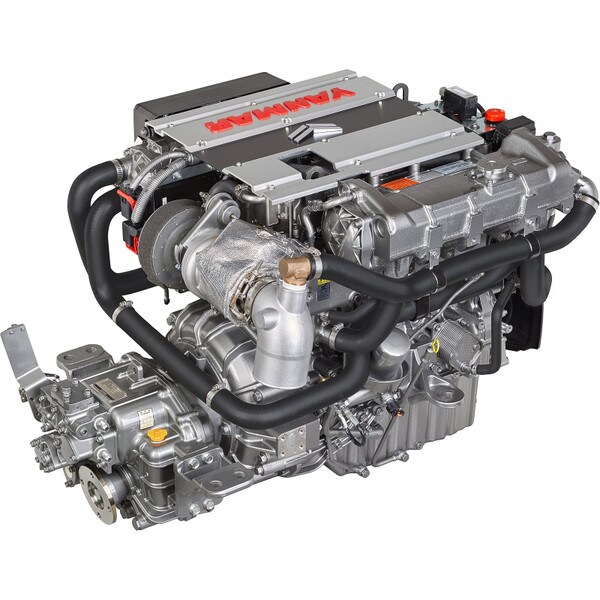

Combining the latest engine technologies, including new generation common-rail systems and the most advanced, complete combustion in YANMAR’s line, the 4LV Series is undoubtedly cleaner, quieter, and produces more torque & acceleration than any other engine in its class.

The 4LV proves to be an extremely efficient engine without any compromise on quality. Featuring Thermo Swing Wall Insulation Technology and incorporating the newest system in common-rail technology, the mid-range engines deliver maximum performance and reliability, while maintaining minimal fuel consumption and exceptionally low noise & emission levels. By exceeding the strict EPA Tier 3 and EU RCD Stage 2 emission regulations, the engines feature virtually smoke and odor free operation.

Equally, the 4LV doesn’t disappoint in performance. The 2.8 L displacement delivers a powerful low-end torque performance. This results in a stunning acceleration and really sets these engines apart from others in their power range.

To ensure support of advancing marine technologies, direct connectivity to NMEA and J1939 CAN-bus networks has been purpose engineered into the 4LV range, allowing future-proofed integration to any multifunction bridge display.

Over and above the impressive performance, the resounding benefit of the 4LV Series remains its versatility. Fulfilling needs across all boating applications, the 4LV is the perfect solution for new builds and repowering. It is compact and easily fits into previous model footprints. An ideal installation for sailboats, motor boats, or light commercial vessels, the 4LV range will be complemented by a choice of YANMAR’s expanding controls, including the VC10 electronic control panel, providing real time diagnostics, and the JC20 joystick system, providing innovative maneuvering solutions.

Rated output125 kW / 170 mhp
Rated Speed3500 rmp
Displacement2.755 L [168 cu in]
Cylinders4 in-line
Bore x Stroke92 mm x 103.6 mm
Type4-stroke, vertical, water-cooled diesel engine
Emission complianceEU: RCD 2, IMO. US: EPA TIER 3.

For the latest manuals, product guides, spec sheets and more, please visit Yanmar Marine's product page.

ZT370

POWER & PROPULSION

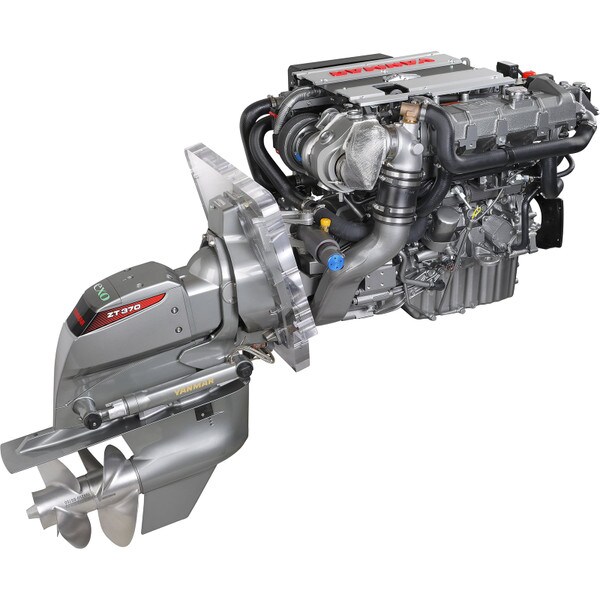

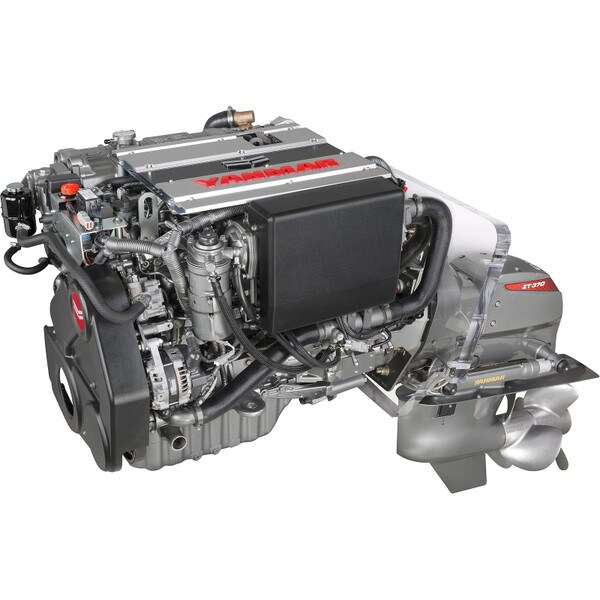

Designed, built and proven by Yanmar, the all-new ZT370 sterndrive is the perfect match for Yanmar’s LV and LP marine engine series. The ZT370: unsurpassed for new installations and ideal for repowering.

The propulsion system is the heartbeat of your boat. It needs all of those renowned Yanmar qualities of performance, reliability, durability and respect for nature. Now, high technology engines and leading edge drives are available in an all-Yanmar power package, brought together for the very best in boating enjoyment.

The quiet, hydrodynamic ZT370 has a new type of hydraulic clutch for exceptional smoothness, precision forged gears for extra-long life, two counter-rotating propellers for superb acceleration and tight-hold tracking, and large rudder dimensions for superior handling on single and twin engine boats. All with low noise, corrosion protection and minimized maintenance.

ZT370: THE CHOICE IS YOURS

  • New engines or repowering
  • Single or dual installation
  • Also available with integrated electromagnetic shift
  • In combination with YANMAR's all new VCS electronic system, you can use the newly developed joystick for easy maneuvering


TypeSterndrive
Engine type [mhp]150 - 370
Reduction Ratio (fwd/asn)1.65/1.65 1.78/1.78 1.97/1.97 2.18/2.18
Reduction gear systemHydraulic actuated multi-friction disc clutch
Dry weight [kg - lbs]112 kg [247 lbs]

YD25

Compact switch panel with a 2.5” LCD display to view all YANMAR engine data, alarms, and diagnostic troubleshooting codes. Integrates with multifunction displays and glass helm systems, or can function as a standalone instrument display aboard smaller vessels.


YD42

Smart, multi-purpose instrument featuring a compact full color display, modern glass styling, with the ability to read and display YANMAR engine alarm and diagnostic troubleshooting codes. View engine speed, engine load, oil pressure, coolant temperature, wind, speed, depth, AIS data and more at a glance.


B25 & C35 PANELS

The B25 & C35 are YANMAR’s start/stop tachometer panels which are compatible with JH-CR and 4LV electronic YANMAR engines. These panels show basic parameters using traditional gages and have capability to show additional parameters, including Diagnostic Troubleshooting Codes (DTCs) in the smart tachometer window. The smart window can be programmed to show various other engine parameters as needed. These panels can also drive an optional fuel level gage.

B Panel: Includes Tachometer only

C Panel: Includes Tachometer, water temperature gauge, oil pressure gauge

Basic parameters shown:

  • Engine hours
  • Back light
  • Battery voltage
  • Throttle Position
  • Engine Load
  • Fuel Rate
  • Intake Air Pressure
  • Fuel temperature


JC-10

JC10 is YANMAR’s joystick control system for twin sterndrive applications. The JC10 is an in-house developed control system for YANMAR 8LV and 4LV engine models in twin installation configuration in combination with YANMAR ZT370 sterndrives and VCS controls. It is easily installed in new boats and is also quickly retrofitted to existing YANAMR 8LV and 4LV sterndrive installations.

JC10 main features:

  • Boost mode and separate Docking mode for optimal response
  • Quick, smooth, and shock-free shifting
  • Electronic progressive steering
  • Sideways and Diagonal movement
  • 360° rotation
  • Optional second and third station kits
  • Optional remote station installation


JC-20

The YANMAR JC20 inboard joystick system is suitable for every motorboat, powerboat, and catamaran equipped with twin YANMAR common rail engines.

How it works
Simply press the joystick gently in the desired direction of movement and the JC20 will automatically engage the bow thruster and adjust the speed of the two shaft engines to maneuver the bow precisely where needed.


The VC20 is YANMAR’s 2nd generation vessel control system that controls all YANMAR electronically managed engines. Featuring simplified electrical management, a high-quality appearance, and significant functional improvements, the next generation YANMAR VC20 Vessel Control System integrates with YANMAR’s complete line up of common rail engine series, transmissions, controls, and displays.

The VC20 is a J1939 based CAN bus system that has a dedicated network to each engine and comes standard with an emergency back-up panel, ensuring the highest reliability. With NMEA connections built in, the VC20 can connect easily to multiple other vessel accessories or systems.

The system was completely developed by YANMAR to meet the company’s high standards of quality and dependability. The VC20 controls all YANMAR engine and transmission function and shows engine alarms and diagnostic codes in the display.
