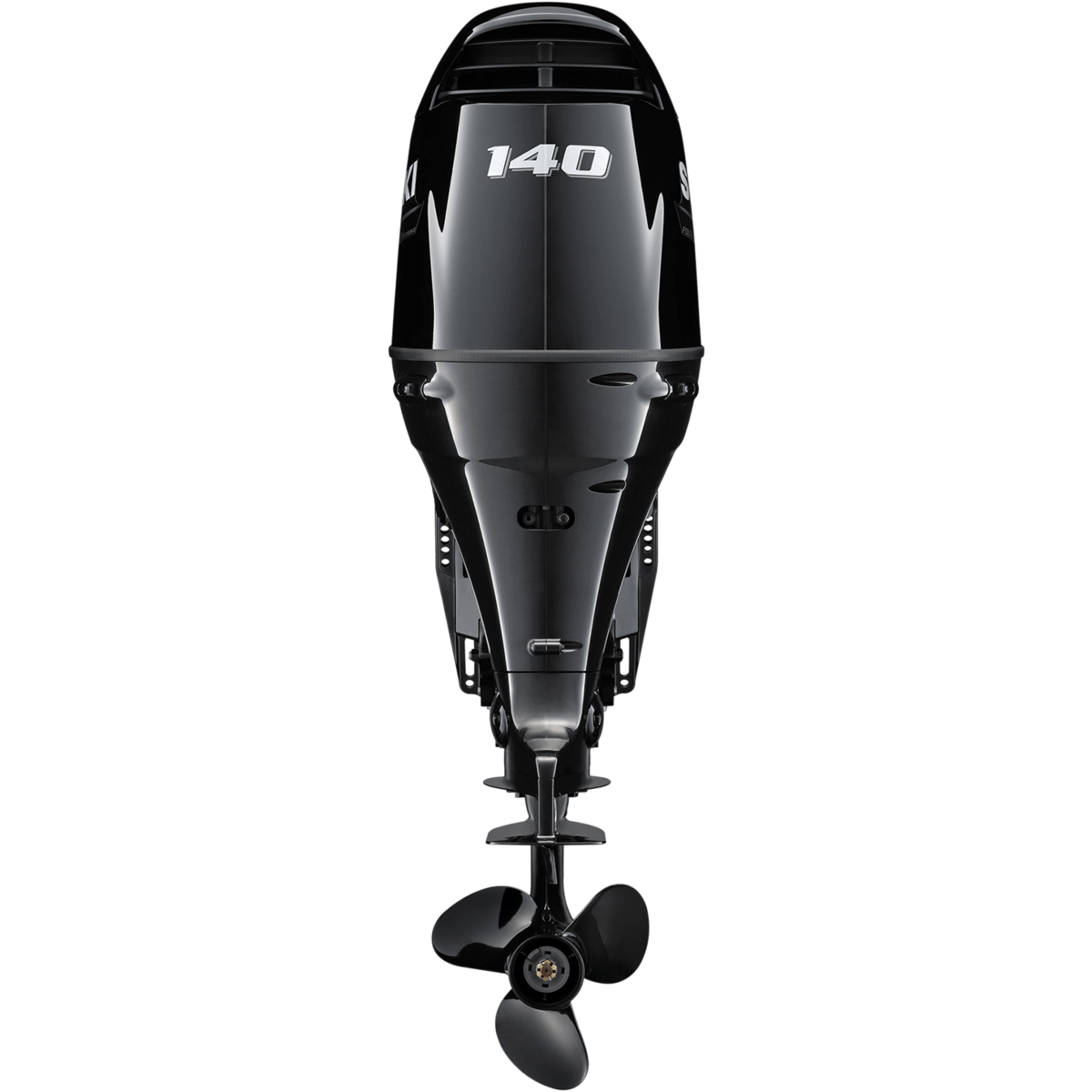

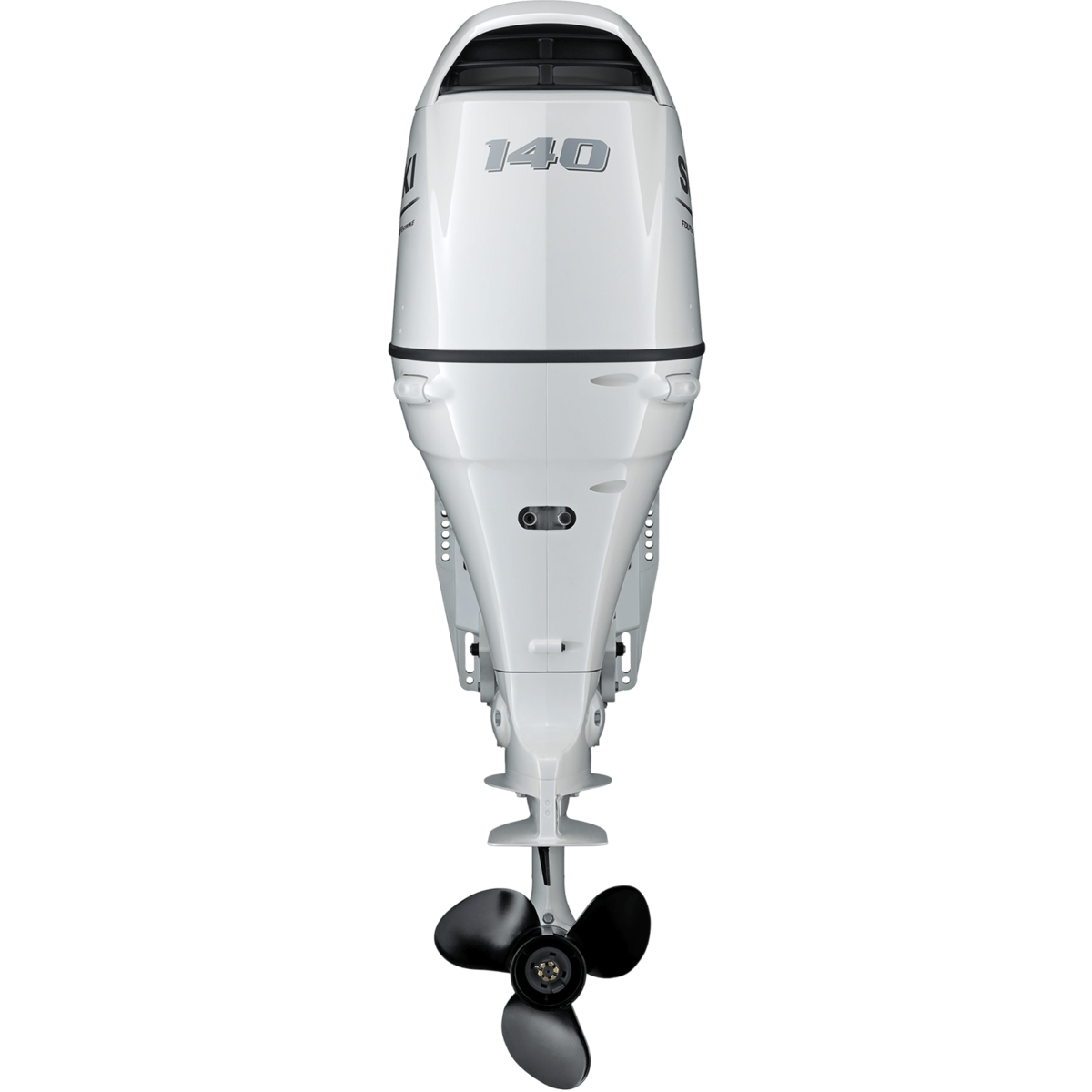

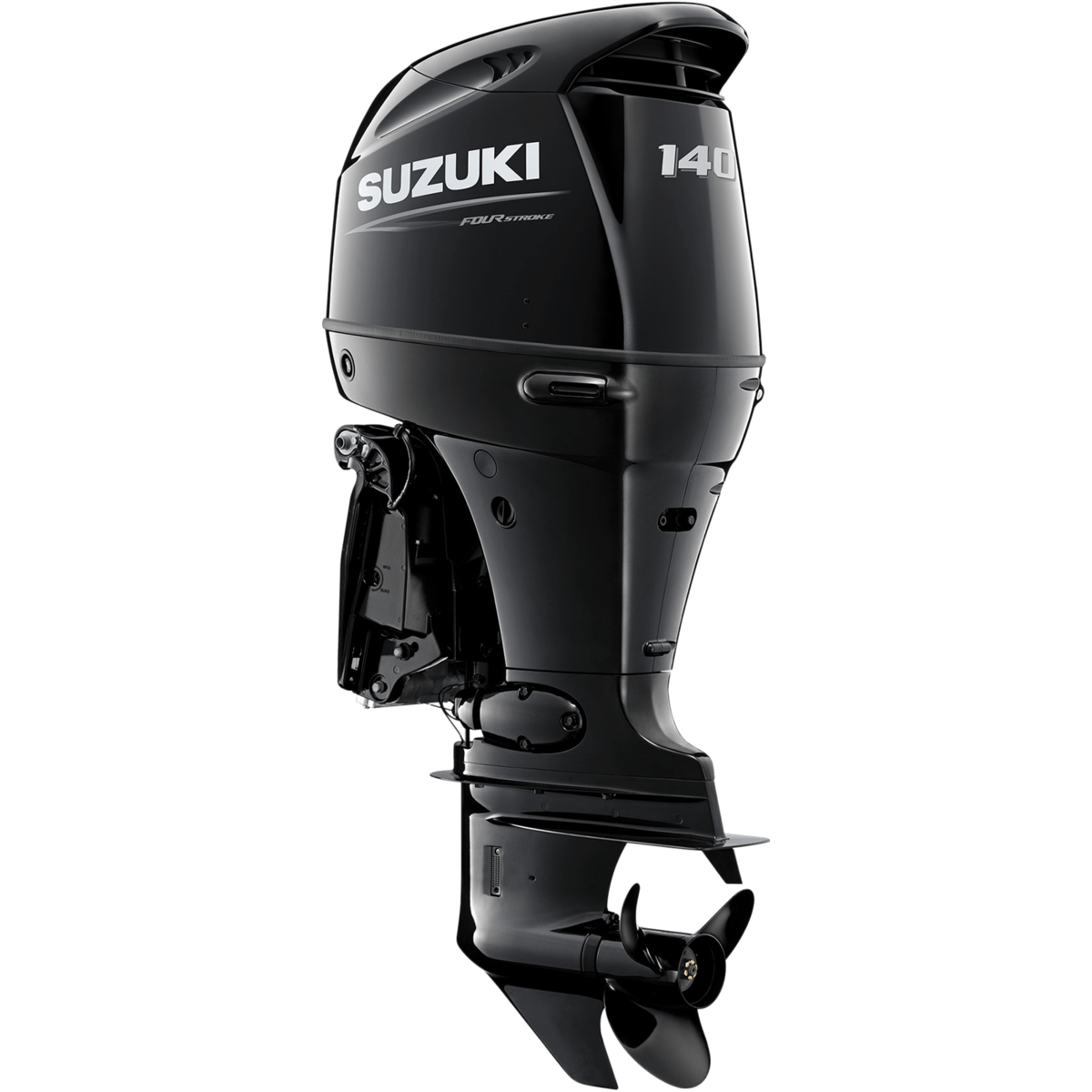

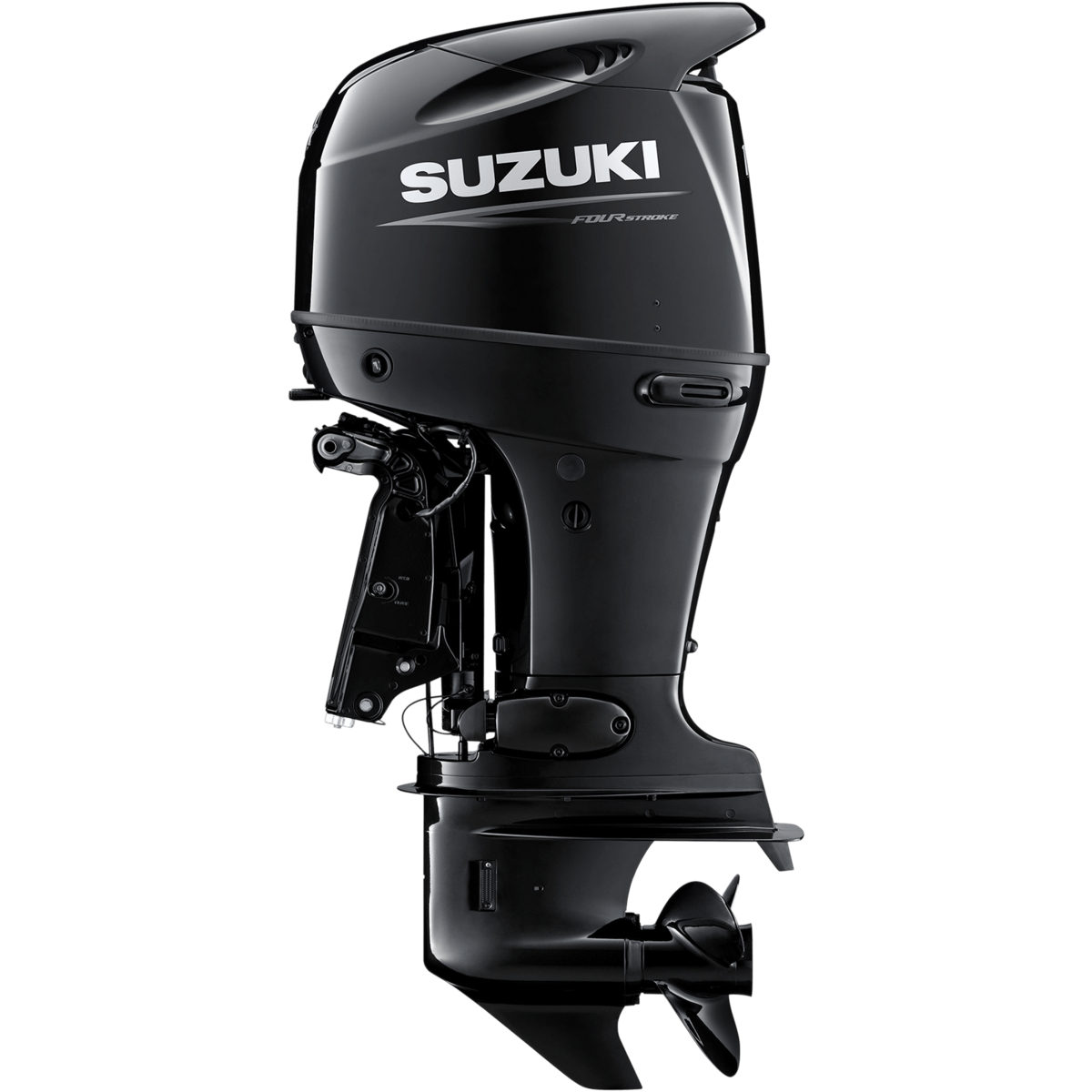

DF140A
The Suzuki DF140A is light and compact while providing exceptional performance, easily giving this motor the best power-to-weight ratio in its class. An engine cover design features a large air induction port to provide maximum airflow and thus, maximum power. It's also the first 4-stroke to utilize an oil cooler, ensuring that all that horsepower is available under every condition. Added up, the DF140A provides heavy-duty performance and long-lasting durability in a lightweight package.
Features
- Multi Point Sequential Electronic Fuel Injection
- Suzuki Lean Burn Control System
- Two-Stage Gear Reduction System
- Offset Driveshaft
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Fully Transistorized Ignition
- Timing Chain
- Fresh Water Flushing System
- Power Trim and Tilt
- Tilt Limit
- Speedometer Pickup of Gear Case
- Suzuki Anti-Corrosion System
| Body Color | Pearl Nebular Black or Cool White |
|---|---|
| Recommended Transom Height (inches) | L: 20 X: 25 |
| Starting System | Electric |
| Weight LBS | L: 394 X: 405 |
| Engine Type | DOHC 16-Valve |
| Fuel Delivery System | Multi Point Sequential Electronic Fuel Injection |
| No. Of Cylinders | 4 |
| Piston Displacement inches (cc) | 124.7 (2044) |
| Bore X Stroke Inches (mm) | 3.40 x 3.50 (86 x 88) |
| Maximum Output HP | 140 |
| Operating Range (RPM) | 5600-6200 |
| Steering | Remote |
| Choke | N/A |
| Oil Pan Capacity quarts (liter) | 5.8 (5.5) |
| Ignition System | Solid State Electronic Ignition |
| Alternator | 12V 40A |
| Trim Position | Power Trim and Tilt |
| Gear Ratio | 2.59:1 |
| Standard Propeller | Optional See Dealer |
| Propeller Selection | 15 - 26 |
 |  |  | |
| New outboard(s) | |||
| New rigging tube and connections | |||
| New propeller | |||
| Water separator / fuel filter | |||
| Engine oil | |||
| Miscellaneous rigging supplies | |||
| New controls | |||
| New harness | |||
| New standard gauges | |||
| New steering | |||
| New upgraded gauges | |||
| New battery switch |
