DF175S

(0) No Reviews yet
SKU: WEBDF175A

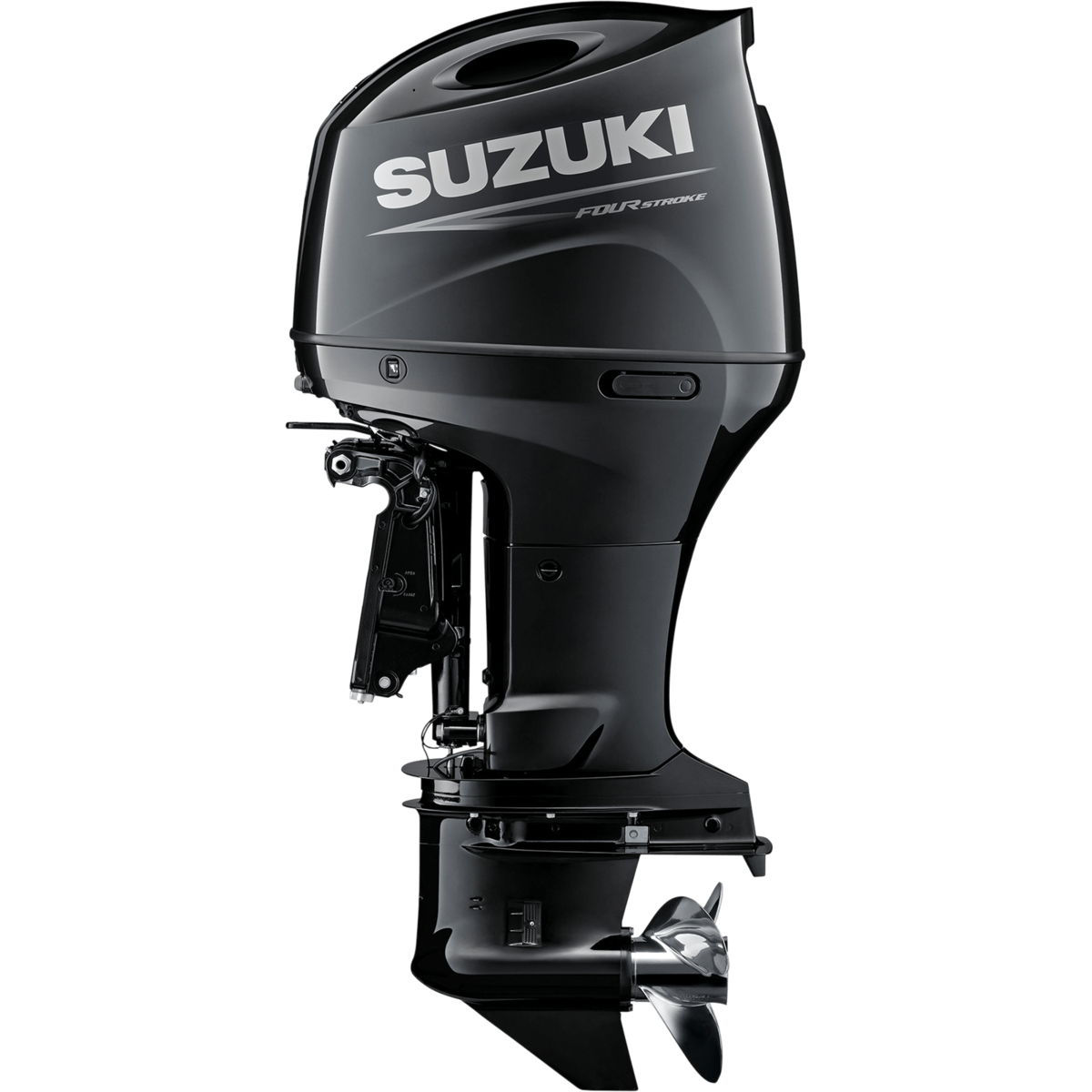

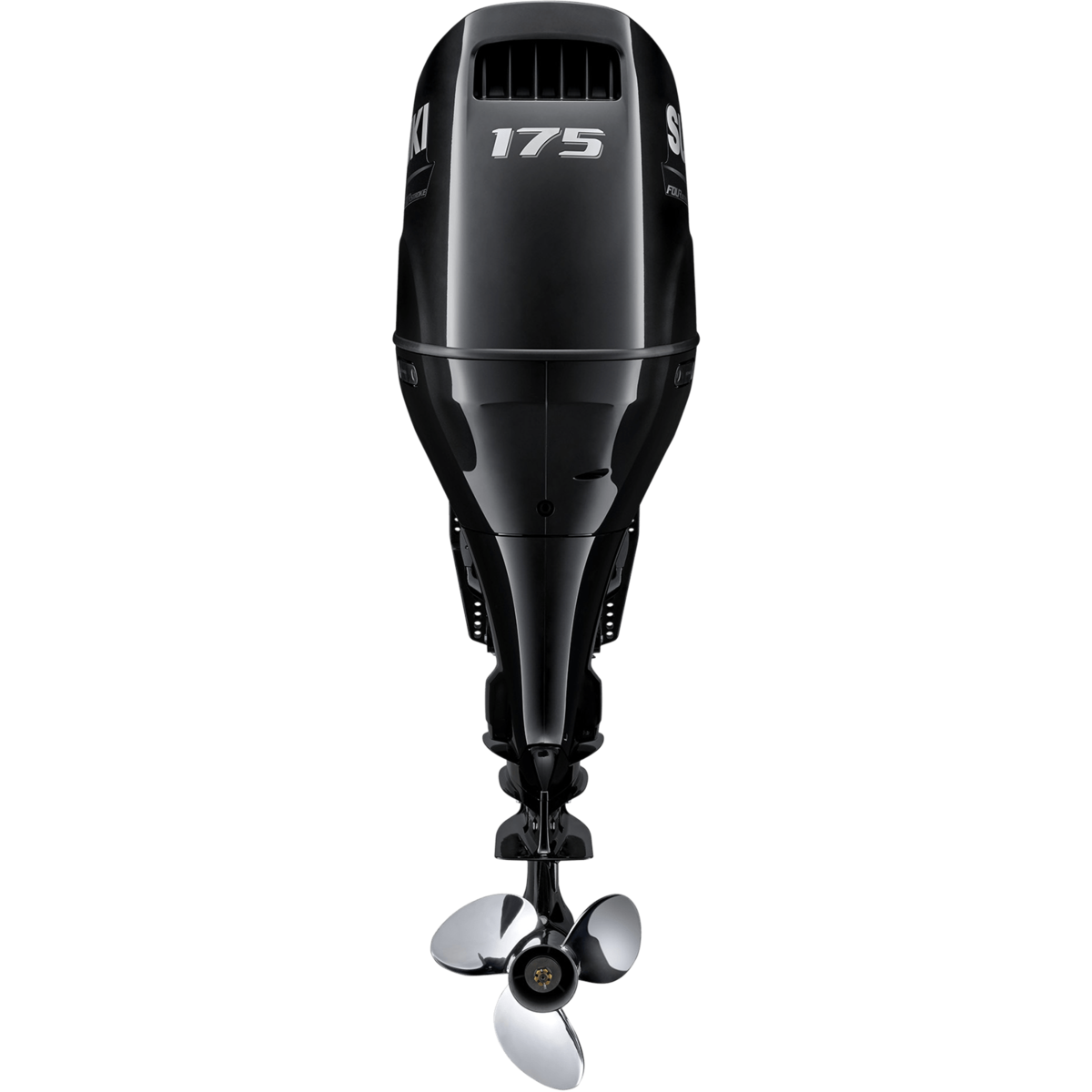

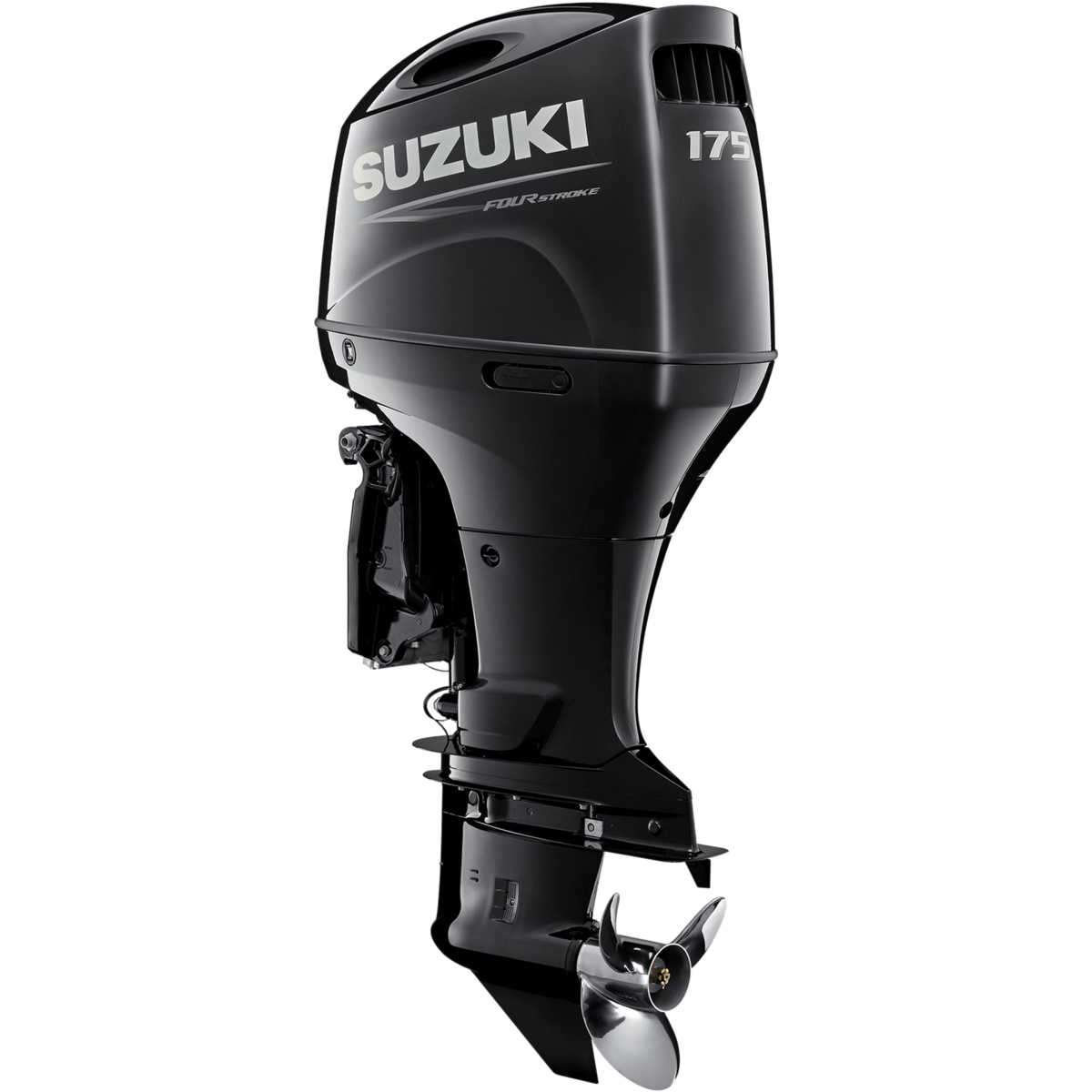

Suzuki's DF175A is based on an inline four cylinder DOHC powerhead with a 2,867cm³ (174.9 cu.in.) displacement. While the large displacement contributes greatly to producing exceptional acceleration and torque, it doesn't mean that they are comparatively larger and heavier in size. On the contrary, Suzuki's engineers have targeted this big block motor to be one of the lightest four strokes in the 175 HP class. *Now Available in Cool White*

Features

  • Multi Point Sequential Electronic Fuel Injection
  • Variable Valve Timing System
  • Multi-Stage Induction System
  • Two-Stage Gear Reduction System
  • Offset Driveshaft
  • Direct Ignition
  • Thrust Mount System
  • Over-Rev. Limiter
  • Low Oil Pressure Caution
  • Fully Transistorized Ignition
  • Timing Chain
  • Fresh Water Flushing System
  • Power Trim and Tilt
  • Tilt Limit
  • Speedometer Pickup of Gear Case

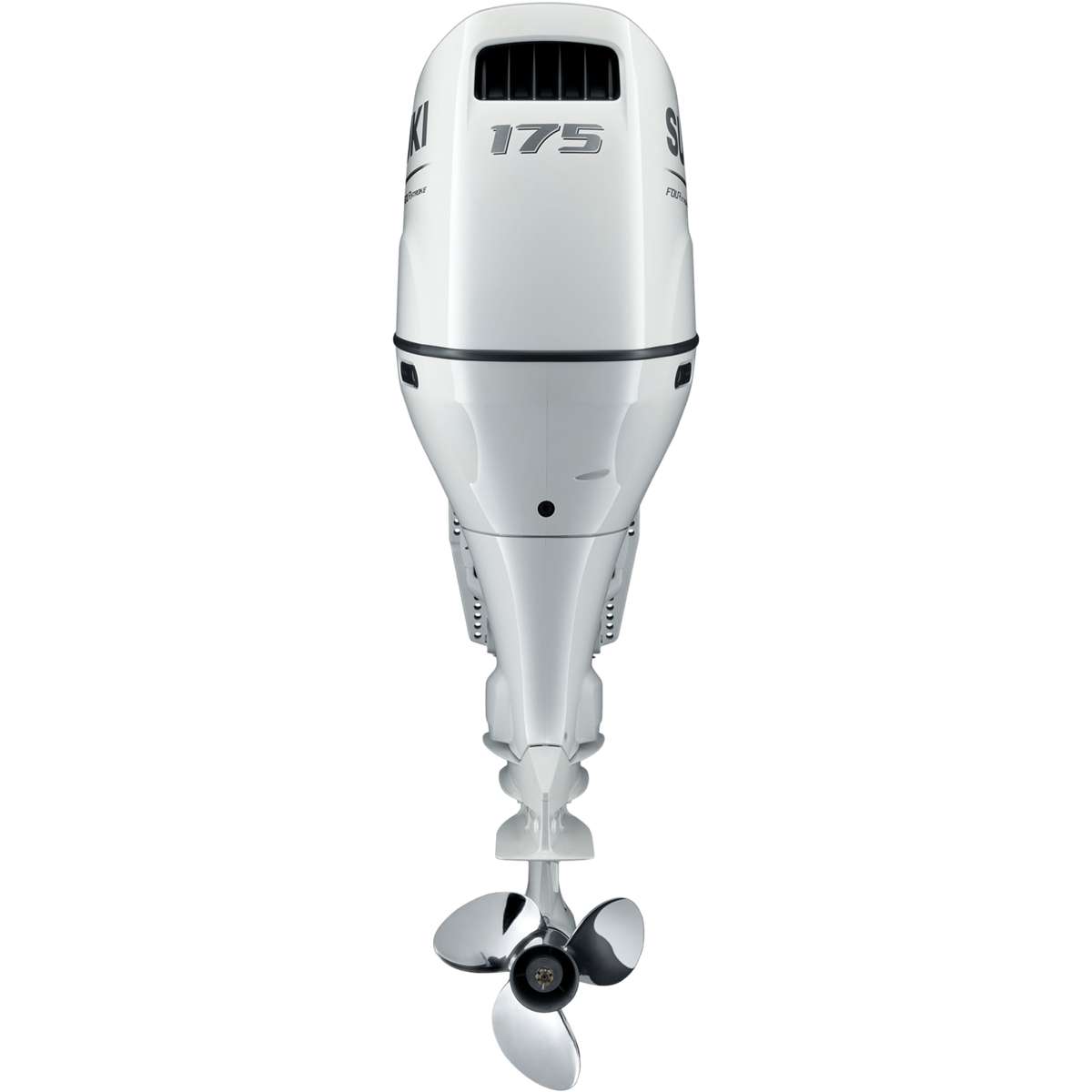

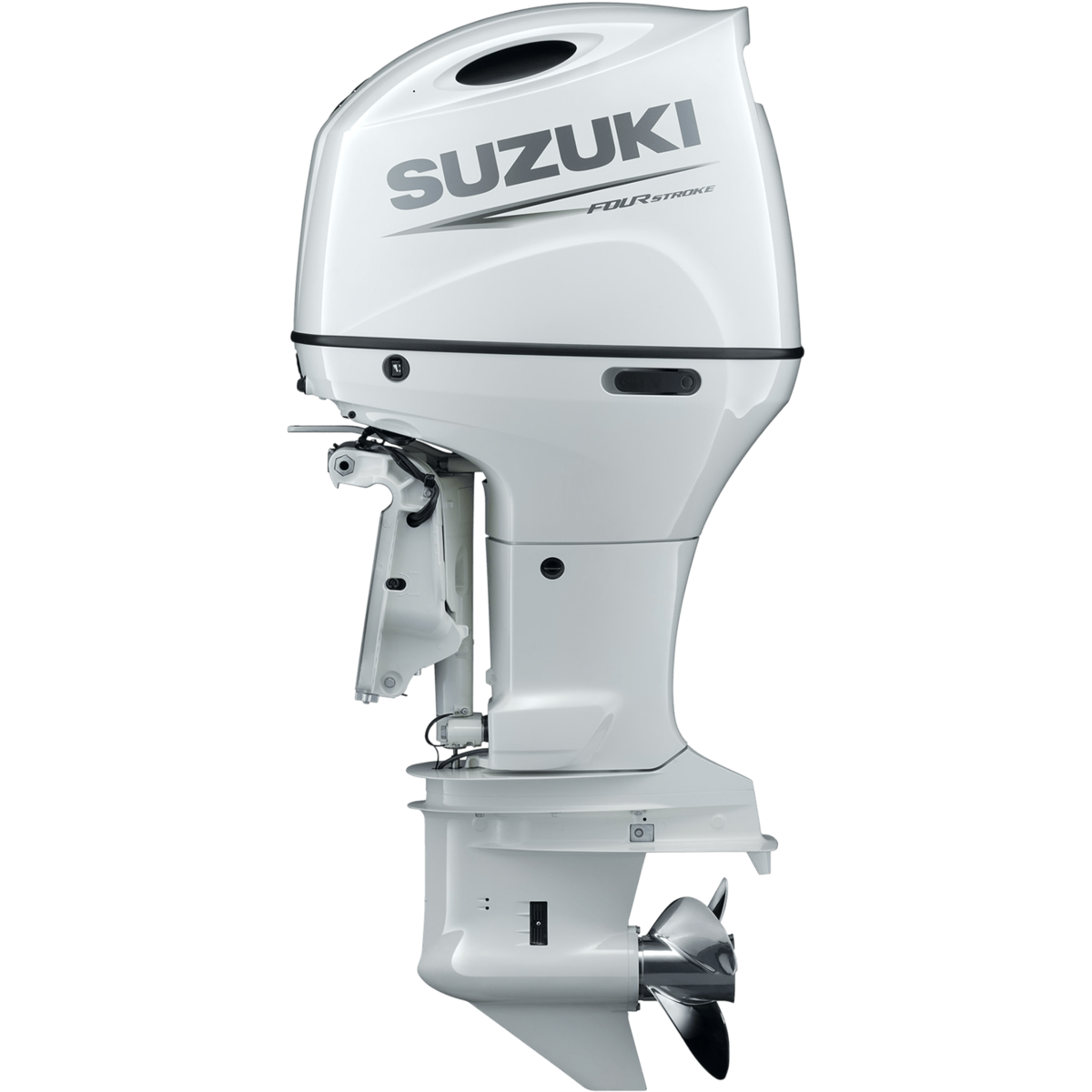

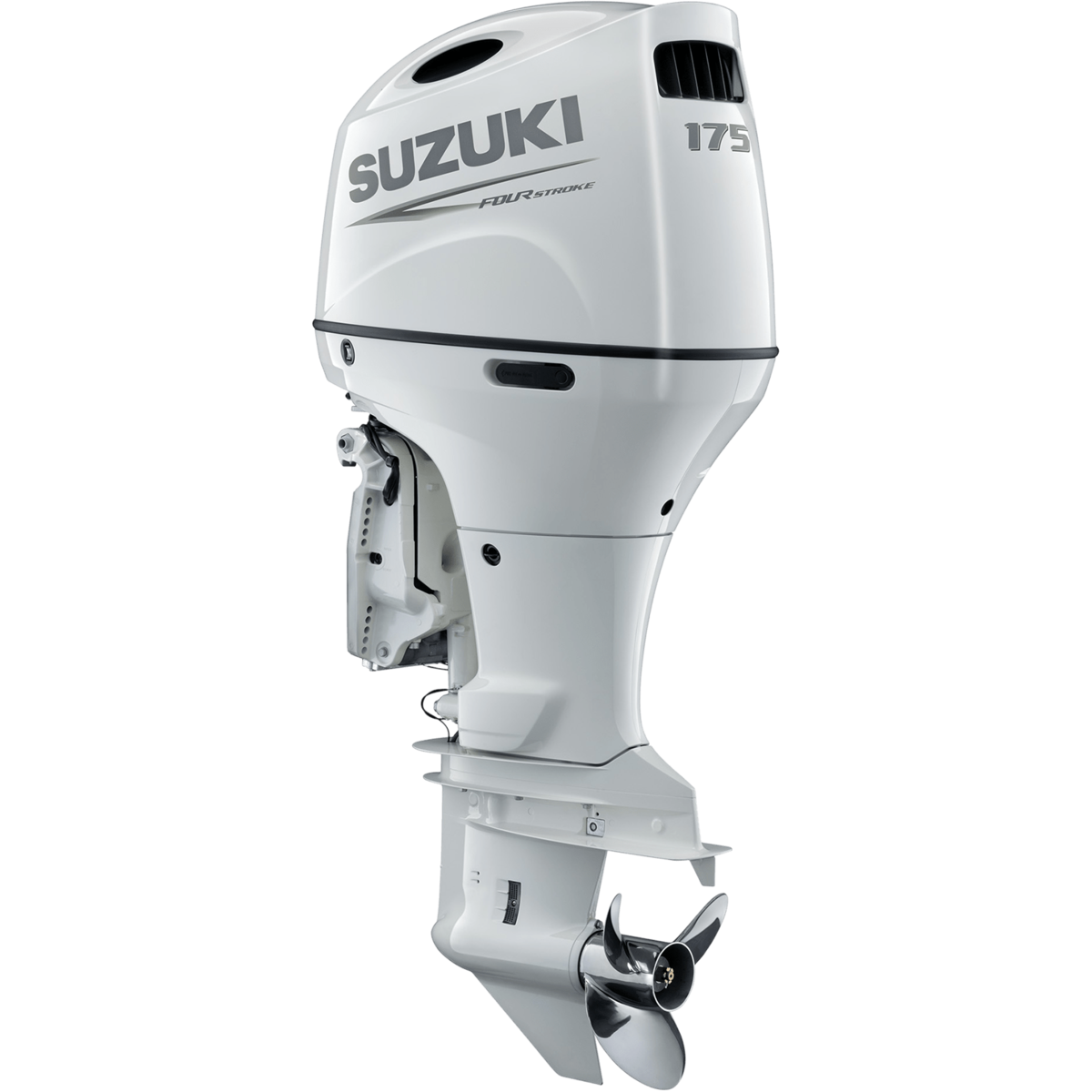

  • Standard Color is Shadow Black Metalic - Now Available in Cool White
  • Suzuki Anti-Corrosion System
Body ColorPearl Nebular Black or Cool White
Recommended Transom Height (inches)L: 20 X: 25
Starting SystemElectric
Weight LBSMechanical Controls: L: 511 X: 529 / Drive by Wire: L: 520 X: 531
Engine TypeDOHC 16-Valve
Fuel Delivery SystemMulti Point Sequential Electronic Fuel Injection
No. Of Cylinders4
Piston Displacement inches (cc)174.9 (2867)
Bore X Stroke Inches (mm)3.81 x 3.81 (97 x 97)
Maximum Output HP175
Operating Range (RPM)5500-6100
SteeringRemote
ChokeN/A
Oil Pan Capacity quarts (liter)8.5 (8.0)
Ignition SystemSolid State Direct Ignition
Alternator12V 44A
Trim PositionPower Trim and Tilt
Gear Ratio2.50:1
Standard PropellerOptional See Dealer
Propeller Selection17 - 29

New outboard(s)
New rigging tube and connections
New propeller
Water separator / fuel filter
Engine oil
Miscellaneous rigging supplies
New controls

New harness

New standard gauges

New steering


New upgraded gauges


New battery switch
