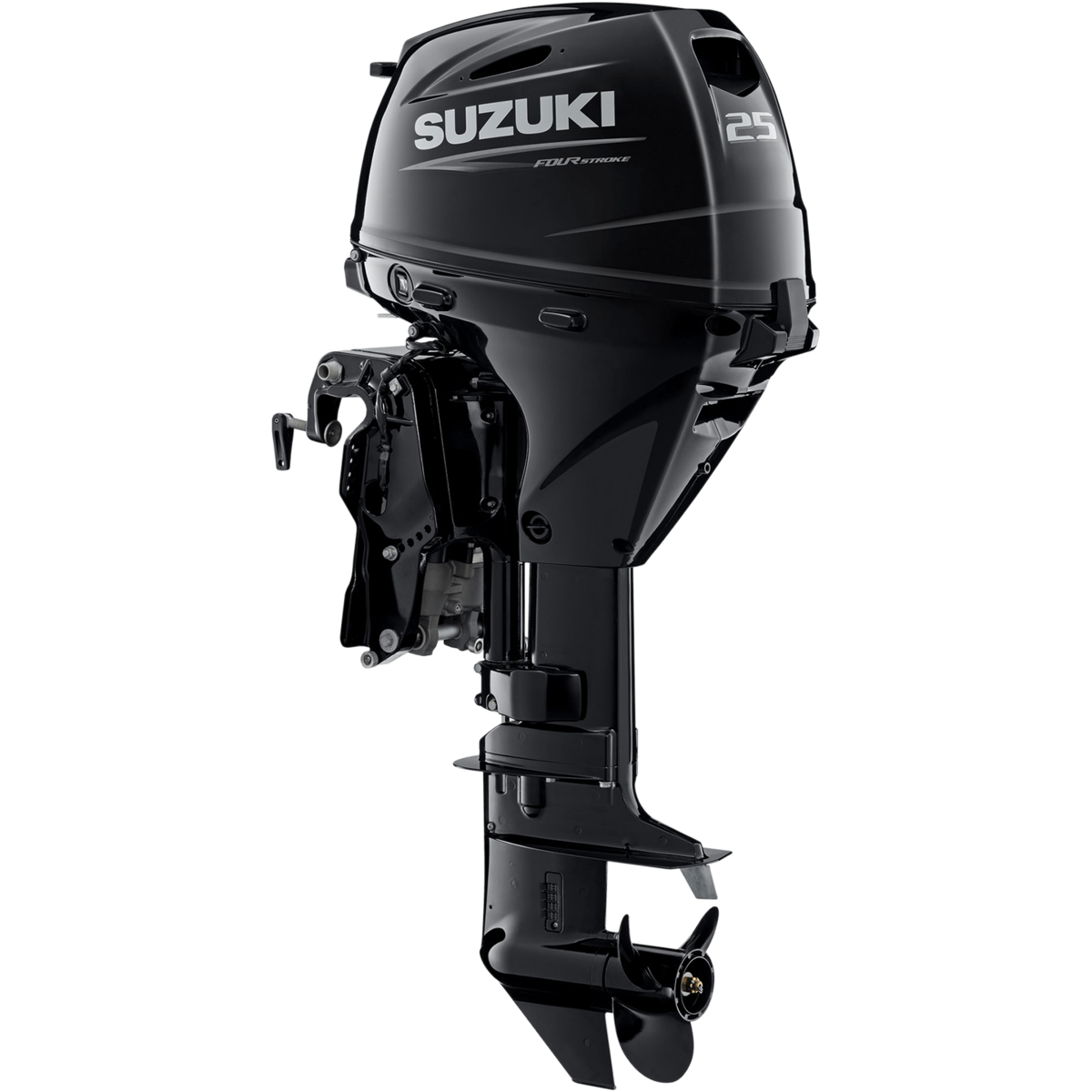

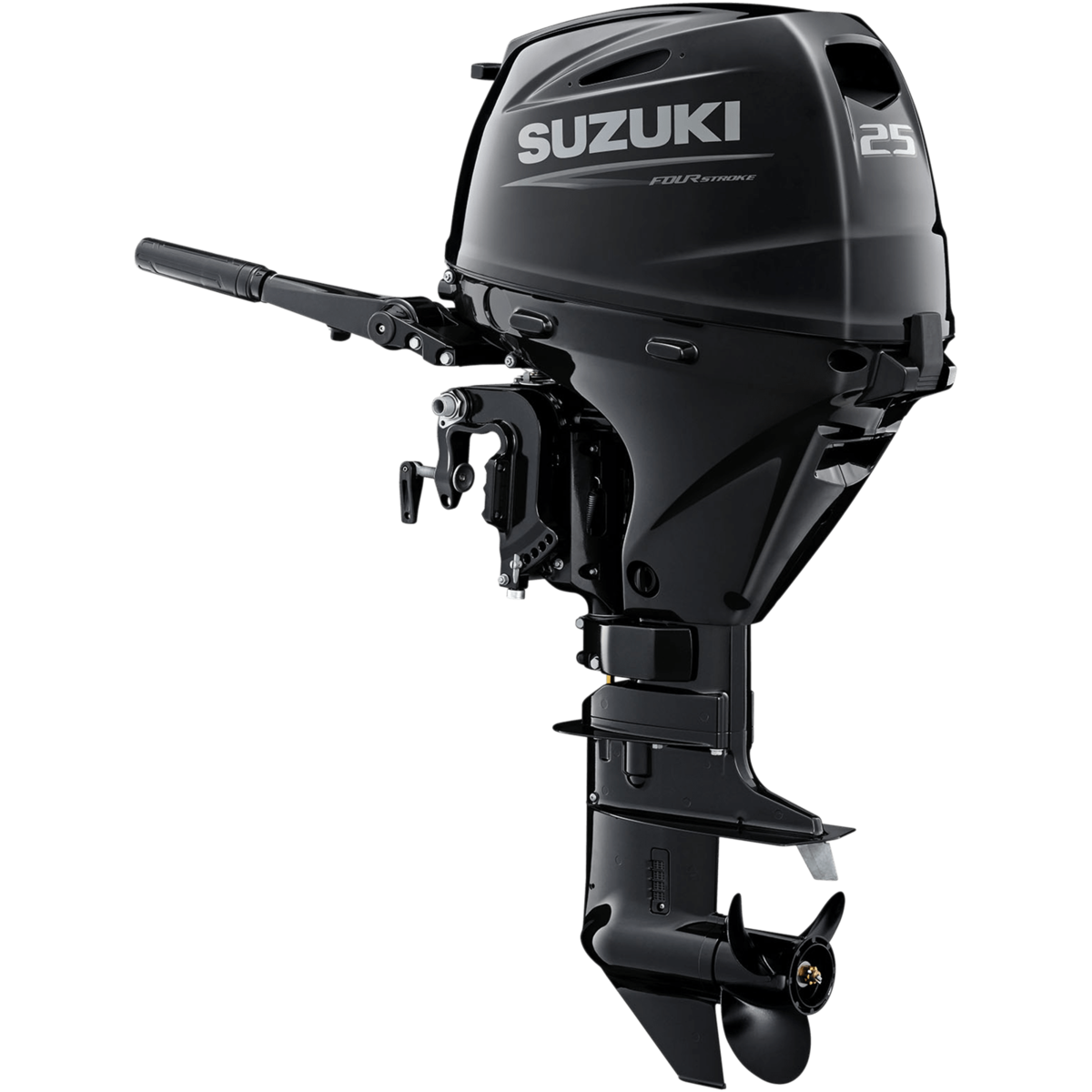

DF25ATHL5

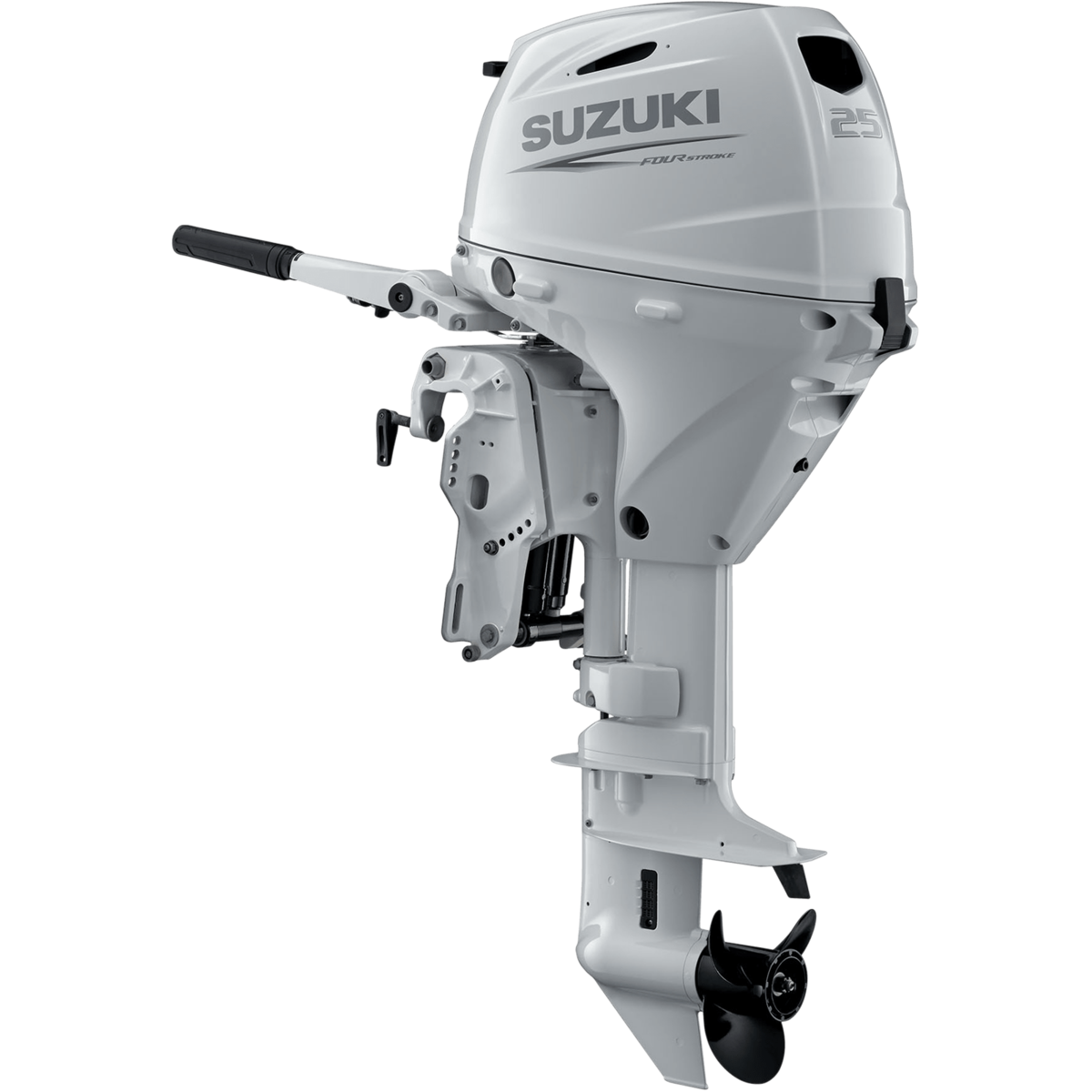

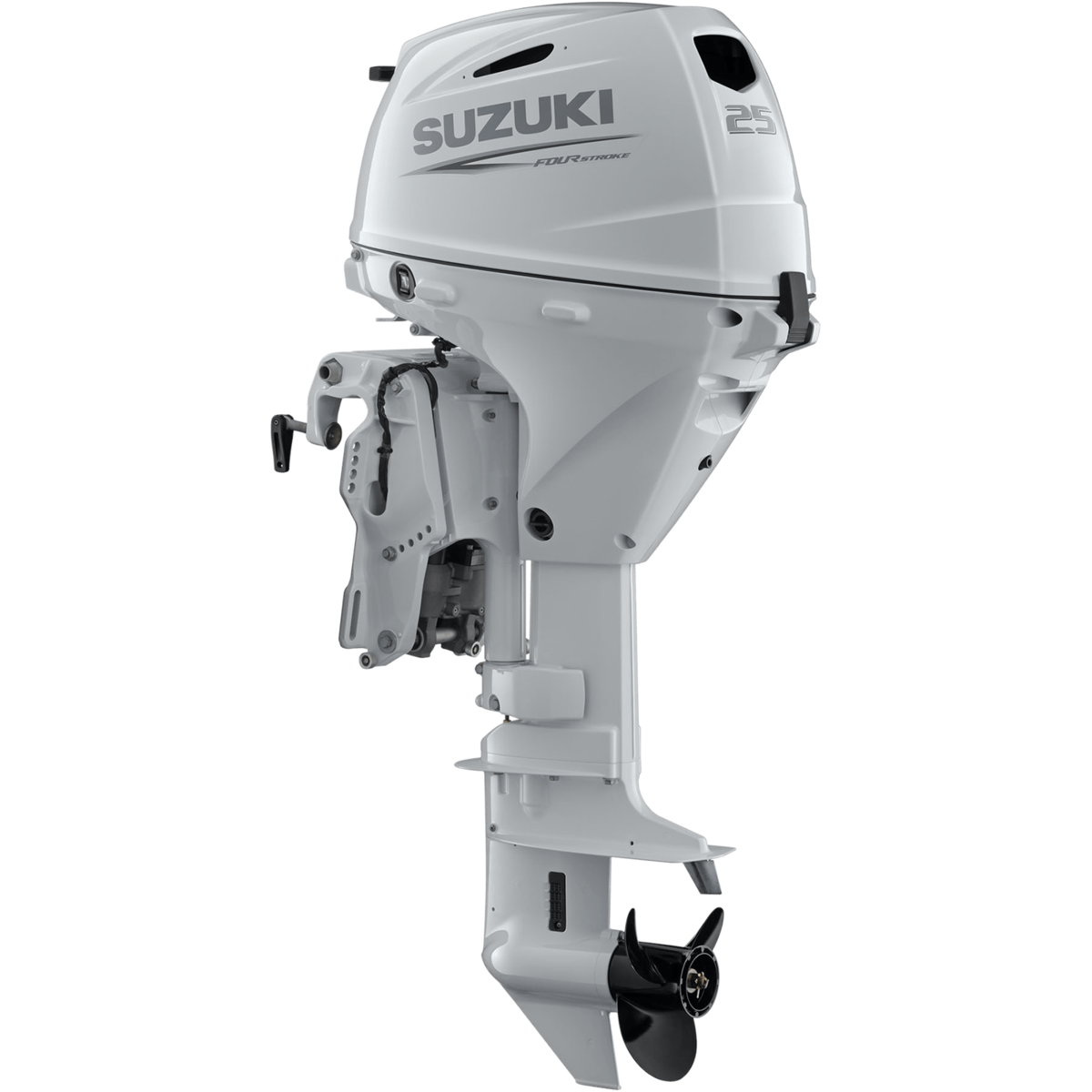

State-of-the-Art designs make the new DF25A the most technically advanced portable outboard on the market today. This is the world's first 25 hp outboard motor designed with Lean Burn and Battery-Less Electronic Fuel Injection. The Suzuki EFI system operates Battery-Less, which is an industry first in this horse-power class. The DF25A is a smooth running "Next Generation" four stroke which delivers quick starts, great accelleration, awesome performance and superior fuel economy. Go Lean, Clean and Green, Go Suzuki! Now Available in Cool White!
Features
- Battery-Less Electronic Fuel Injection
- Easy Start - Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System
Recommended Transom Height (inches) | S:15" L:20" |
---|---|
Starting System | Manual S /Electric S and L |
Weight LBS | Manual S: 136.6 / Electric S: 143 - Electric, Tiller, Power Trim and Tilt L: 163 |
Engine Type | SOHC 4-Valve |
Fuel Delivery System | Suzuki Battery-less Electronic Fuel Injection with Lean Burn Control |
No. Of Cylinders | 3 |
Piston Displacement inches (cc) | 29.8 (489) |
Bore X Stroke Inches (mm) | 2.80 x 2.68 () |
Maximum Output HP | 25 |
Operating Range (RPM) | 5000 - 6000 |
Steering | Tiller/Remote |
Choke | N/A - Suzuki Electronic Fuel Injection |
Oil Pan Capacity quarts (liter) | 1.6 (1.5) |
Ignition System | Digital CDI |
Alternator | Manual 12V 14A / Electric 12V 14A |
Trim Position | 5 Tilt Pin Positions - Manual / Power Tilt and Trim |
Gear Ratio | 2.09:1 |
Standard Propeller | 3 x 9.25 x 10 |
Propeller Selection | 7 - 11 |
