DF300BMD

(0)No Reviews yet
SKU: WEBDF300BMD

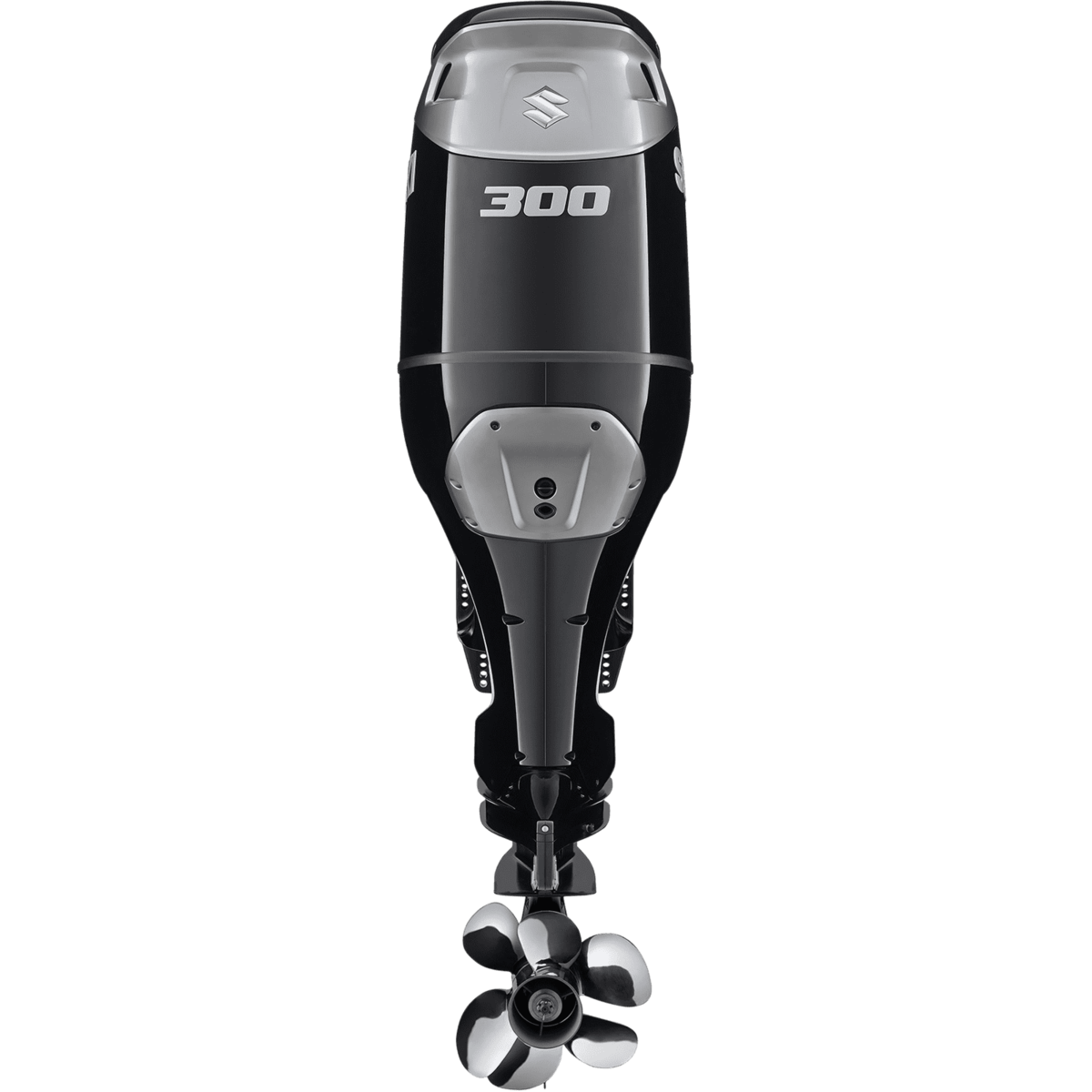

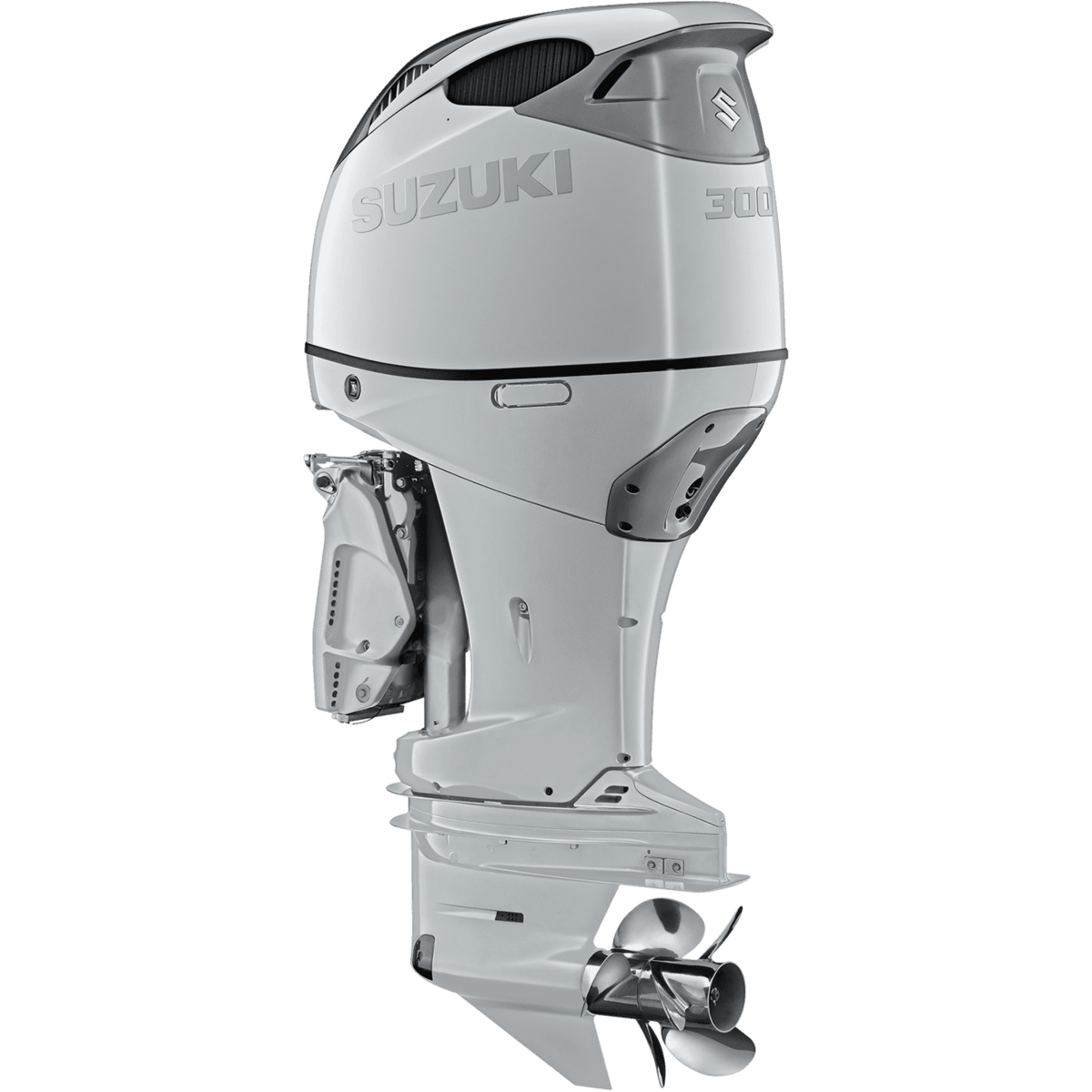

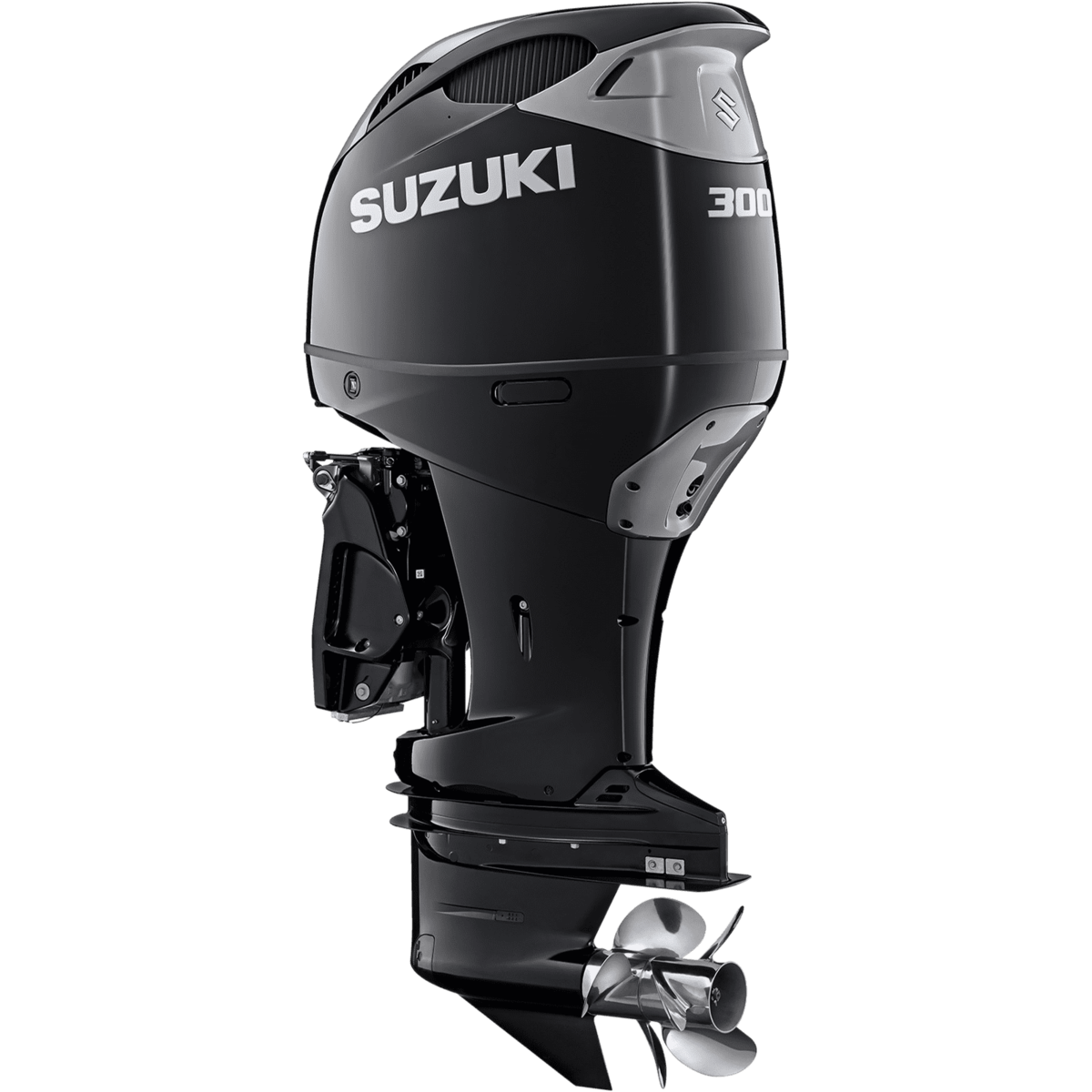

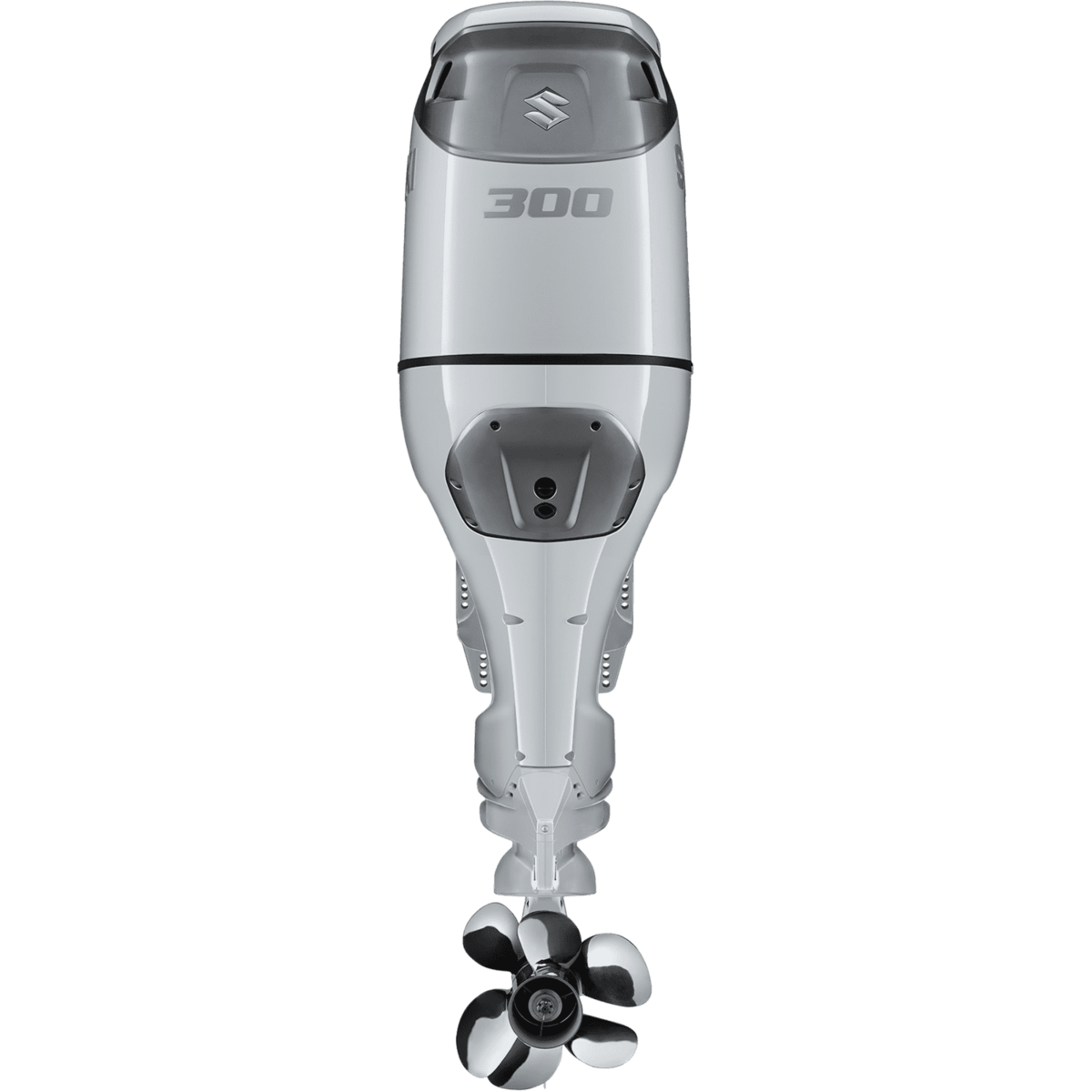

The new DF300BMD Integrated steering is the newest addition to the Suzuki lineup. The Suzuki Dual Propeller System and the Suzuki 2-Stage Gear Reduction aid to successfully produce better torque for all types of boat applications. The new DF300BMD has been engineered to run on 87 octane fuel, has integrated steering for easier rigging and a newly updated lower unit. This truly is Suzuki’s ultimate Four-Stroke Outboard Motor. *Available in Cool White and Pearl Nebular Black*

Features

INTEGRATED STEERING.

Our technologically advanced Precision Control System is a computer-based drive-by-wire control system that eliminates the friction and resistance of mechanical control cables. Operation is smooth and precise with crisp, immediate shifting that is most evident in the low rpm range, when maneuvering around the marina and in close quarters.

KNOCK, KNOCK.

The knock sensor monitors combustion to provide you with optimized performance. In addition to maximizing power output, the system also helps increase engine durability.

DUAL PROPS. SINGLE GOAL.

The increased power of this engine requires more powerful gears, and more powerful gears take up more space. How do you design a solution that doesn’t compromise performance? Enter our contra-rotating dual propeller system. The contra-rotating propeller provides more “grip” underwater, and because contra-rotating propellers distribute the engine torque evenly over two propellers, the torque per propeller decreases and we can reduce the gear size and design a smaller, more hydrodynamic gear case.

LESS IS MORE.

By positioning the crankshaft in front of the drive shaft, we’ve moved the outboard’s center of gravity forward, making the outboard more compact and increasing its performance. This design also significantly reduces vibration by moving the engine’s axis of inertia—the point where engine vibrations are at a minimum—up over the upper engine mount.

MODELDF300BMD
BODY COLORPearl Nebular Black or Cool White
RECOMMENDED TRANSOM HEIGHT (INCHES)L:20 X: 25 XX: 30 With Suzuki Contra Rotating Propellors
STARTING SYSTEMElectric - Suzuki Start System
WEIGHT LBSL : 20" 761 lbs X : 25" 776 lbs XX:794 lbs
ENGINE TYPEDOHC 24-Valve
FUEL DELIVERY SYSTEMMulti Point Sequential Electronic Fuel Dual Injection with Lean Burn and Oxygen Sensor
NO. OF CYLINDERSV6 (55°)
PISTON DISPLACEMENT INCHES (CC)267.9 (4390)
BORE X STROKE INCHES (MM)3.74 x 3.82 (98 x 97)
MAXIMUM OUTPUT HP350
OPERATING RANGE (RPM)5700 - 6300
STEERINGRemote
TROLL MODEOptional Troll Mode - See Dealer
OIL PAN CAPACITY QUARTS (LITER)8.5 (8.0)
IGNITION SYSTEMSolid State Direct Ignition
ALTERNATOR12V 54A
TRIM POSITIONPower Trim and Tilt
GEAR RATIO2.29:1
STANDARD PROPELLERSContra Rotating Propellors - See Dealer for options
PROPELLER SELECTION12 - 31.5

New outboard(s)
New rigging tube and connections
New propeller
Water separator / fuel filter
Engine oil
Miscellaneous rigging supplies
New controls

New harness

New standard gauges

New steering


New upgraded gauges


New battery switch
