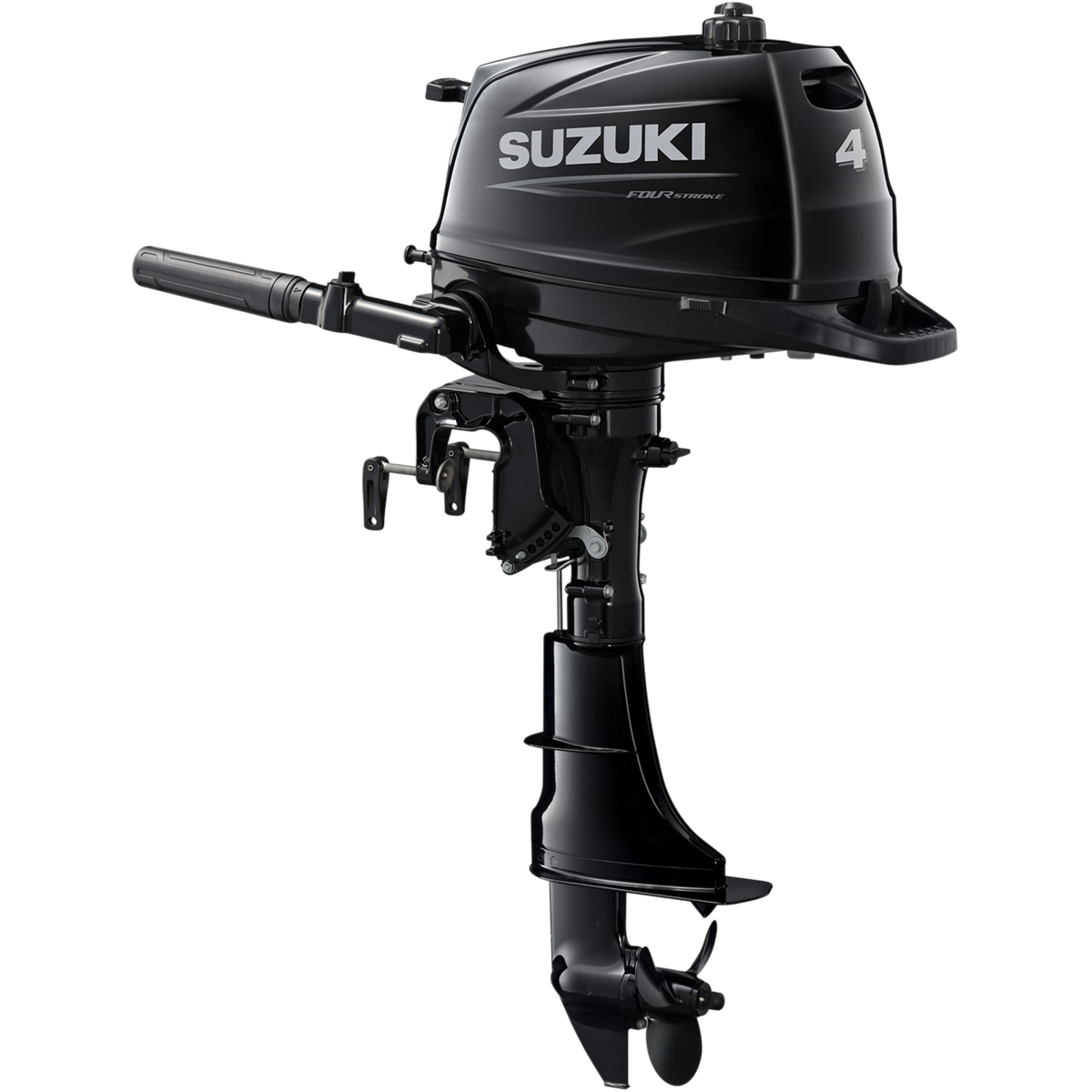

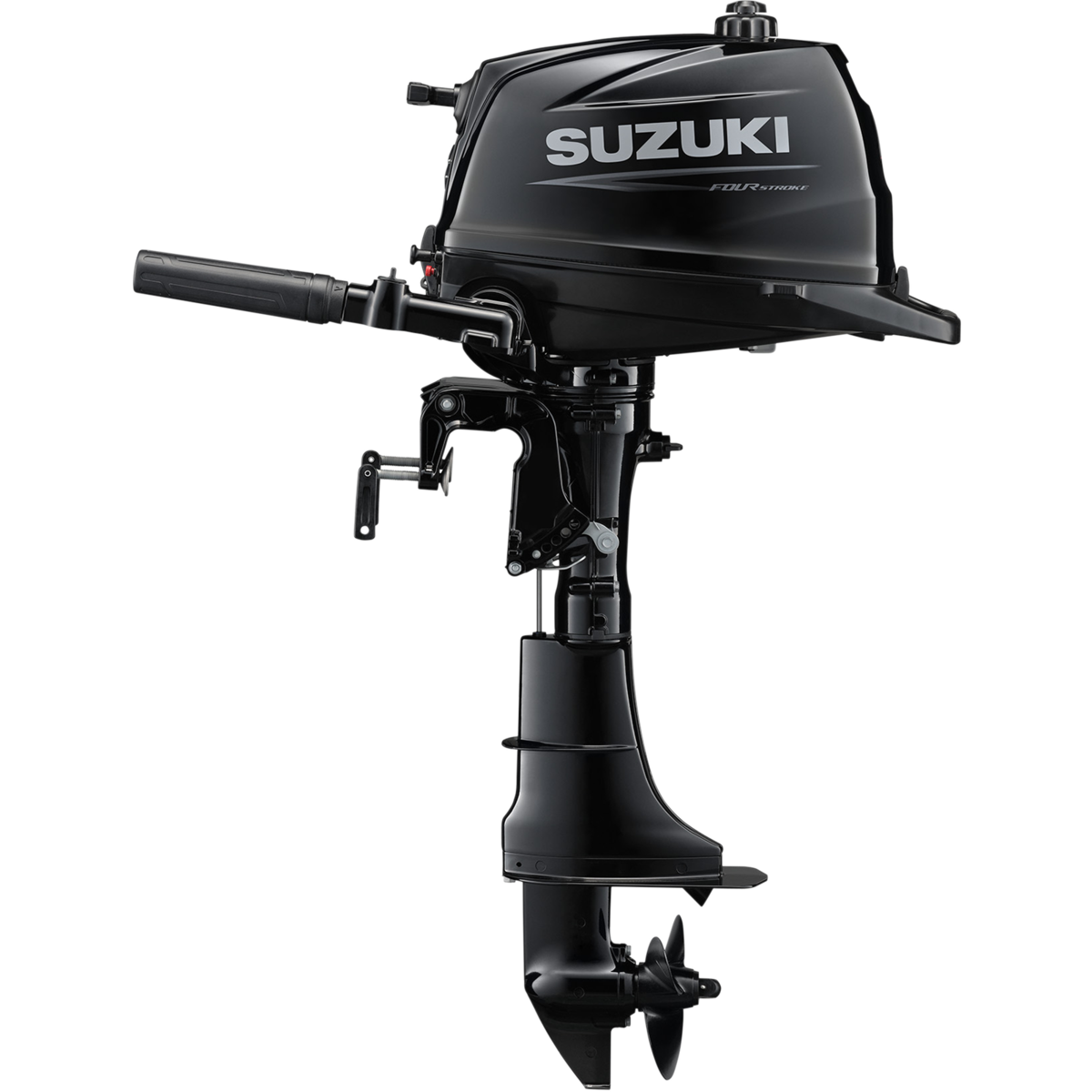

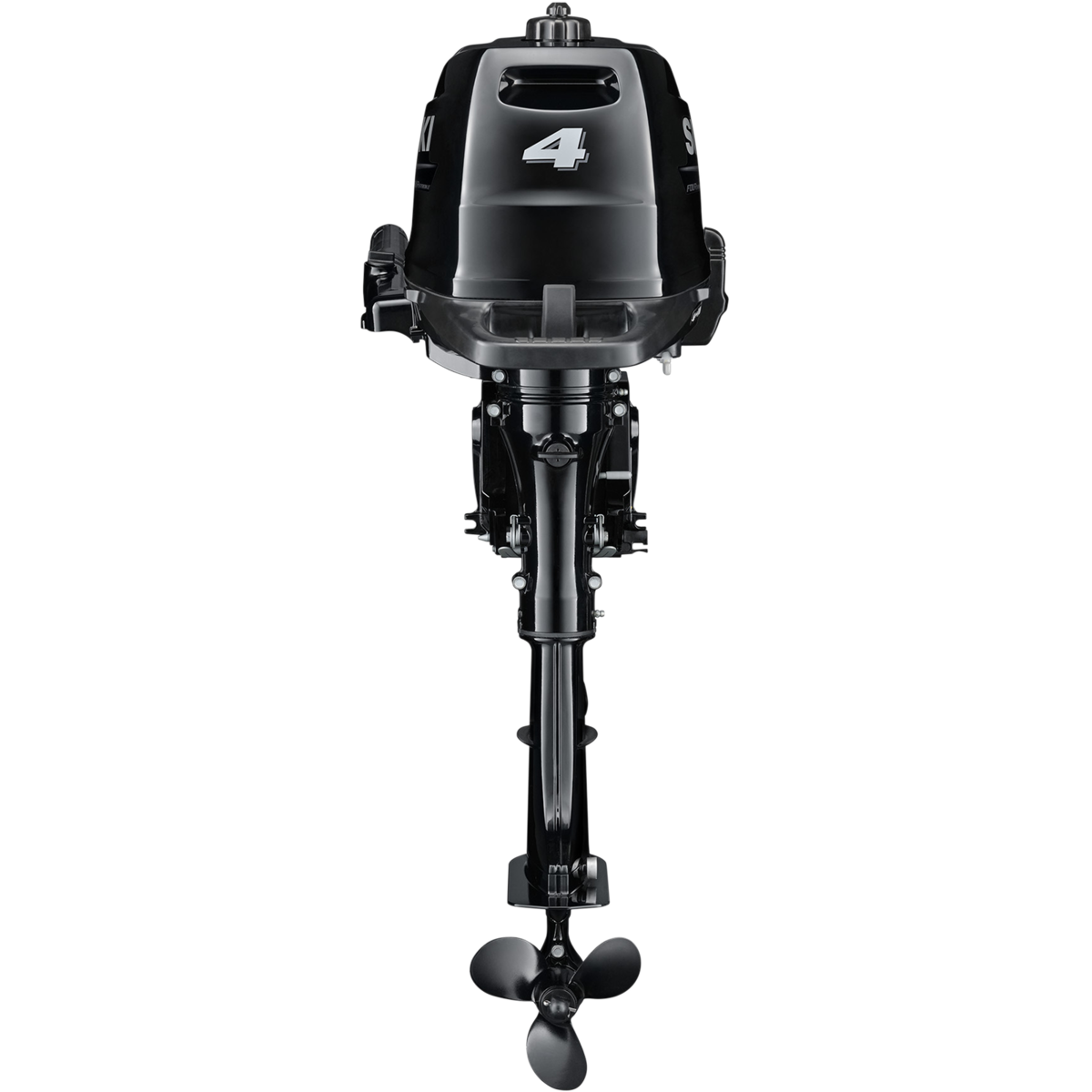

DF4AS5
The DF4A brings 4-stroke performance and efficiency to portable outboards. Compact and lightweight, the DF4 is easy to transport and delivers surprising low- and mid-range torque for quick acceleration.
Features
- Over-Rev. Limiter
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System
Recommended Transom Height (inches) | S: 15 |
---|---|
Starting System | Manual |
Weight LBS | S: 55 |
Engine Type | OHV 2-Valve |
Fuel Delivery System | Carburetor |
No. Of Cylinders | 1 |
Piston Displacement inches (cc) | 8.4 (138) |
Bore X Stroke Inches (mm) | 2.44 x 1.81 (62 x 46) |
Maximum Output HP | 4 |
Operating Range (RPM) | 4000 - 5000 |
Steering | Tiller |
Choke | Manual |
Oil Pan Capacity quarts (liter) | .74 (.7) |
Ignition System | Digital CDI |
Alternator | 12V 6A |
Trim Position | 5 Tilt Pin Positions |
Gear Ratio | 1.92:1 |
Standard Propeller | 3 x 7.5 x 6.5 |
Propeller Selection | 6 - 7 |
