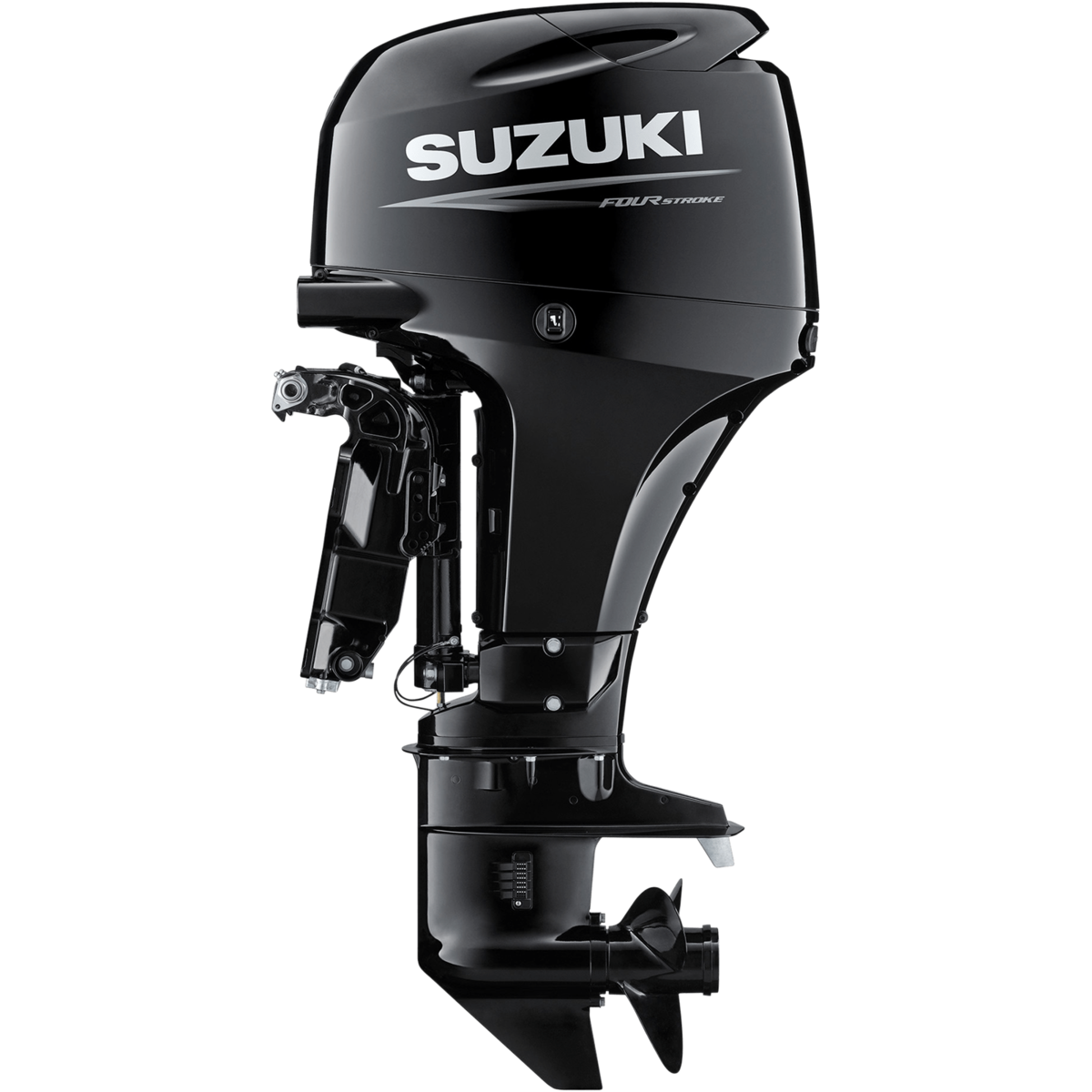

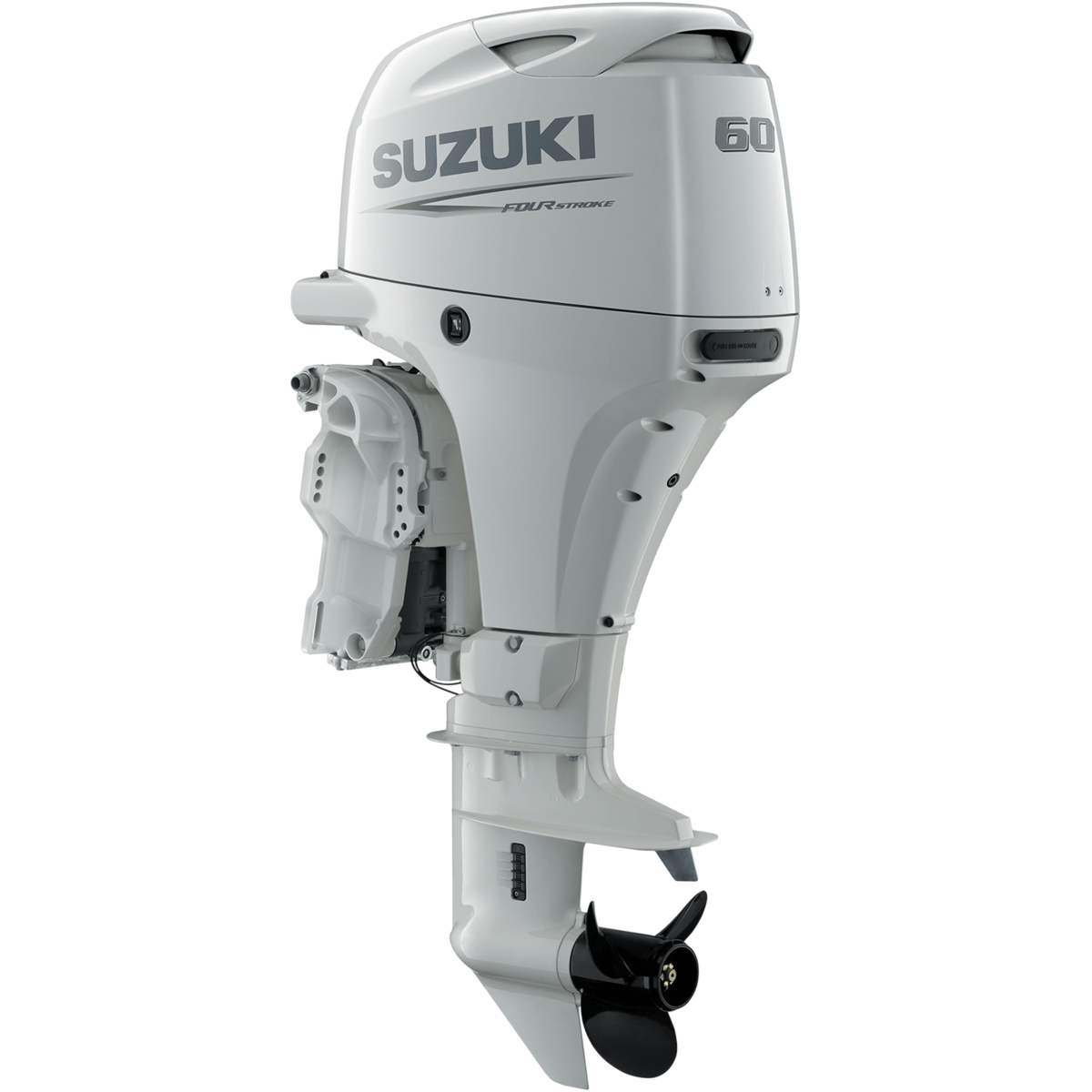

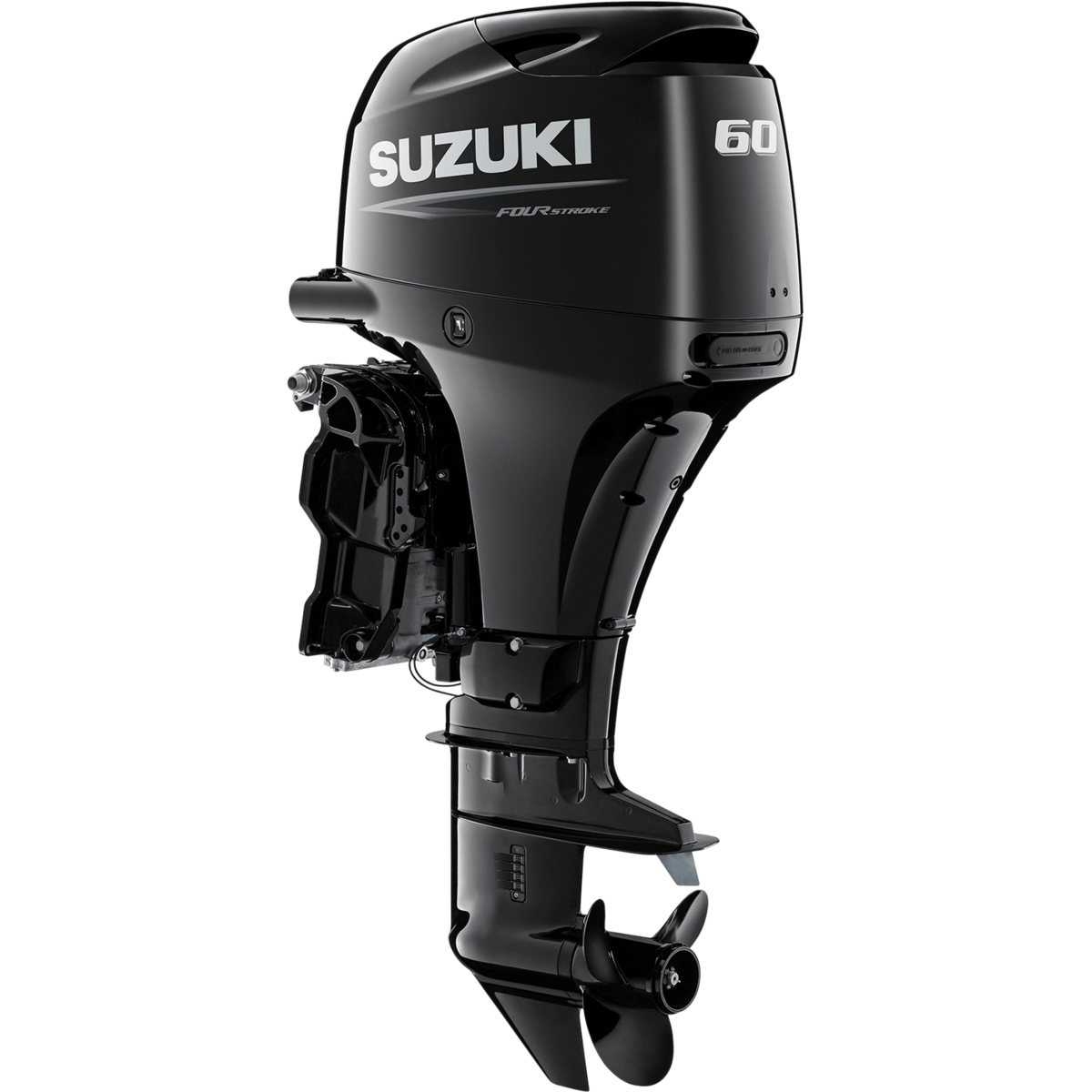

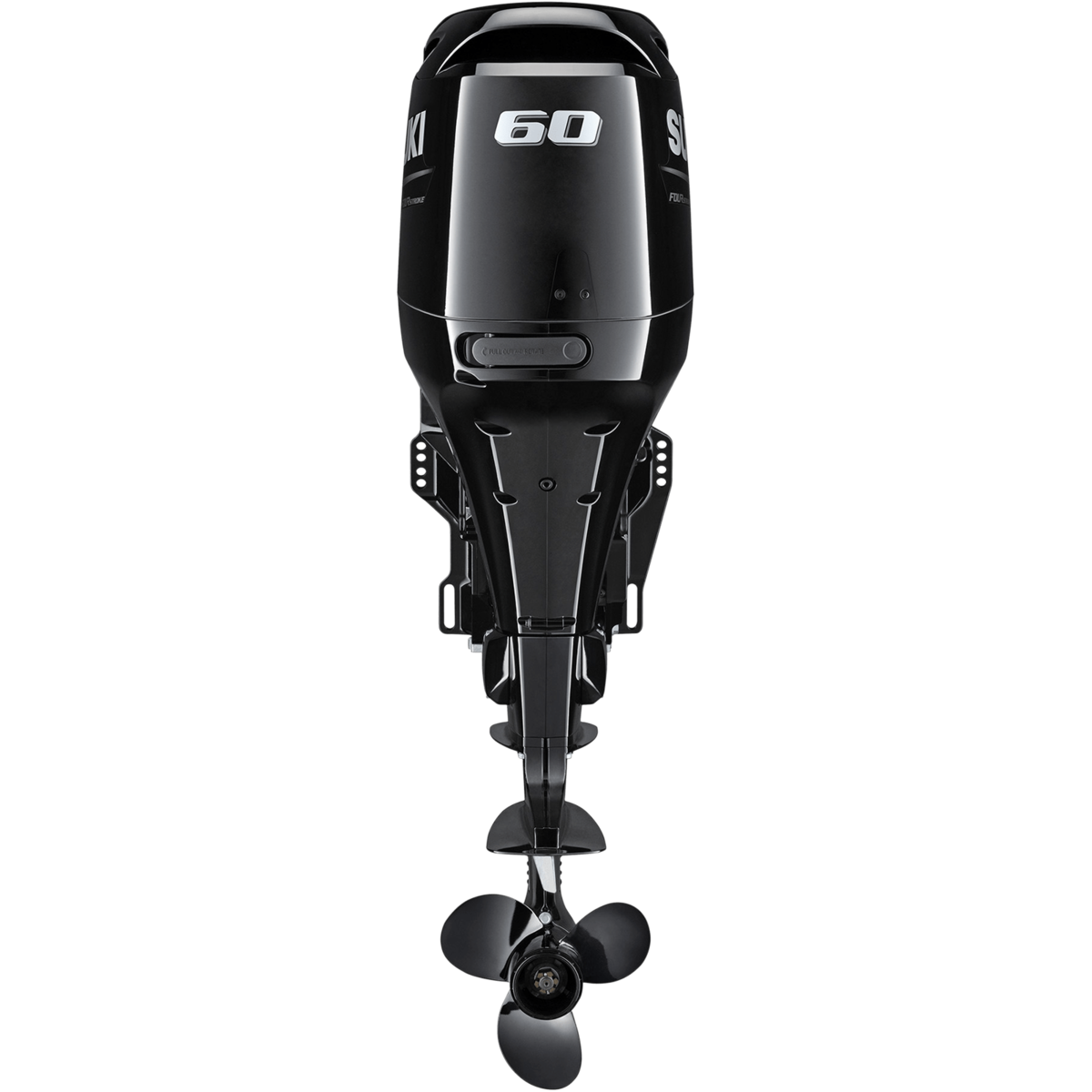

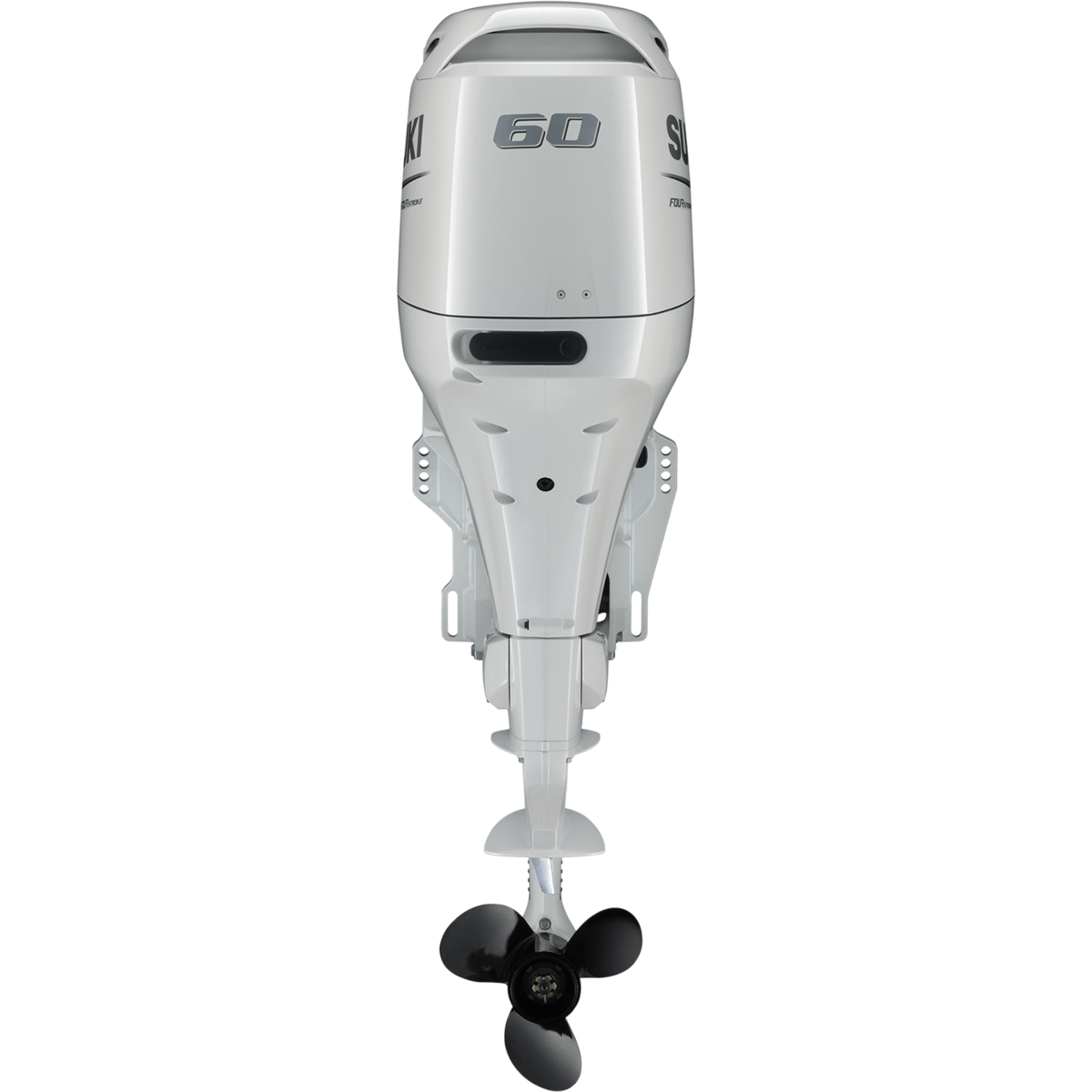

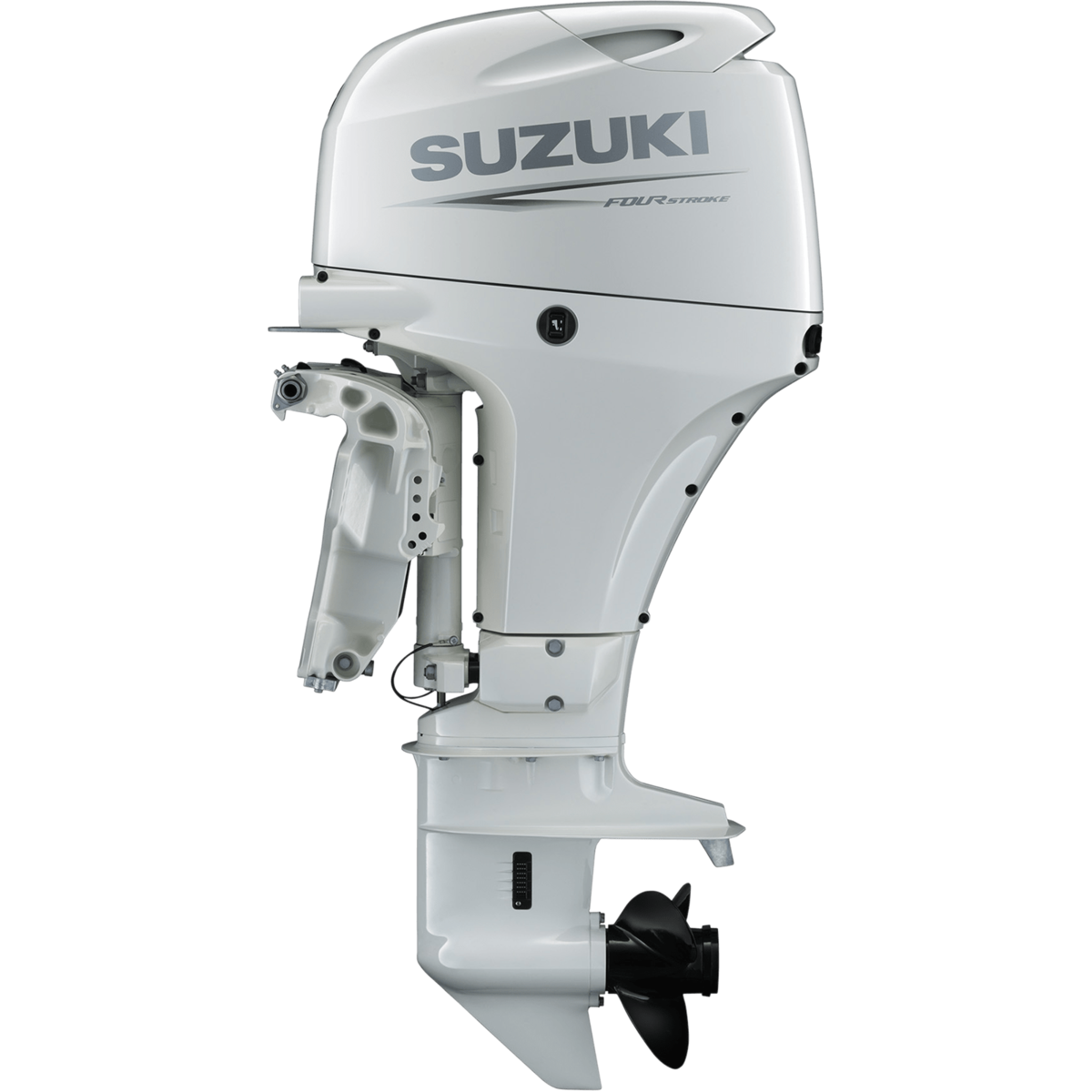

DF60A
Engineered to deliver fuel-efficient operation in a compact and light weight design, the DF60A utilizes many of the advancements that Suzuki has pioneered over the last decade. This three-cylinder engine with a four valve DOHC design is combined with Suzuki's Lean Burn Control System to deliver high-tech performance with efficient operation and top level fuel economy. New DF60A models also sport the optional Suzuki Troll Mode System.
Features
- Multi Point Sequential Electronic Fuel Injection
- Suzuki Lean burn Control System
- Suzuki Troll Mode System
- Direct Ignition
- Suzuki Easy Start System
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Fully Transistorized Ignition
- Timing Chain
- Fresh Water Flushing System
- Power Trim and Tilt
- Tilt Limit
- Suzuki Anti-Corrosion System
| Body Color | Pearl Nebular Black or Cool White |
|---|---|
| Recommended Transom Height (inches) | L: 20 |
| Starting System | Electric |
| Weight LBS | L: 229 |
| Engine Type | DOHC 12-Valve |
| Fuel Delivery System | Multi Point Sequential Electronic Fuel Injection |
| No. Of Cylinders | 3 |
| Piston Displacement inches (cc) | 57.4 (941) |
| Bore X Stroke Inches (mm) | 2.85 x 2.99 (72.5 x 76) |
| Maximum Output HP | 60 |
| Operating Range (RPM) | 5300 - 6300 |
| Steering | Remote (Tiller Kit Optional) |
| Choke | N/A |
| Oil Pan Capacity quarts (liter) | 2.9 (2.7) |
| Ignition System | Solid State Direct Ignition |
| Alternator | 12V 19A |
| Trim Position | Power Trim and Tilt |
| Gear Ratio | 2.27:1 |
| Standard Propeller | Optional See Dealer |
| Propeller Selection | 9 - 17 |
 |  |  | |
| New outboard(s) | |||
| New rigging tube and connections | |||
| New propeller | |||
| Water separator / fuel filter | |||
| Engine oil | |||
| Miscellaneous rigging supplies | |||
| New controls | |||
| New harness | |||
| New standard gauges | |||
| New steering | |||
| New upgraded gauges | |||
| New battery switch |
