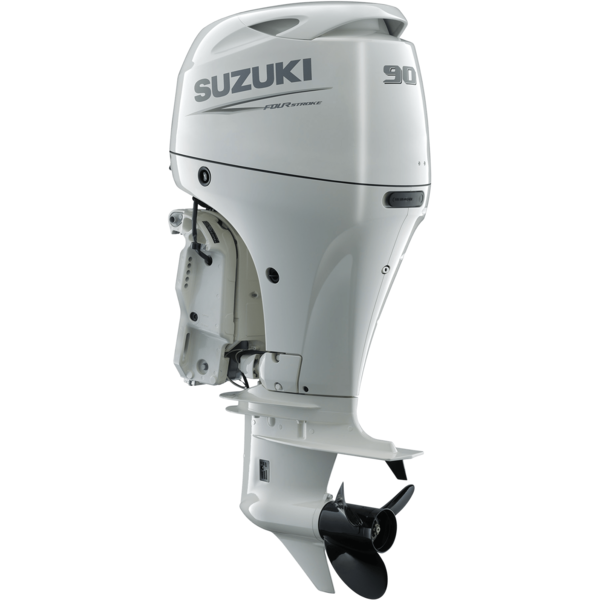

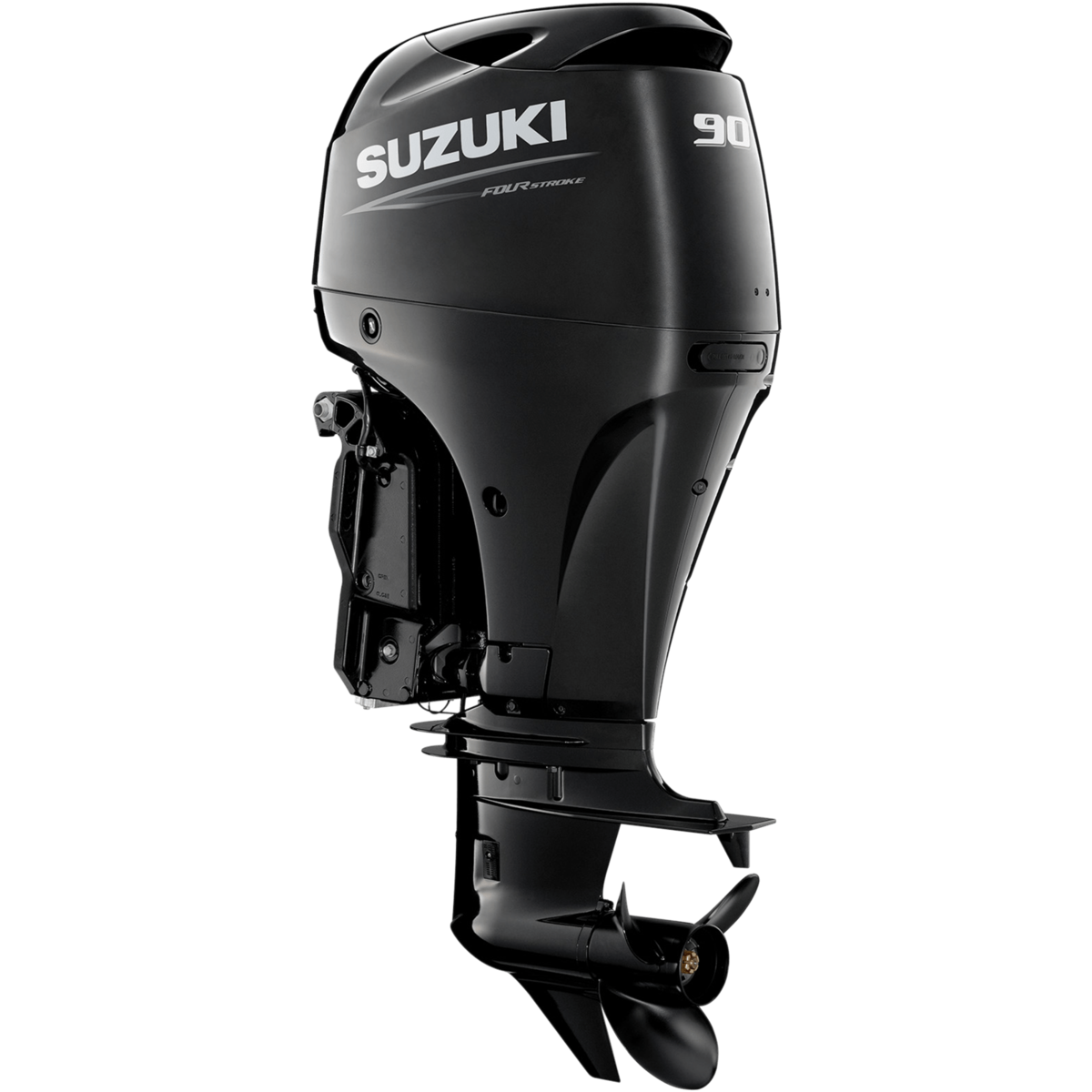

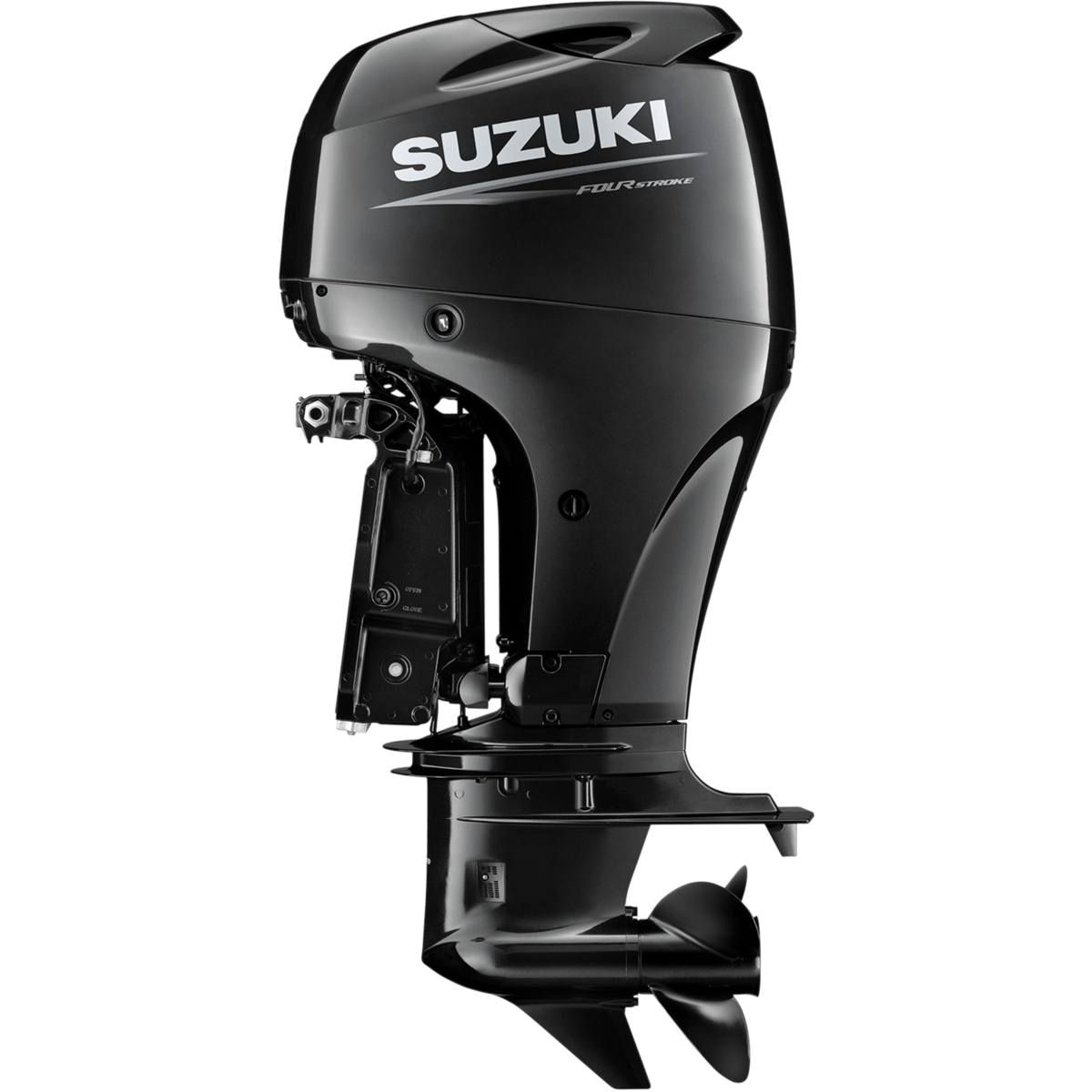

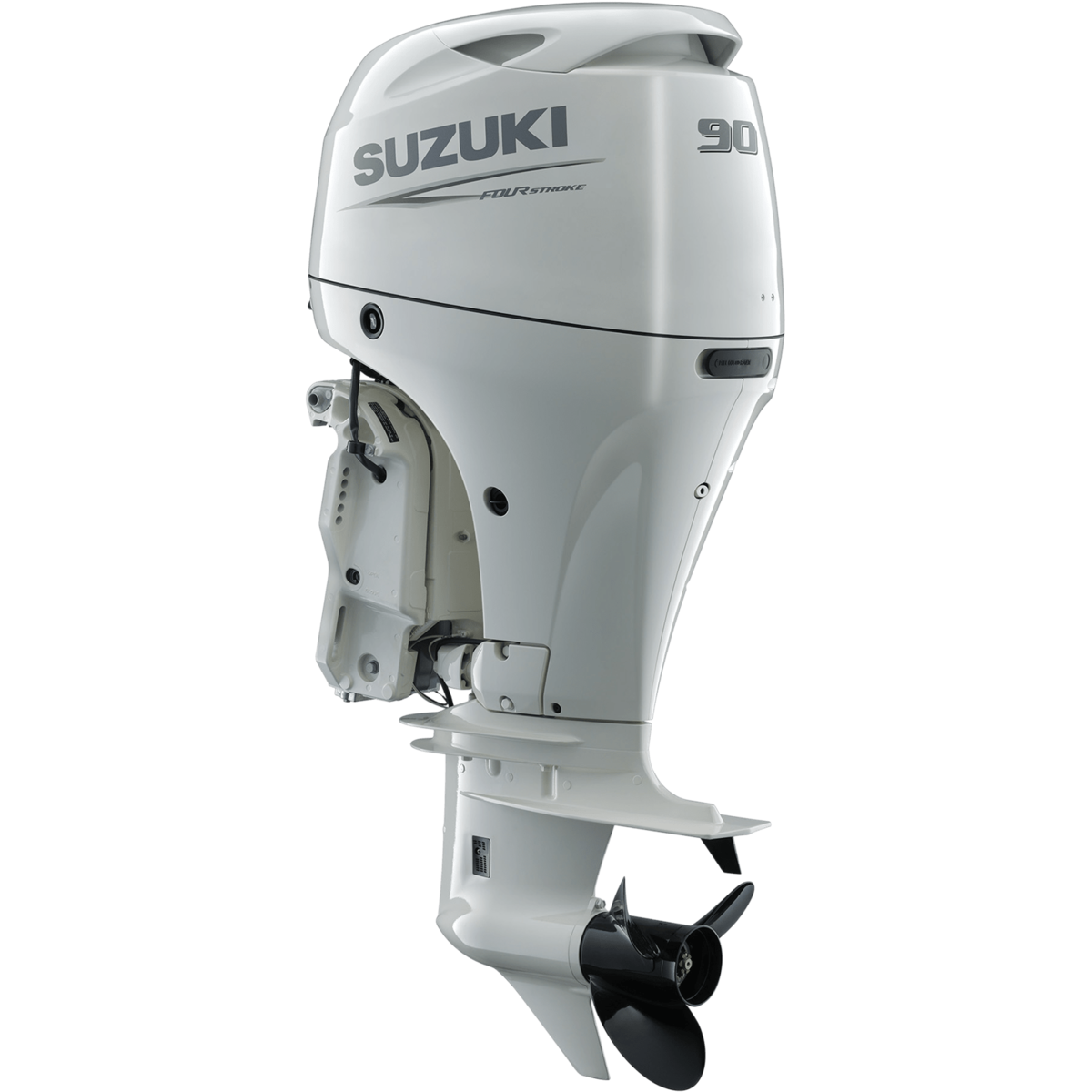

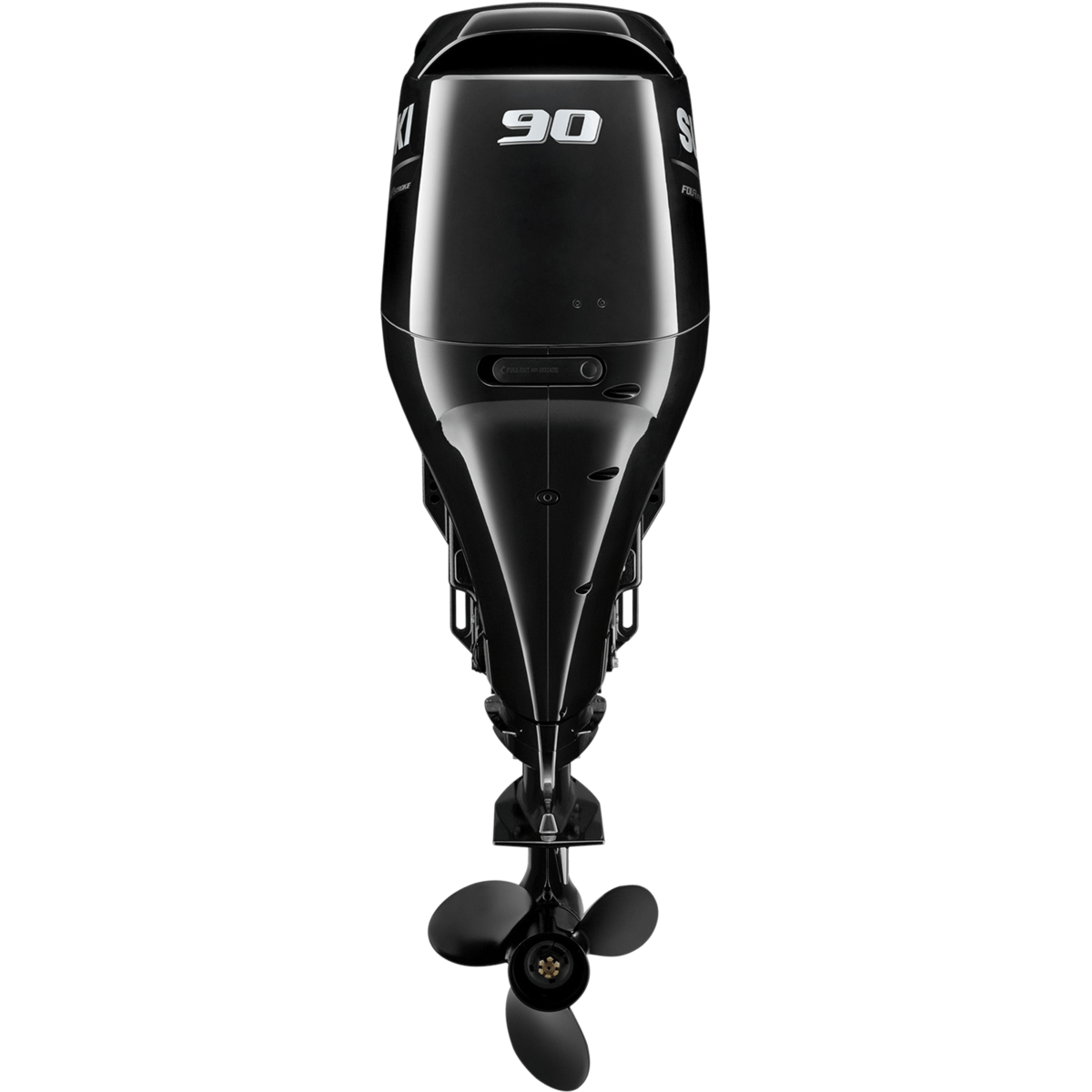

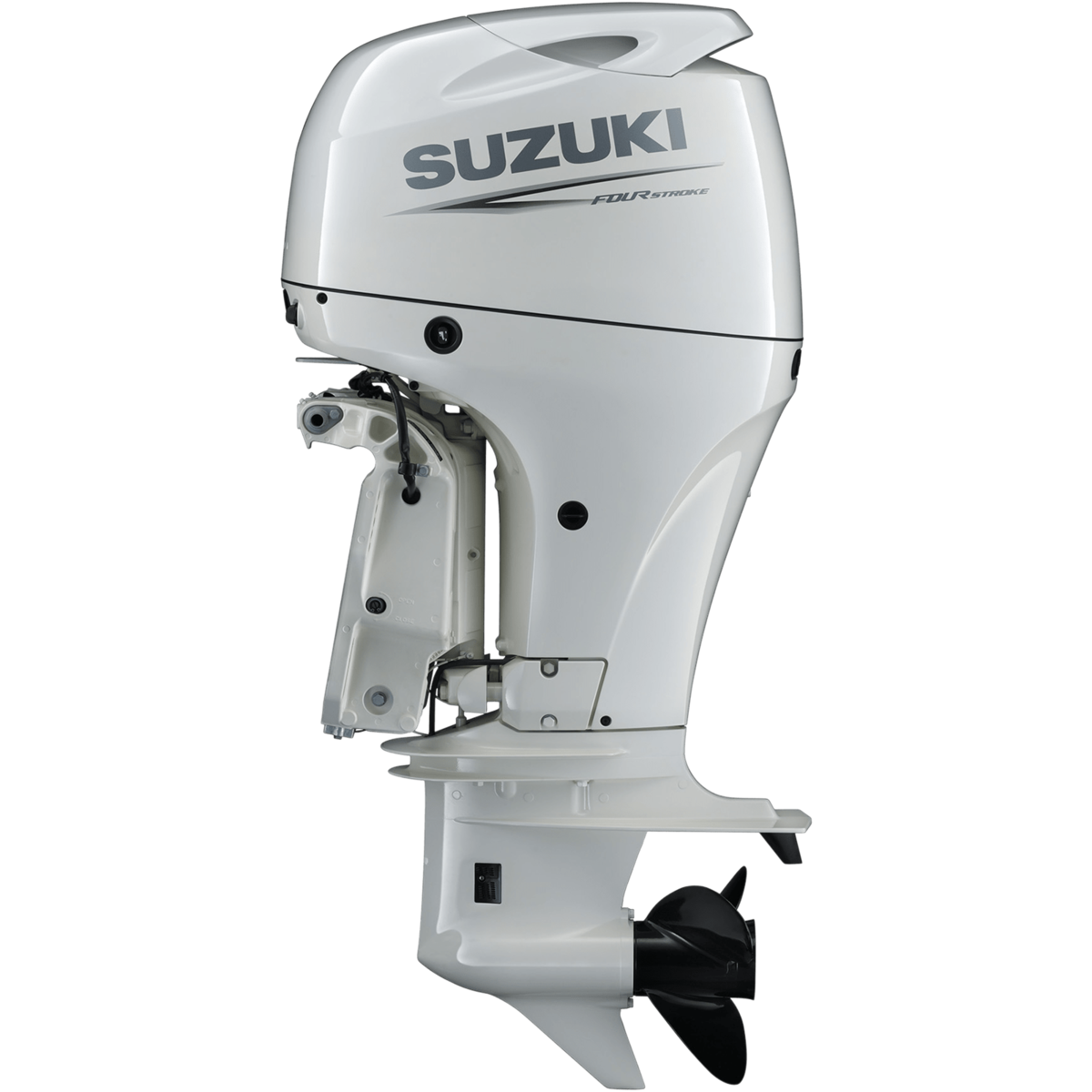

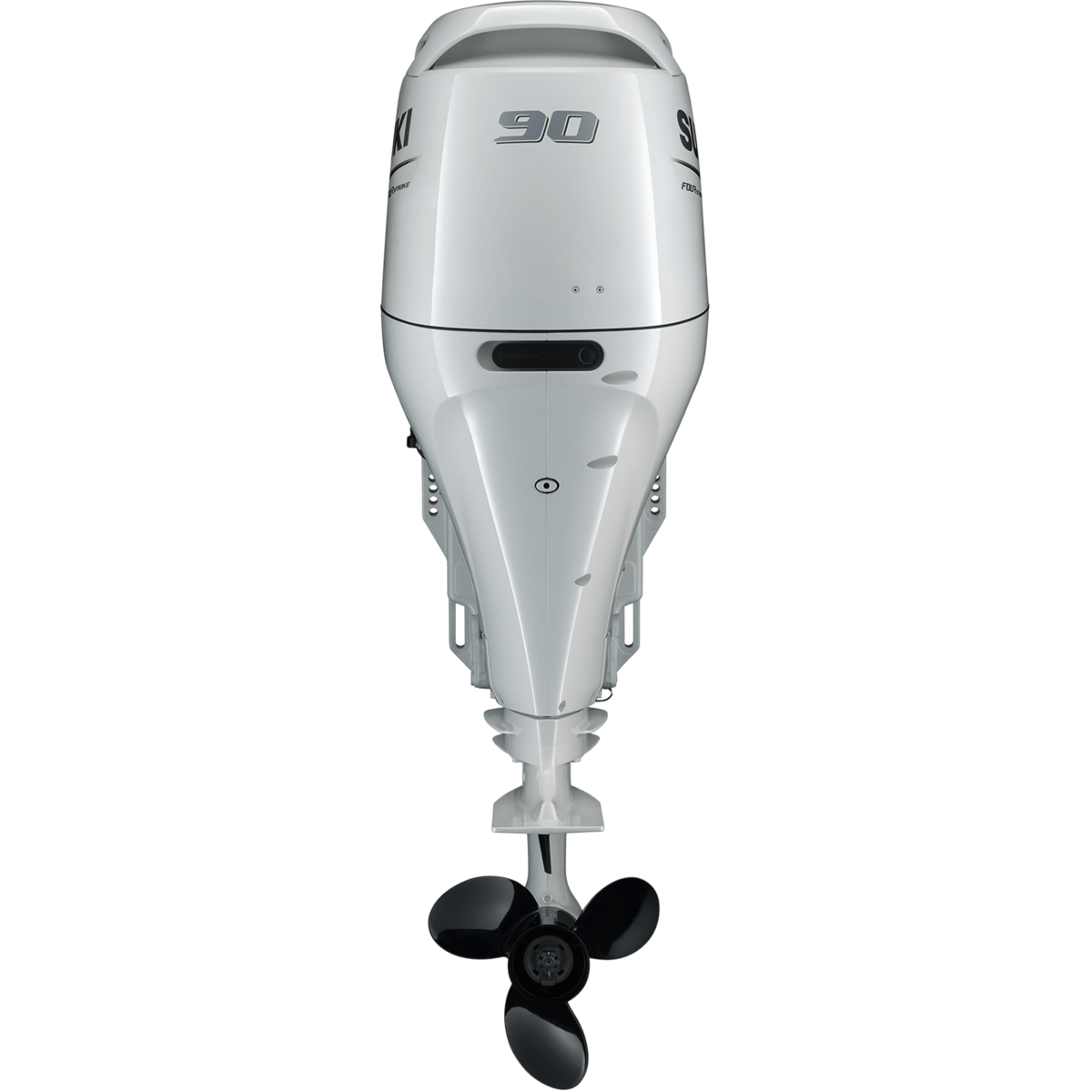

DF90A
Twelve years after starting the four stroke revolution with its award winning DF70 and DF60 outboards, Suzuki is reinventing the category again with the DF90A. The first of Suzuki's new generation four-strokes, the DF90A is a showcase of advancements and achievements – such as digital sequential electronic fuel injection, a powerful 2.59:1final drive ratio, zero-maintenance self-adjusting time chain and don’t forget the Suzuki Lean Burn Control System. New DF90A models also sport the optional Suzuki Troll Mode System.
Features
- Multi Point Sequential Electronic Fuel Injection
- Suzuki Lean burn Control System
- Suzuki Troll Mode System
- Two-Stage Gear Reduction System
- Offset Driveshaft
- Direct Ignition
- Suzuki Easy Start System
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Fully Transistorized Ignition
- Timing Chain
- Fresh Water Flushing System
- Power Trim and Tilt
- Tilt Limit
- Streamlined Gear Case
- Speedometer Pickup of Gear Case
- Suzuki Anti-Corrosion System
SPECS: | FIRST EDITION |
---|---|
Body Color | Pearl Nebular Black or Cool White |
Recommended Transom Height (inches) | L: 20 X: 25 |
Starting System | Electric |
Weight LBS | L: 343 X: 352 |
Engine Type | DOHC 16-Valve |
Fuel Delivery System | Multi Point Sequential Electronic Fuel Injection |
No. Of Cylinders | 4 |
Piston Displacement inches (cc) | 91.7 (1502) |
Bore X Stroke Inches (mm) | 3.00 x 3.30 (75 x 85) |
Maximum Output HP | 90 |
Operating Range (RPM) | 5300 - 6300 |
Steering | Remote (Tiller Kit Optional) |
Choke | N/A |
Oil Pan Capacity quarts (liter) | 4.2 (4.0) |
Ignition System | Solid State Direct Ignition |
Alternator | 12V 27A |
Trim Position | Power Trim and Tilt |
Gear Ratio | 2.59:1 |
Standard Propeller | Optional See Dealer |
Propeller Selection | 13 - 23 |
