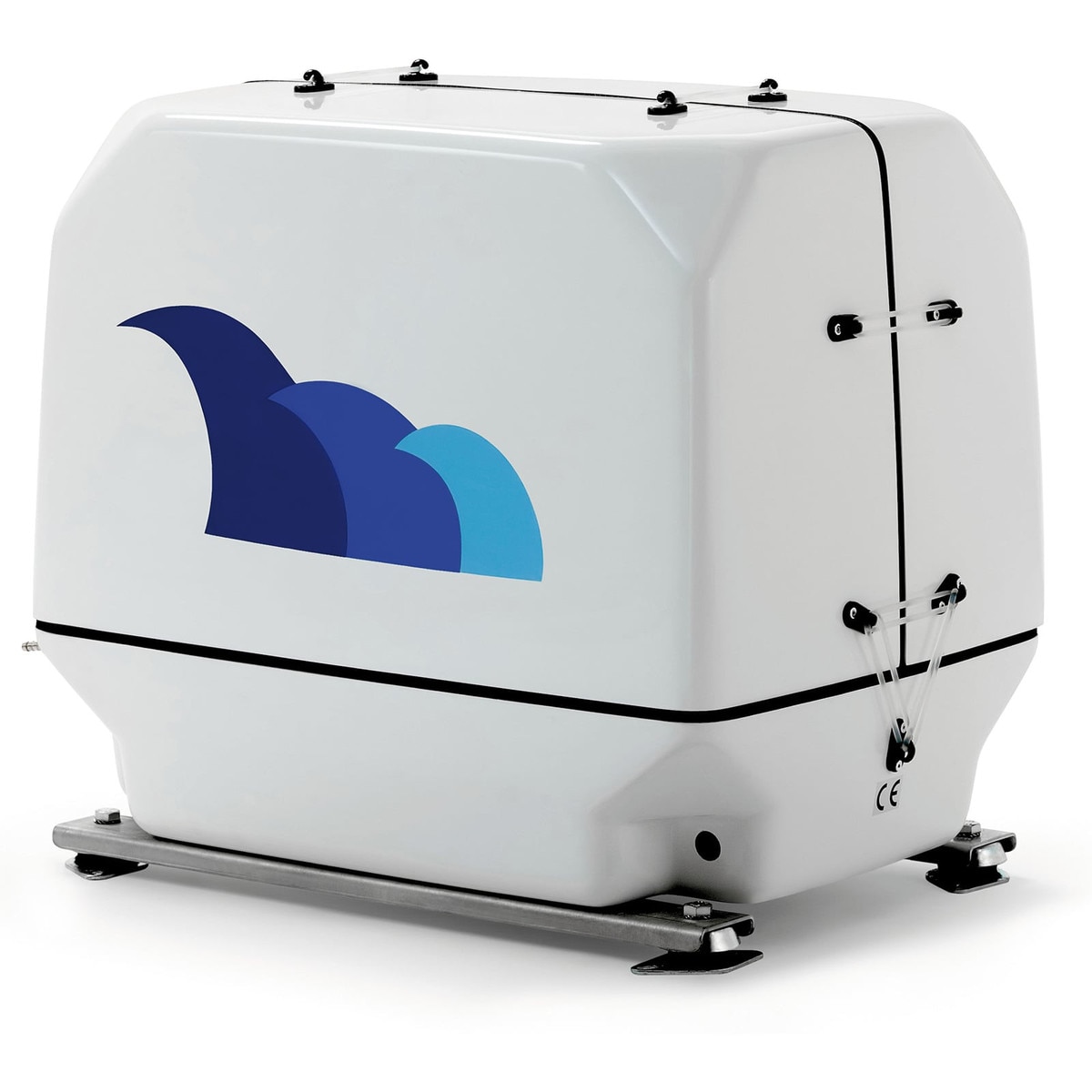

PAGURO 9500
PAGURO RANGE: FLEXIBLE AND SILENT PERFORMANCE
VTE’s marine generator sets are the market benchmark for the optimal ratio of performance, quietness and small size. The PAGURO range is very wide to satisfy every need for power and performance, for sailboats and motorboats.
SILENT
Both the engine and the alternator of the Paguro generators are water-cooled: as there is no need for ventilation for cooling, the noise is drastically reduced. In addition, the outer shell has a single small opening for the entrance of the combustion air with a labyrinth path that prevents the noise from coming out; the outer casing is made of reinforced multilayer fiberglass and covered in high density neoprene for maximum sound insulation.
LIGHTWEIGHT AND COMPACT
Each product of the Paguro range is designed and built with ad hoc components to reduce the overall dimensions and exploit the empty spaces inside. Thanks to the VTE technology, each Paguro generator is the compact with the same energy performance with only 462 Lbs of weight and ultra compact dimensions (L38.8xW22.8xH25.1], produces 14 kW continuous.
SAFE
The VTE generators are equipped with warning lights and a load indicator with a luminous column with LED for an immediate evaluation of the power usage. The panel will stop the unit automatically in case of low oil pressure or overtemperature.
| PAGURO 4000 | PAGURO 7500 | PAGURO 9500 | ||
| Generator manufacturer | VTE Srl - Italy | |||
| Alternator type | Synchronous, brushless, capacitor regulation | |||
| Continuous electrical power | 3.2 KW | 7 KW (50 Hz) 7 KW (60 Hz) | 9 KW (50 Hz) 9 KW (60 Hz) | |
| Voltage output | Single phase 115 (60 Hz) OR 230 | Single-phase 230 V (50 Hz), 115 (60 Hz) OR 115/230 | ||
| Peak Current | 80 A | 72 A (50 Hz) / 144 A (60 Hz) | 102 A (50 Hz) / 204 A (60 Hz) | |
| Continuous Duty Amp | 28 AMP | 56 (50 Hz) 60 (60 Hz) | 78 (50 Hz) 78 (60 Hz) | |
| Alternator cooling system | Water cooled through a water jacket made in stainless steel AISI 316 L | |||
| Engine manufacturer and type | Yanmar L70 | Yanmar 3TNV80F | Yanmar 3TNV80F | |
| Cylinders nr. | 1 | 3 | 3 | |
| Engine speed | 3600 | 1500 (50 Hz) / 1800 (60 Hz) giri – rpm – U/min – tr/min | ||
| Starting and shut-off system | 12 V electrical starter, remote controlled | |||
| Specific fuel consumption | 0.35 lt/KW/h | |||
| Engine cooling system | Heat exchanger water/air stainless steel | Fresh water with heat exchanger | ||
| Cooling pump | Self priming | |||
| Alternator | Synchronous, brushless, capacitor regulation Water-cooled through a water jacket made in stainless steel AISI 316 L Battery charger for dedicated starting battery (12V 8A0 Insulation class C | |||
| Engine | Diesel fueled 1 cylinder Cooling circuit via heat exchanger Four cycle | Diesel fueled 3 cylinders Fresh water cooling circuit Via heat exchanger | ||
| Remote control | Remote control with LCD display Load indicator, hour meter, frequency / engine speed Automatic shut down for low oil pressure and/or high temperature With 15 mt of cable and quick connector Automatic start (optional) | |||
| Soundproof capsule | Soundproof capsule made from multi layer GRP, a high density sound absorbing material and heat insulating foam lining Split into two halves, the capsule lids enable ease of access for servicing, even in tight spaces Dual anti-vibration system based on 4 internal shock absorbers and 4 firm captive engine mounts outside the capsule | |||
| Dimensions L x W x H (in) | 24 x 18.25 x 22 | 31.4 x 21.2 x 25.6 | 32.6 x 21.2 x 25.6 | |
| Weight (capsule included) lbs | 209 | 474 | 507 | |
| Noise level dB (A) 7mt | 53 dB (A) | 49 dB (A) | ||
