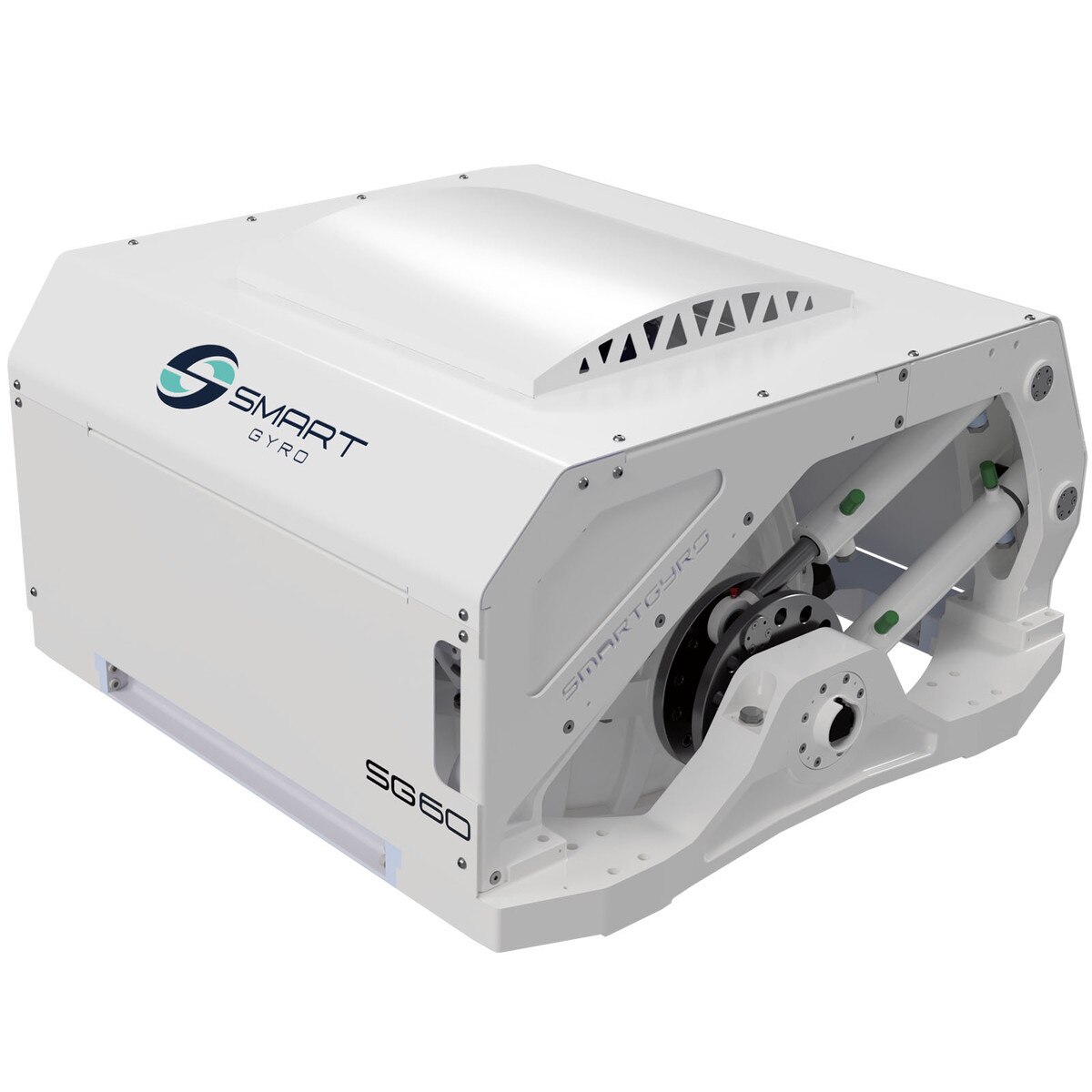

SG60
Smartgyro SG60 is the gyro stabilizer of choice for boats from 55-65 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.
Target Boat | 55 – 65’ or up to 50 tons |
Anti-Rolling Torque | 25.000 Nm at max. rated speed |
Envelope Dimensions | 1.08 x 1.11 x 0.87 m [42.4 x 43.7 x 34.3 in] |
Maximum Rated Speed | 5.500 RPM |
Input Voltage (AC) | 220V nominal, 50/60 Hz, single phase |
Weight | 910 kg [2006 lbs] |
Angular Momentum | 12.500 Nms at max. rated speed |
Input Voltage (DC) | 24 Vdc |
