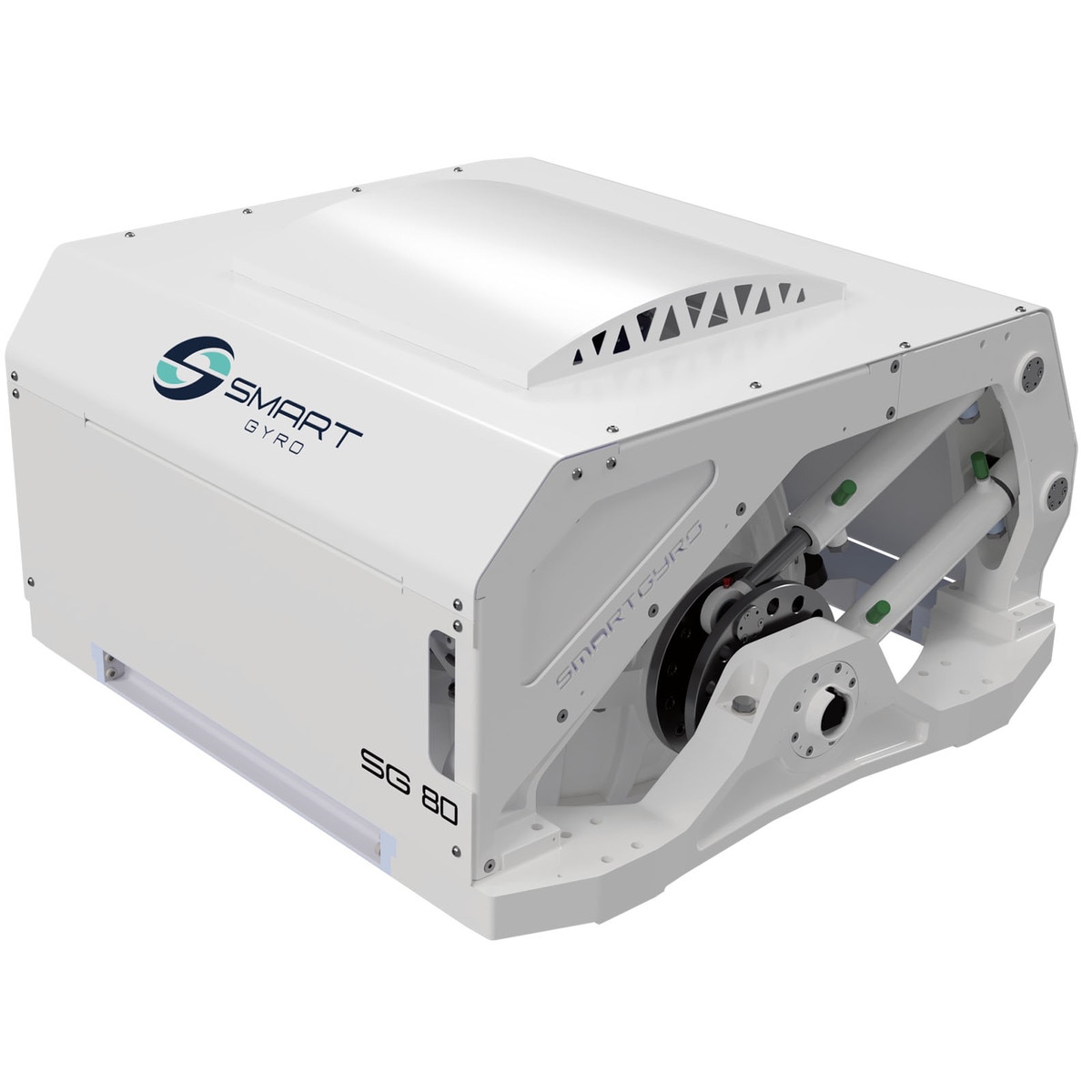

SG80
Smartgyro SG80 is the gyro stabilizer of choice for boats from 60-70 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.
| Target Boat | 60 – 70’ or up to 60 tons |
| Anti-Rolling Torque | 30.100 Nm at max. rated speed |
| Envelope Dimensions | 1.08 x 1.11 x 0.87 m [42.4 x 43.7 x 34.3 in] |
| Maximum Rated Speed | 5.500 RPM |
| Input Voltage (AC) | 220V nominal, 50/60 Hz, single phase |
| Weight | 980 kg [2160 lbs] |
| Angular Momentum | 15.400 Nms at max. rated speed |
| Input Voltage (DC) | 24 Vdc |
