MasPower Portable Series
MasPower Portable Series

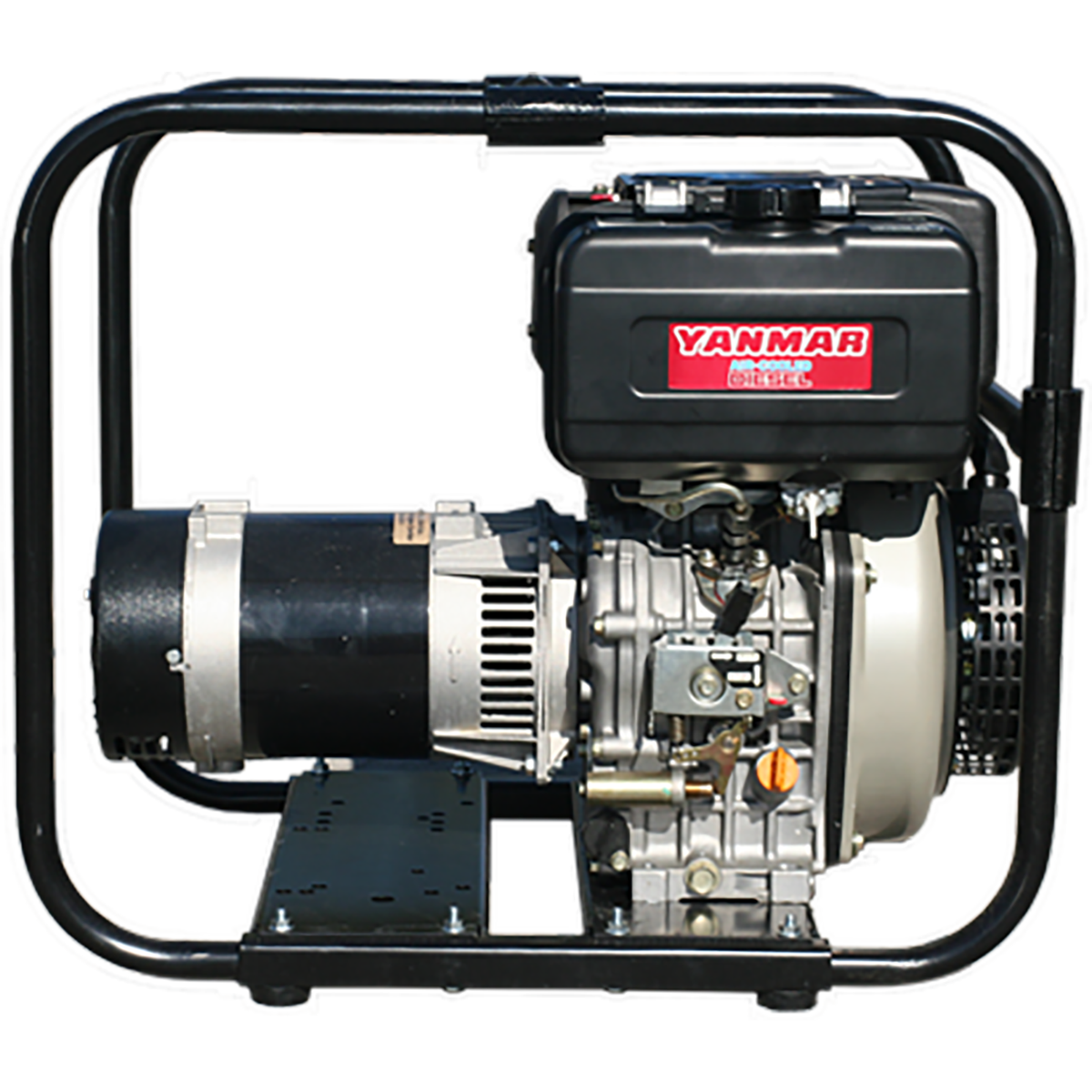

Air Cooled MP Diesel Generator - 2.7 - 5.5kW
Features
- Standard with powder coated frame
- Superior durability
- Compression release
Options
- Electric start with key switch
- Low oil shutdown on electric start models
- 16" pneumatic wheel kit
- Larger fuel tank for longer run capacity
| Generator Spec. | MP2700 | MP3700 | MP5500 | |
|---|---|---|---|---|
| Model | Open Type | |||
| Type | Brushless | |||
| Frequency (Hz) | 60 | |||
| Output (AC) | Max. kW | 2.7 | 3.7 | 5.5 |
| Rated kW | 2.5 | 3.5 | 5.0 | |
| Engine Model (Yanmar) | L48V | L70V | L100V | |
| Engine Output (Max hp) | 4.7 @ 3600 | 6.7 @ 3600 | 10 @ 3600 | |
| Rated Voltage (V) | 120 | 120 / 240 | ||
| Rated Current (A) | 20.8 | 29.2 / 14.6 | 41.7 / 20.8 | |
| Voltage Control System | Capacitor Regulated | |||
| Rotation Speed (rpm) | 3600 | |||
| Number of Phases | Single phase | |||
| Number of Poles | 2 Pole | |||
| Power Factor | Unity 1.0 | |||
| Insulation Class | Class E | |||
| Bearing type | Ball bearing (seal type) | |||
| Output receptacle (AC) | V-A | (2) 120 Duplex | (1) 120 Duplex | |
| (1) 120 Twistlock | (1) 240 Twistlock | |||
| Breaker (AC) | (1) Breaker | (2) Breakers | ||
| Generator Size (LxWxH) (in) | 27x21x24 | |||
| Weight (lbs) | 141 | 181 | 243 | |
