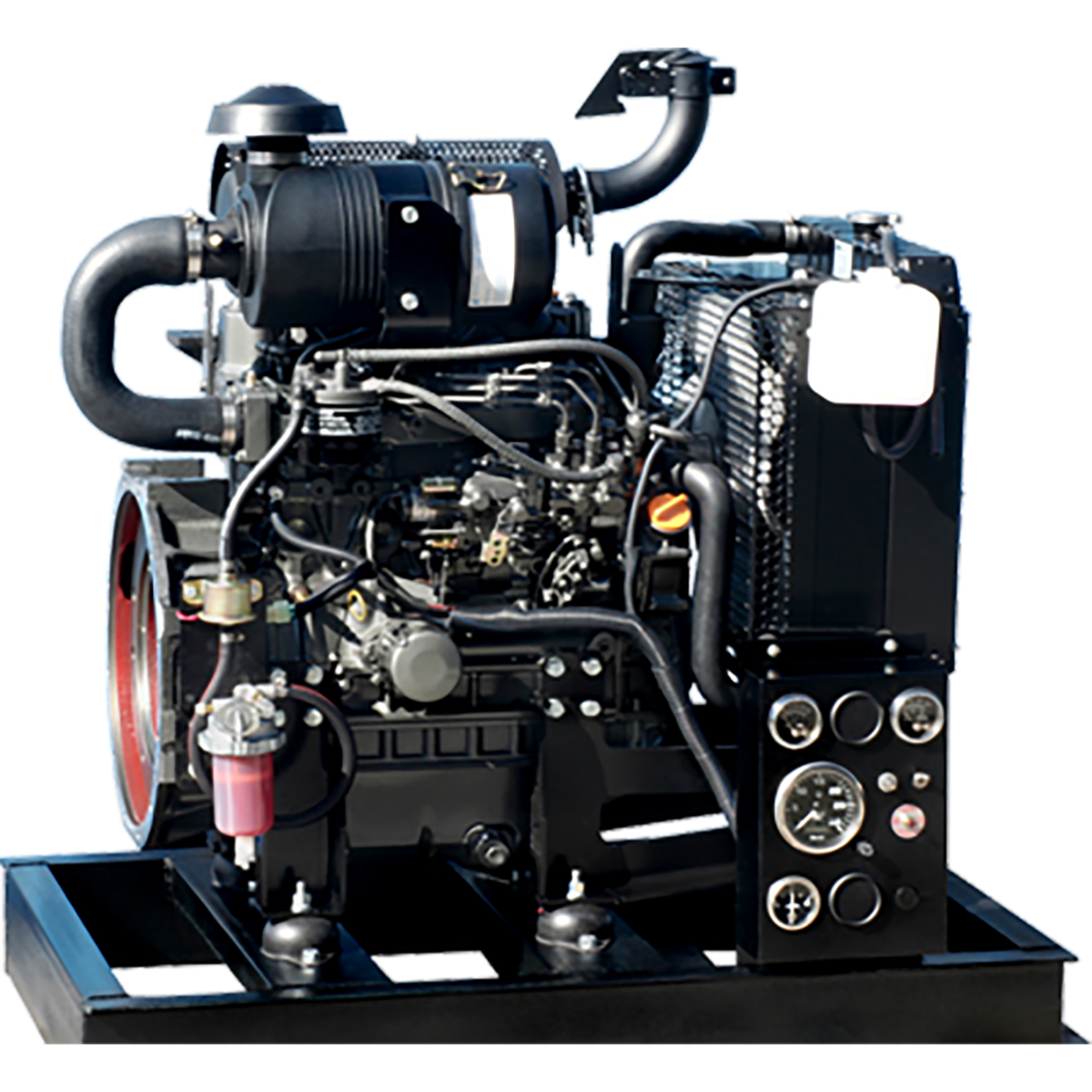

MasPower Skidded Open Power Units
Skidded Open Power Units
Enclosed YANMAR Powered Gensets
Features
YANMAR TNV Diesel Engines are heavy duty and battle hardened to power strong running job site equipment. Mechanical open power units come with mechanical Murphy instrument panels.
Features
- Electrical Instrument Panels
- Radiator
- Muffler
- Air Cleaner
- Mounting Feet
- Speed Control
Options
- Electronic Panels in NEMA 3R Boxes for the mechanical engines
- Battery
- Rack and Cables
- Oil Drain Valves
- Vibration Isolators
- PTOs
- Stub Shafts
- Hydraulic Plate Adapters
| Engine | 3TNV70 | 3TNV76 | 3TNV82A |
|---|---|---|---|
| Cylinders | 3 | ||
| Aspiration | Natural | ||
| Engine Type | Yanmar | ||
| Cooling | Radiator | ||
| Displacement (L) | .854 | 1.116 | 1.33 |
| Flw. Housing (SAE) | 5 | ||
| Flywheel | 7.5" | ||
| Governor type | Mechanical | ||
| RPM Max | 3600 | 3200 | 3000 |
| HP @ Max RPM | 21.9 | 25.0 | 30.2 |
| Net Max Torque (ft-lb/RPM) | 37.6 @ 2600 | 49.2 @ 2300 | 63.9 @ 1200 |
| Combustion Type | IDI | DI | |
| Skid | Steel | ||
| Weight | 486 | 509 | 579 |
| Size (LxWxH)(in) | 41x24x40 | 41x27x41 | |
| Engine | 3TNV88 | 3TNV84T | 4TNV88 |
|---|---|---|---|
| Cylinders | 3 | 4 | |
| Aspiration | Natural | Turbo | Natural |
| Engine Type | Yanmar | ||
| Cooling | Radiator | ||
| Displacement (L) | 1.642 | 1.496 | 2.19 |
| Flw. Housing (SAE) | 5 | 5 | 5 |
| Flywheel | 7.5" | ||
| Governor type | Mechanical | ||
| RPM Max | 3000 | 2800 | 3000 |
| HP @ Max RPM | 35.9 | 38.9 | 47.5 |
| Net Max Torque (ft-lb/RPM) | 81.8 @ 1200 | 88.1 @ 1500 | 104.1 @ 1200 |
| Combustion Type | DI | ||
| Skid | Steel | ||
| Weight | 641 | 652 | 700 |
| Size (LxWxH)(in) | 41x27x41 | ||
| Engine | 4TNV84T | 4TNV98 | 4TNV98T |
|---|---|---|---|
| Cylinders | 4 | ||
| Aspiration | Turbo | Natural | Turbo |
| Engine Type | Yanmar | ||
| Cooling | Radiator | ||
| Displacement (L) | 1.995 | 3.318 | |
| Flw. Housing (SAE) | 5 | 4 | |
| Flywheel | 7.5" | 10" | |
| Governor type | Electric | ||
| RPM Max | 3000 | 2500 | |
| HP @ Max RPM | 55.2 | 67.7 | 83.25 |
| Net Max Torque (ft-lb/RPM) | 118.2 @ 1600 | 183.7 @ 1000 | 228.4 @ 1800 |
| Combustion Type | DI | ||
| Skid | Steel | ||
| Weight | 711 | 944 | 963 |
| Size (LxWxH)(in) | 41x27x41 | 46x27.5x45 | 46x27.5x45 |
