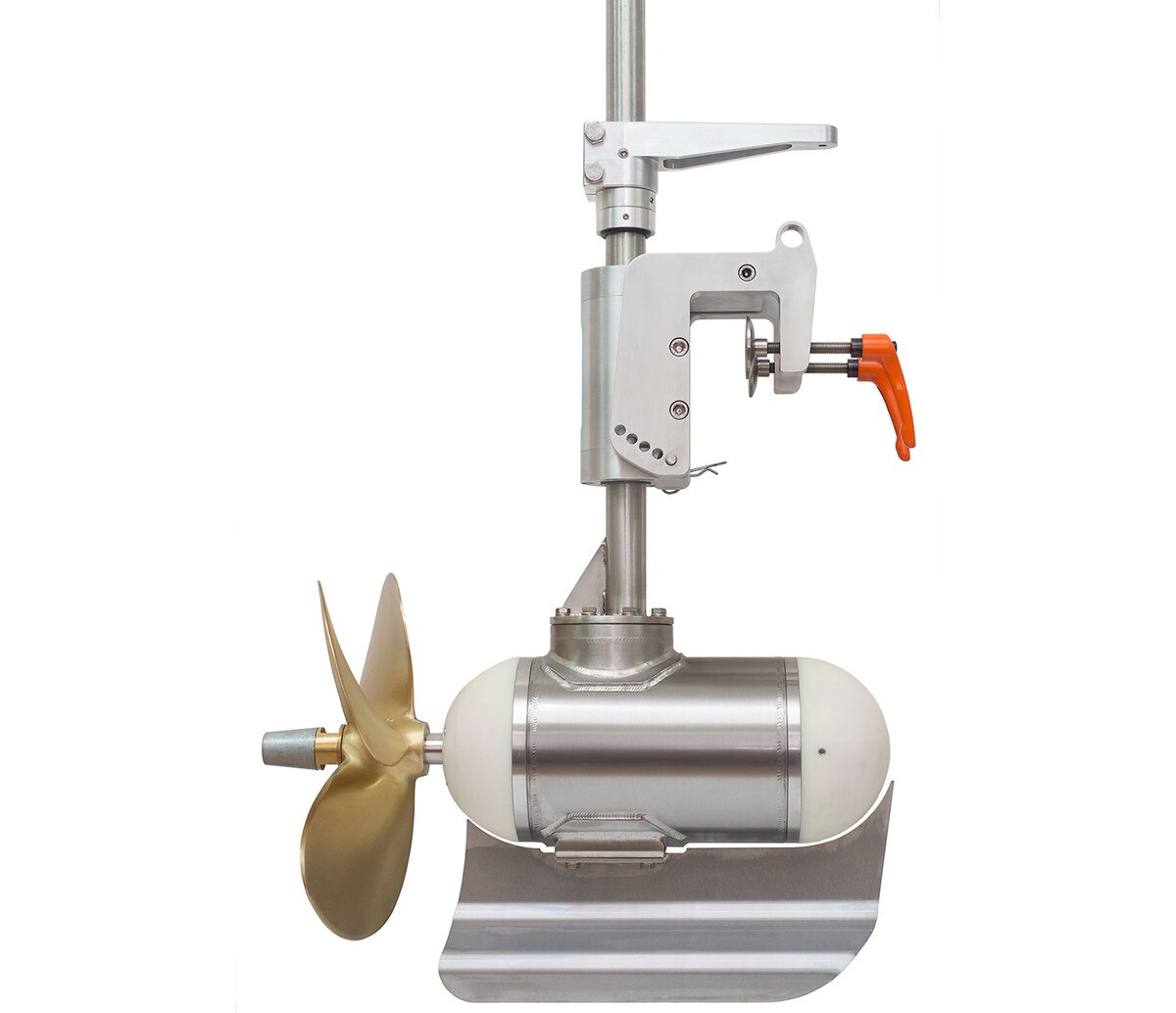

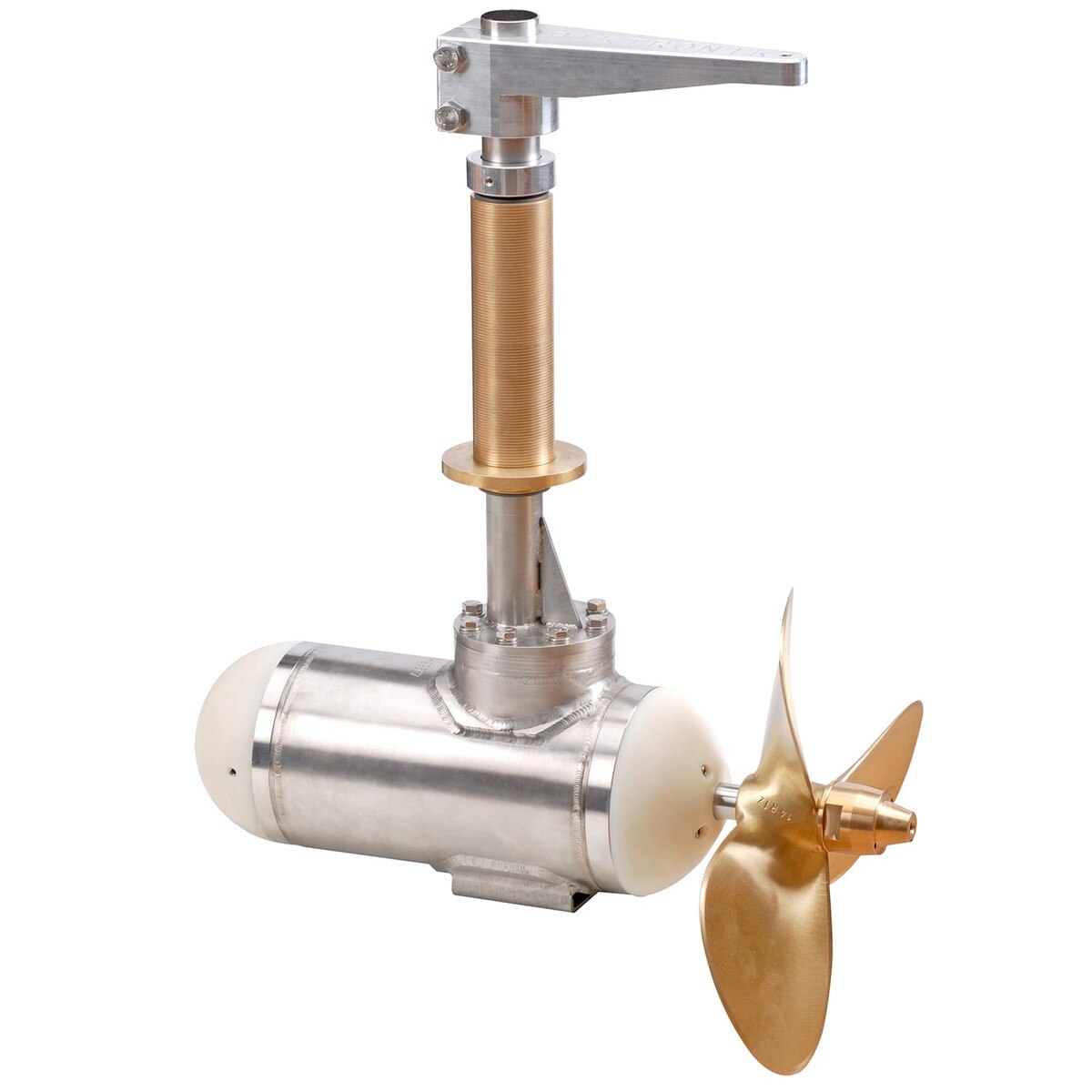

10kW submersible motor
10kW submersible motor | |
| Type: | Underwater-PMSM (3~) |
| Rated power: | 10 kW (13.6 HP) | S1 |
| Speed: | 1000 RPM |
| Voltage: | 30 V |
| Rated current: | 205 A |
| Frequency: | 100 Hz |
| Rated torque: | 95 Nm |
| Weight: | 37 kg |
10kW submersible motor | |
| Type: | Underwater-PMSM (3~) |
| Rated power: | 10 kW (13.6 HP) | S1 |
| Speed: | 1000 RPM |
| Voltage: | 30 V |
| Rated current: | 205 A |
| Frequency: | 100 Hz |
| Rated torque: | 95 Nm |
| Weight: | 37 kg |
