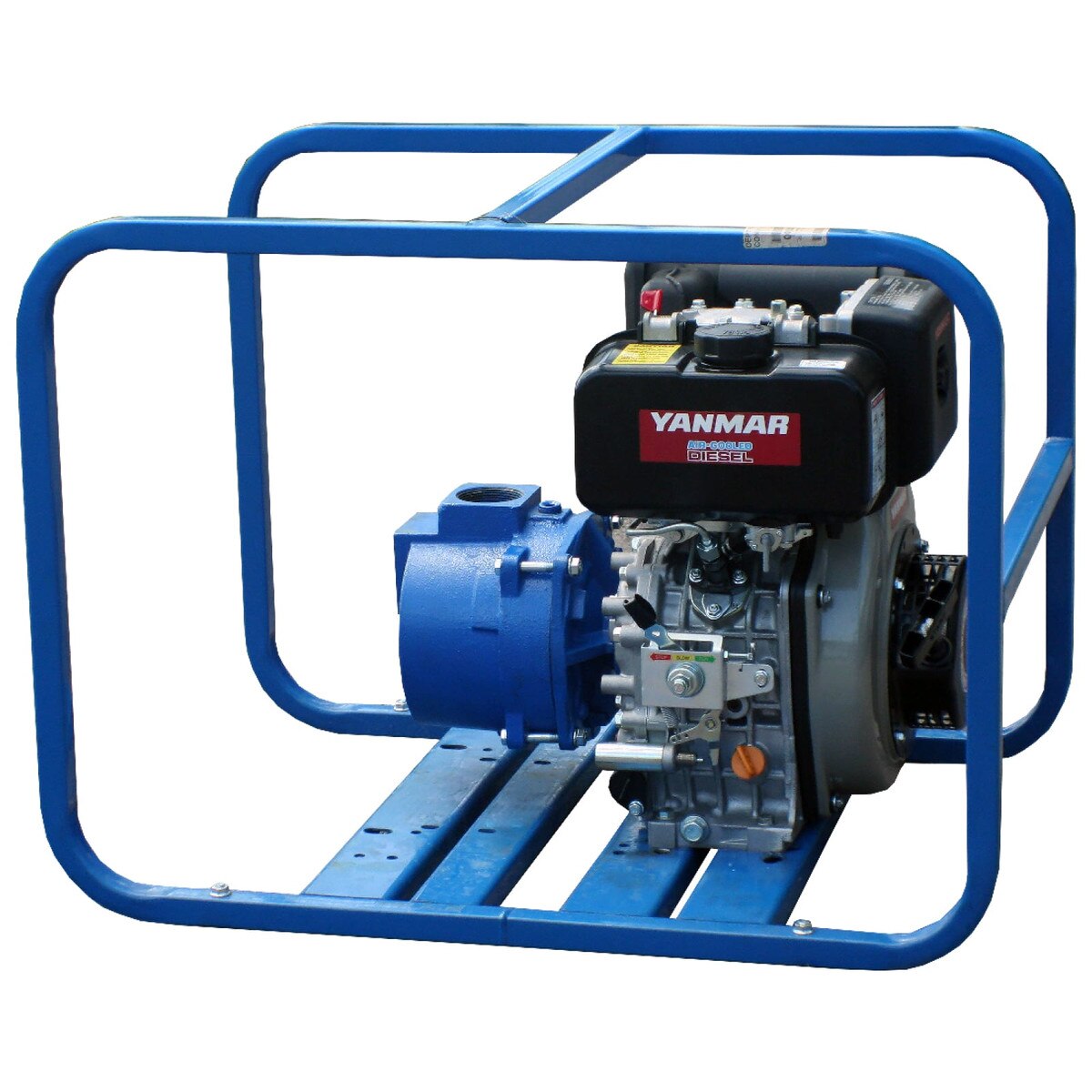

Trash Pumps
EPA Tier 4F Certified
Standard Features
- Powder-coated frame
- Auto-return decompression for efficient starting at all temperature conditions
- 2” NPT port sizes
- Cast iron construction
- Self prime up to 20 feet
- Semi, open, clog resistant impeller
- Built in check valve
- Stainless steel shaft sleeve
- Maximum working pressure 75 PSI
Options
- Cam lock fittings
- 10” solid wheel kit
- Spark arrestor
- Electric start
| Specifications | |
|---|---|
| Pump | 3168-K5 |
| Construction | Cast Iron |
| Total Head | 125' |
| Priming Lift | 20' |
| Output | 170 gpm |
| Size | 2"x 2" (suction & discharge) |
| Pressure | 75 psi |
| Engine | |
| Yanmar Model | L70W6TF1F8AAME |
| Max Output | 6.7 hp @ 3600 rpm |
| Operation Capacity | Approximately 3-4 hours |
| Package | |
| Weight | 199 lbs |
| L x W x H | 31"x 22.5"x 23.6" |
