3TNV88C-DYEM 35.1HP

35.1 hp of Final Tier 4 Power in a Compact Three-Cylinder

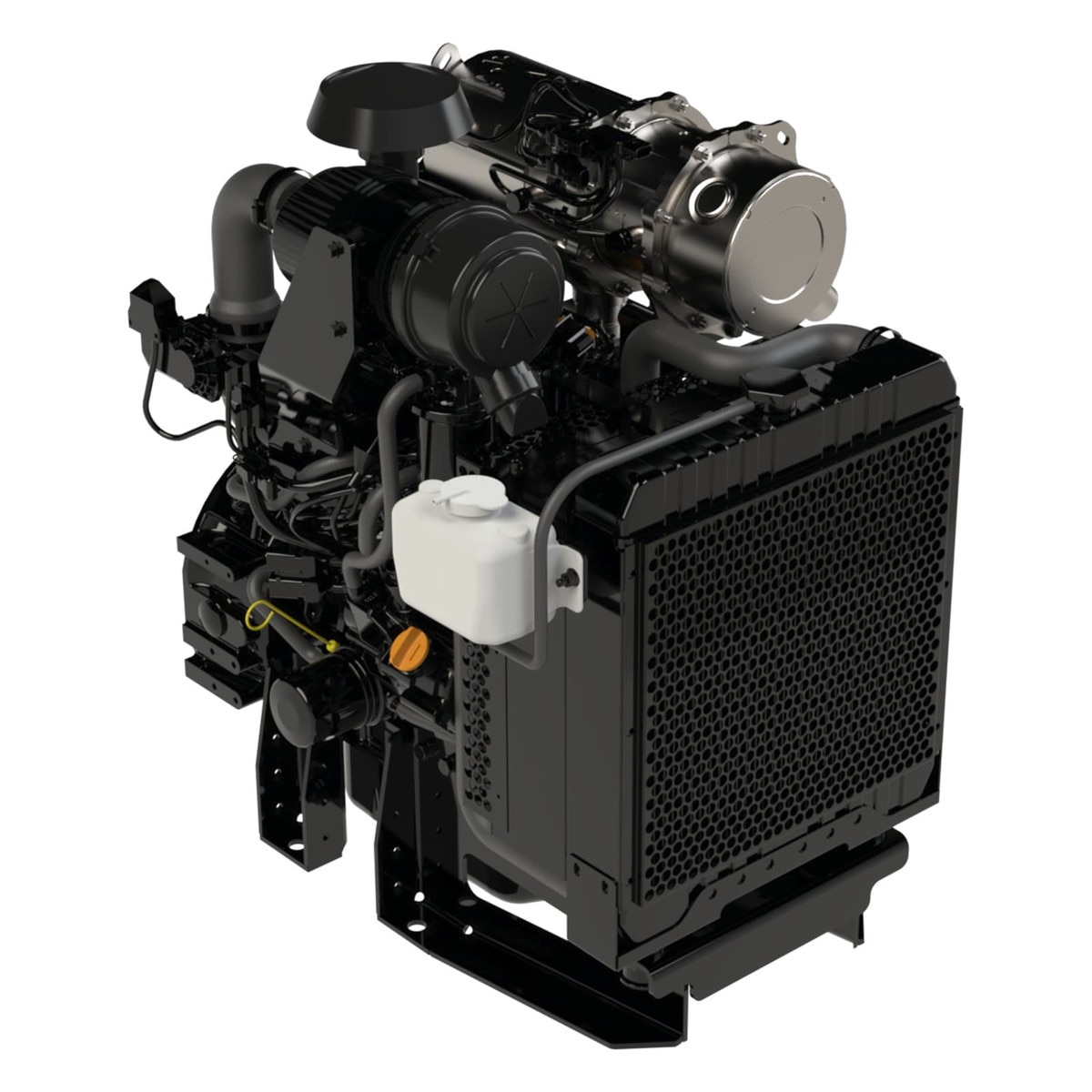

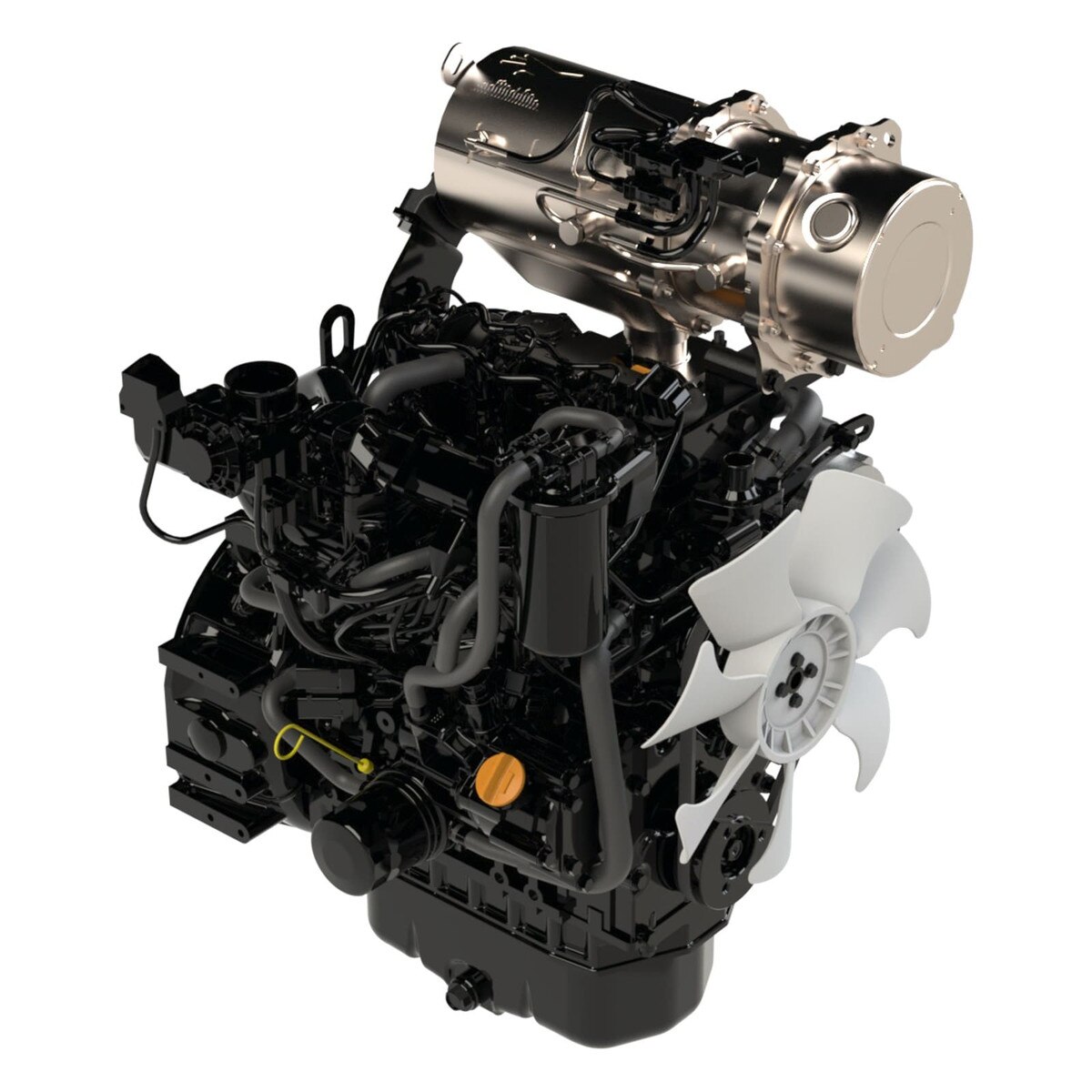

The YANMAR 3TNV88C-DYEM is a 1.64 L, three-cylinder, water-cooled industrial diesel rated at 35.1 hp / 26.2 kW gross power at 3000 rpm. It belongs to YANMAR's TNV series, the Total New Value line of two-, three- and four-cylinder in-line, four-cycle water-cooled engines that delivers big power from a small package and installs easily in a wide variety of equipment. YANMAR builds its Final Tier 4 engines around three points: reliability, Final Tier 4 and EU Stage IIIB compliance, and better fuel efficiency with fewer emissions.

Now even more reliable. The 3TNV88C-DYEM builds on the legendary reliability of the YANMAR TNV line, with a focus on vibration reduction and high-strength materials, for an engine capable of handling the most demanding applications.

Final Tier 4 and EU Stage IIIB compliant. Building on the proven TNV design, YANMAR achieves superior exhaust emissions with common rail direct injection, exhaust gas recirculation, precise ECU engine control and a diesel particulate filter. The 3TNV88C-DYEM complies with EPA Tier 4 and EU Stage IIIB exhaust emissions regulations.

Better fuel efficiency, fewer emissions. YANMAR refines the combustion process for more precise fuel delivery and control, building on its reputation for superior starting characteristics. The result is reduced emissions, improved performance over a wide range of applications and increased fuel economy.

• Reliable: vibration reduction and high-strength materials for demanding applications
• Compliant: EPA Tier 4 and EU Stage IIIB, using EGR, a diesel particulate filter and ECU-controlled common-rail injection
• Fuel efficient: 35.1 hp / 26.2 kW at 3000 rpm with precise common-rail fuel delivery
• Compact: 24.1 in x 21.9 in x 34.2 in with fan, approx. 417 lb dry weight
