4TNV98C-NYEM 69.3HP

69.3 hp of Final Tier 4 Power in a Compact Four-Cylinder

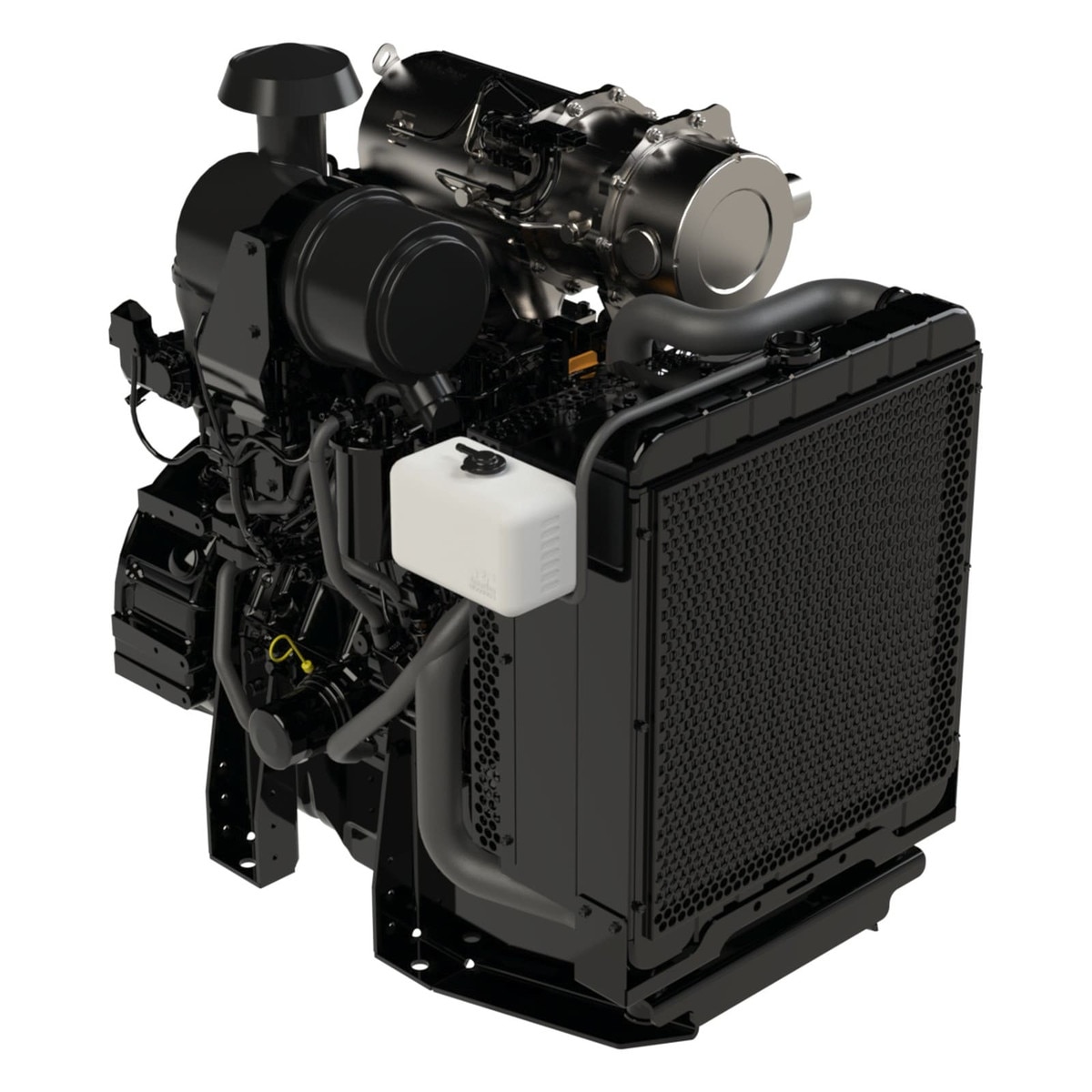

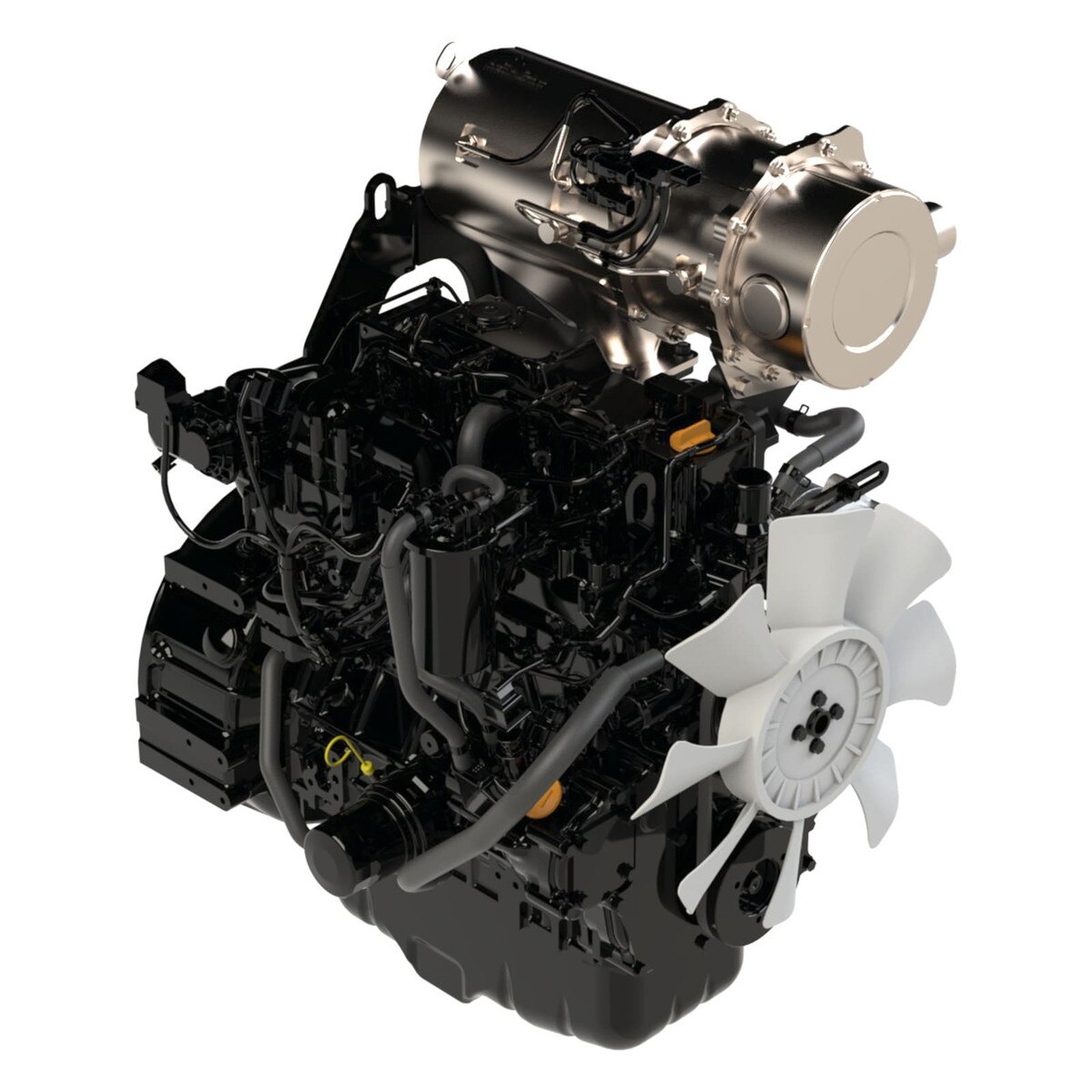

The YANMAR 4TNV98C-NYEM is a 3.32 L, four-cylinder, water-cooled industrial diesel rated at 69.3 hp / 51.7 kW gross power at 2500 rpm. It belongs to YANMAR's TNV series, the Total New Value line of two-, three- and four-cylinder in-line, four-cycle water-cooled engines that delivers big power from a small package and installs easily in a wide variety of equipment. YANMAR builds its Final Tier 4 engines around four points: reliability, Final Tier 4 and EU Stage V compliance, better fuel efficiency with fewer emissions, and advanced proven technology.

Now even more reliable. The 4TNV98C-NYEM builds on the legendary reliability of the YANMAR TNV line, with a focus on vibration reduction and high-strength materials, for an engine capable of handling the most demanding applications.

Final Tier 4 and EU Stage V compliant. Common rail direct injection, exhaust gas recirculation, precise ECU engine control and a diesel particulate filter give superior exhaust emissions. The 4TNV98C-NYEM complies with EPA Tier 4 Final and EU Stage V, so one platform serves highly regulated sales regions.

Better fuel efficiency, fewer emissions. YANMAR refines the combustion process for more precise fuel delivery and control, building on its reputation for superior starting characteristics. The result is reduced emissions, improved performance over a wide range of applications and increased fuel economy.

Advanced, proven technology. YANMAR's automatic DPF regeneration means no down time or out-of-service time for cleaning or servicing filters. Where other engines use mass air flow sensors, YANMAR uses more reliable pressure and temperature sensors for DPF monitoring and EGR control, and a diesel oxidation catalyst and intake throttle valve complete the system.

• Reliable: vibration reduction and high-strength materials for demanding applications
• Compliant: EPA Tier 4 Final and EU Stage V on one platform
• Fuel efficient: 69.3 hp / 51.7 kW at 2500 rpm with precise common-rail fuel delivery
• Clean: EGR, DOC and DPF with automatic regeneration and no service down time
• Robust: pressure and temperature sensors for DPF monitoring and EGR control
• Compact: 30.9 in x 25.2 in x 38.9 in with fan, approx. 637 lb dry weight
