Yanmar Diesel Pump

(0) No Reviews yet
$0.00
SKU: Yanmar Diesel Pump

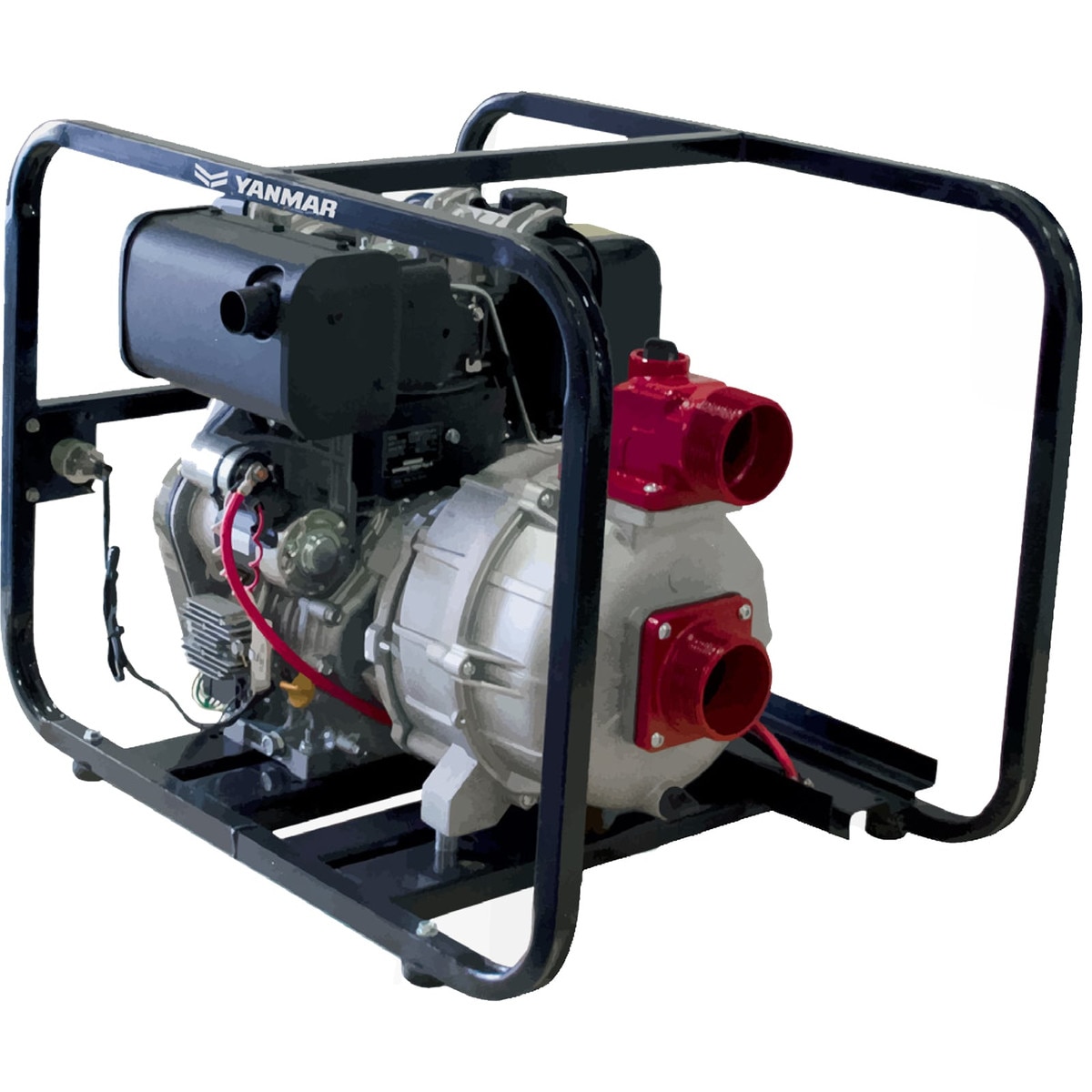

YANMAR Diesel powered, portable, high volume, self priming trash pumps come standard with a cast iron impeller to resist abrasion. They feature one tool serviceability for easy clean out. All pumps feature an aluminum housing, cast iron wearparts, built in check valve, suction strainer and painted heavy duty steel roll frame. The pumps also feature heavy duty cast iron flanges with male NPT threads. The flanges can be rotated in 90 degree increments and come with an easy access fill plug on the discharge.

Features

  • Cast aluminum with cast iron wear parts
  • Silicon carbide / viton mechanical seal
  • EPDM / EPR O-Rings
  • 2”, 3”, or 4” removable male NPT suction
  • and discharge ports
  • Discharge rotates in 90o increments
  • Easy clean out with one tool serviceability
  • Maximum solids handling up to 1-1/4”
  • Maximum flow up to 460 GPM
  • Maximum head up to 110 ft
  • Self priming to 26 ft
  • Optional Wheel Kit and Hose Kit available
  • Cast iron impeller
  • One tool pump serviceability
  • Silicon carbide mechanical seal with graphite impregnated
  • Seat and viton elastomers
  • Heavy duty steel roll frame and strainer included
  • Built in epdm/epr check valve
  • Removable / replaceable cast iron suction / discharge ports
  • Discharge port rotates in 90º increments
  • Vibration dampening feet
  • Maximum fluid temperature of 180º F

Fuel Curves



ModelYDP20TW-E4YDP20TW-4YDP30TW-E4YDP30TW-4YDP30TWHD-E4YDP40TW-E4
Engine FamilyL70W
RegulationFINAL TIER 4
Cylinders1
Bore x Stroke (mm)78 X 6786 X 75
Displacement (L / IN3)0.320 / 19.50.435 / 26.5
Combustion TypeDirect Injection
AspirationNatural
Gross Intermittent Power (kw)4.86.8
Rated Speed3600
Starting SystemElectric / RecoilRecoilElectric / RecoilRecoilElectric / RecoilElectric / Recoil
Governor TypeMechanical
Pump Max Flow Rate (lpm / gpm)950 / 2501290 / 3401510 / 4001740 / 460
Pump Max Lifting Head (m/ft)34 / 11027 / 9034 / 11029 / 95
Length (in / mm)31 / 787.4
Width (in / mm)22.5 / 571.5
Height (in / mm)23.6 / 599.4
